Using the 6000 Series Meter: Channel Assignment
PH6000, PC6000, PH6500, CON6000, DO6000, PC6500 and PCD6500 meters
Technology Made Easy ...
The 6000 series meters features up to five channels depending on the models you have
purchased.
●
PH6000 – Channel 1/3 (pH,mV / pH FET)
●
DO6000 – Channel 4 (DO,BOD,OUR,SOUR)
●
PC6000 – Channel 1/3/5 (pH,mV, / pH FET /
Conductivity,Resistivity,TDS,Salinity)
●
PC6500 – Channel 1/2/3/5 (pH,mV,ion / pH FET /
Conductivity,Resistivity,TDS,Salinity)
●
PH6500 – Channel 1/2/3 (pH,mV,ion / pH FET)
●
PCD6500 – Channel 1/2/3/4/5 (pH,mV,ion / pH FET /
DO,BOD,OUR,SOUR /Conductivity,Resistivity,TDS,Salinity)
●
CON6000 – Channel 5 (Conductivity,Resistivity,TDS,Salinity)
Assigning the channels
1. Touch the Mode button on the Measure screen.
2. Choose the desired channels for your application.
• PH6000 - Touch the input channel (Ch1 and/or Ch3) on the back panel image to
select the parameter assigned to that channel. Touch the appropriate parameter icon
to assign an input to each desired channel.
• CON6000 and DO6000 - Touch the appropriate parameter icon to assign an input to
each desired channel.
• PC6000, PH6500, PC6500 and PCD6500 - Touch Channel button (Ch1, Ch2, Ch3,
Ch4 and/or Ch5) to select the parameter assigned to that channel. Touch the
appropriate parameter icon to assign an input to each desired channel.
3. To deselect a channel, simply touch the Channel button again (or input channel on back
panel).
4. If multiple channels are assigned, touch the Display Setup button to select and assign
displayed windows (refer to next page for directions).
To return to measurement mode, touch Multi Channel (if two or more channels are assigned) or
touch Single Channel (if one channel is assigned).

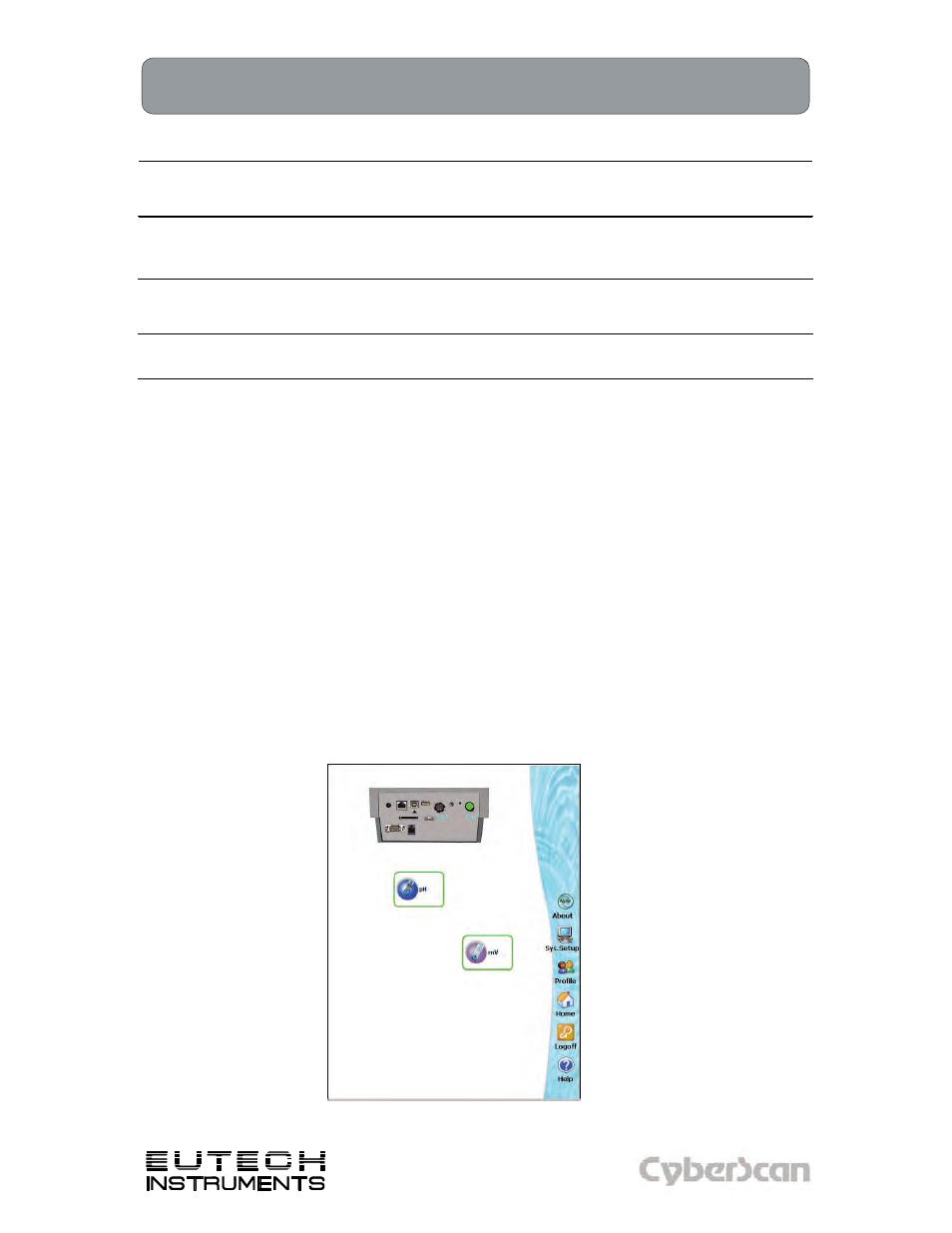

Assigning channel for PH6000 meter
