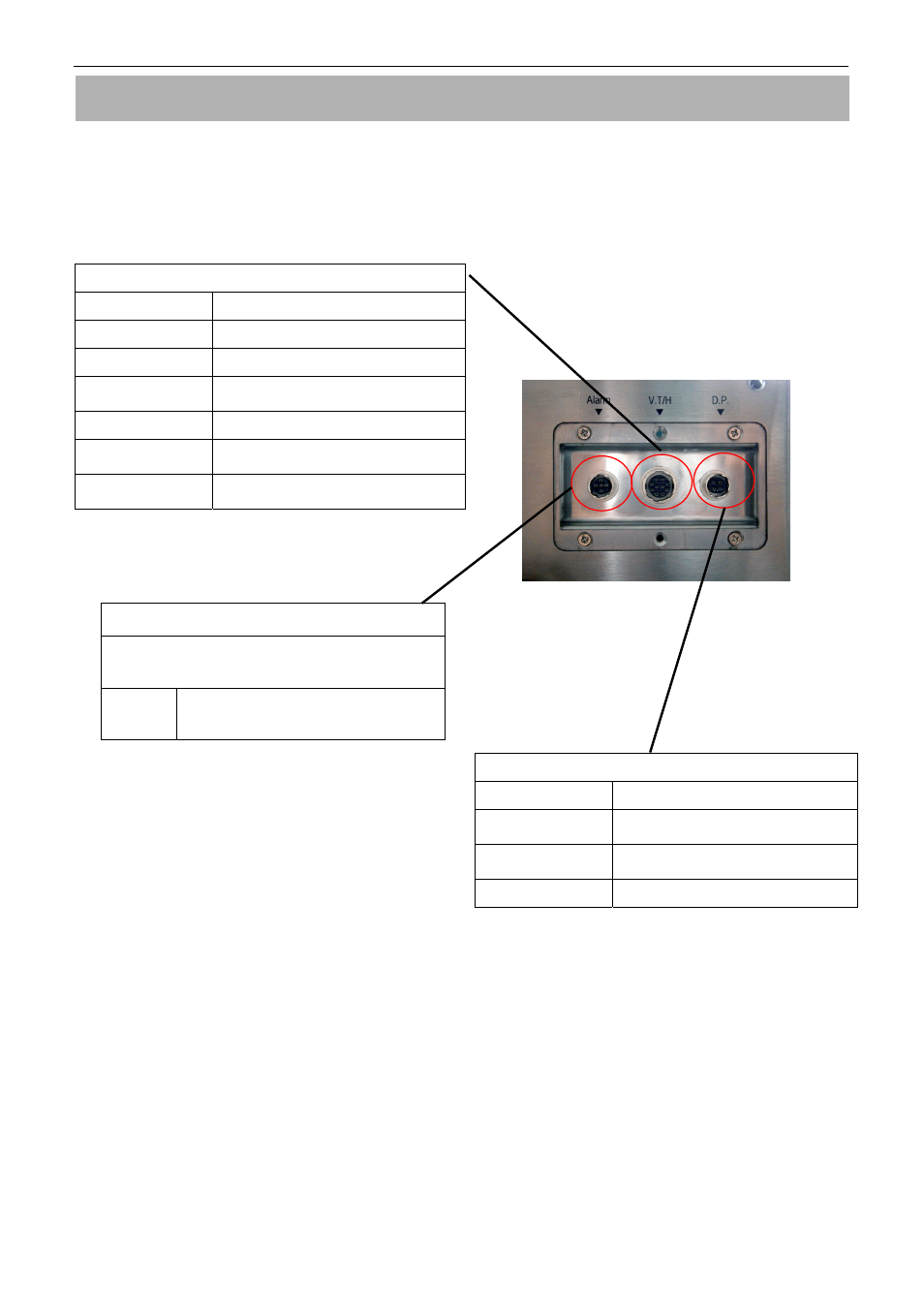

5. Connecting Option Sensors
Two types of sensors plus an alarm function are available as optional extras for this instrument.
By connecting the sensors or an alarm to three different connectors on the rear of the unit, you can
perform two different kinds of measurement and one contact output for the alarm simultaneously.
*The alarm output is a single set of contacts that
activates upon any sensor threshold being
exceeded. It can be used to activate an alarm
light, etc.
*When connecting the pressure transmitter, cable
MODEL 3900-02 is required separately. Please check
with your sales representative.
Temperature, Humidity, Velocity Probe - Model 6531
Temp. Range -20 to 70 °C
Temp. Accuracy ±0.5 °C
Humidity Range 2 to 98 %RH
Humidity
Accuracy
±2 %RH (when in the range of
2-80%RH, other ±3 % )
Velocity Range 0.01 to 30 m/s
Velocity
Accuracy
±2% of reading or ±0.015m/s,
whichever is greater
Dimension
Φ10 to 16 x212 mm
Length of the probe cable: 2m
Contact Output Cable - Model 3910-03
When the alarm function is ON and the
threshold is exceeded, the alarm will be turned
ON.
Spec
Photocoupler
Maximum rating: 60V/400 mA
Red: + / Black: -
Pressure Transmitter - Model C264 0-100Pa
Pressure Range 0 ~ 100 Pa
Pressure
Accuracy
±1 %F.S.
Guaranteed
Temp
5 to 65 °C
Output 4 to 20 mA
