3. Display Description and Operation Procedure 50

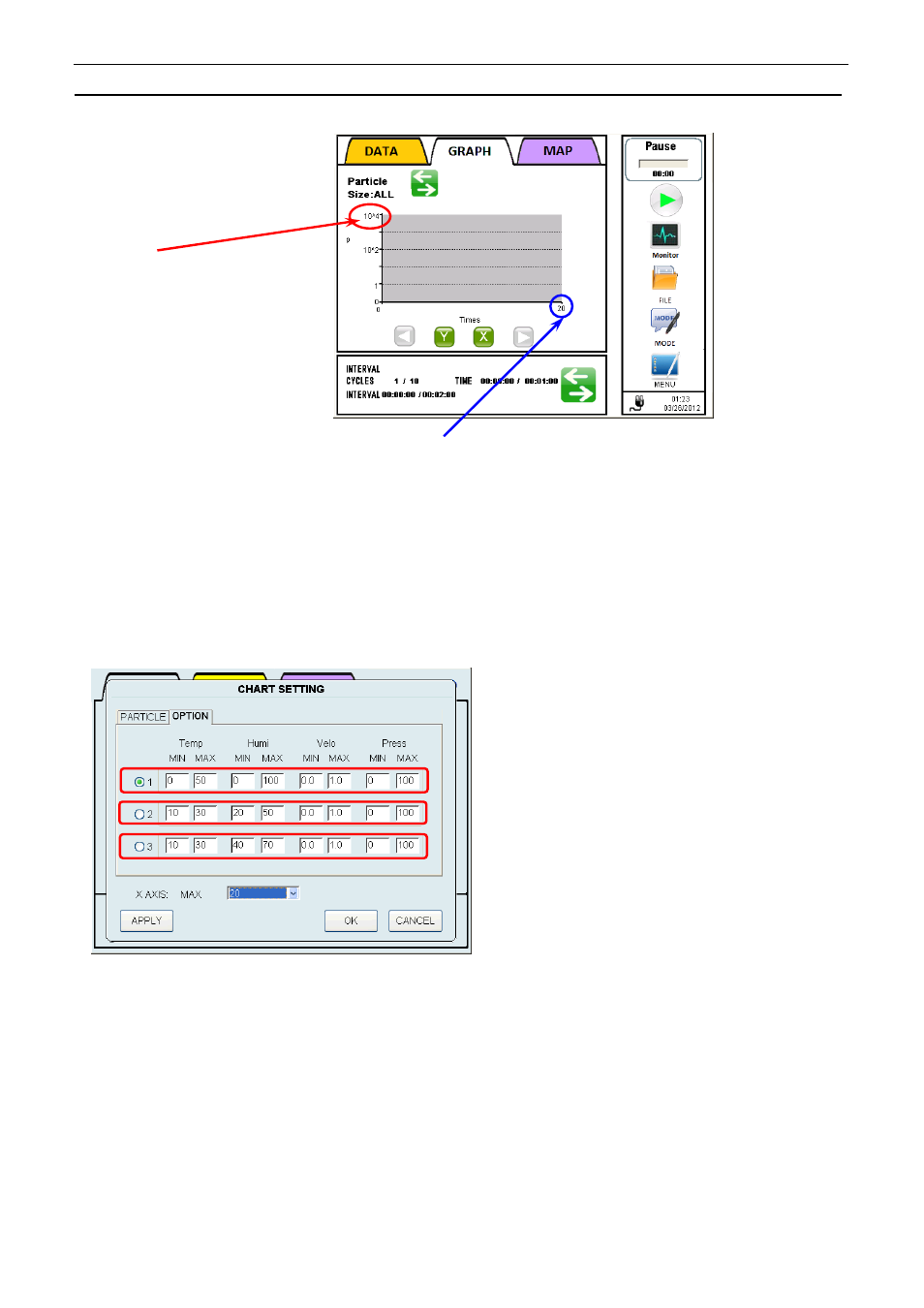

When you configure the chart settings as shown above, the chart will be shown as below.
X Axis:
In the OPTION tab, configure the “MIN” and
“MAX” settings for each sensor.
For each sensor you can set three different
values.
Tap [APPLY] to save the values that are
currently displayed in the tab
(Authentication required). The window is
not closed.
Tap [OK] to save the values and close the
window (Authentication required).
Tap [CANCEL] to discard any changes
you’ve made to the values and close the
window. The previous values will be applied.
Select 1, 2 or 3 to determine which of the 3
value settings will be displayed on the chart.
MAX value set in the PARTICLE tab in the CHART SETTING
window is applied to the chart.
Tap the
MAX value to change it.
(It changes in the order of “10”, “20”, “50”, “100”, “150”,
and “300”.)
Y Axis:
MAX value
set in the
PARTICLE tab in the CHART
SETTING window is applied
to the chart.
Tap the
MAX value to
change it.
(It changes in the order of
MAX settings 1, 2, 3, and 4.)
