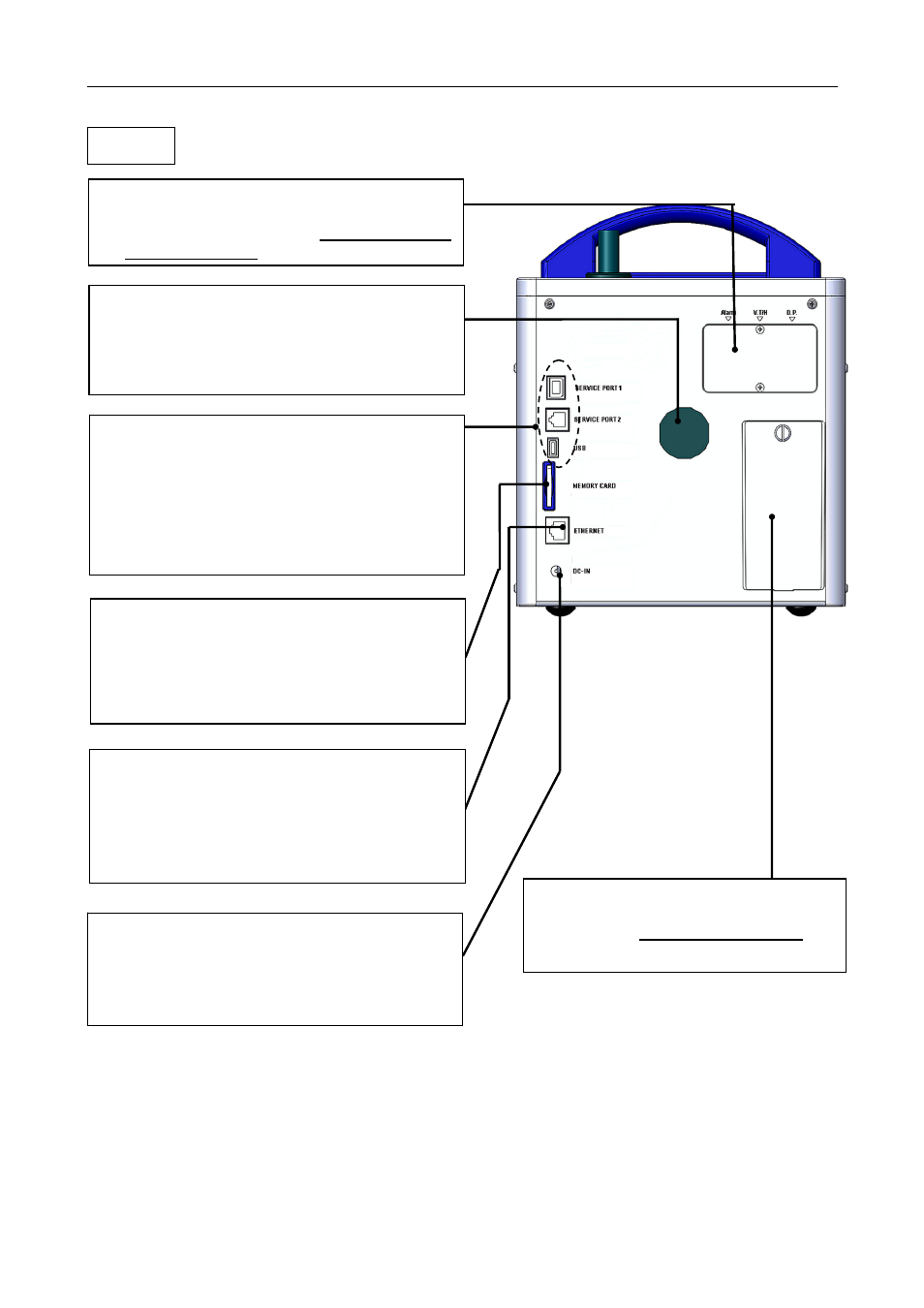

1. Part Names and Functions 2
Battery Compartment
--- Insert rechargeable battery here.
Refer to 2.1 Power Supply for
how to install the battery.
BACK
Sampling Air Exhaust Port
--- Filtered sample air is exhausted at this
port.
Do not block the port as it may result in
damage to the instrument.
DC-IN
---This is an inlet to supply AC power to the
instrument. Connect the provided AC
adapter here.
Optional Sensor Connecting Terminal
--- Terminals where optional sensors can be
connected. Refer to 5. Connecting
Option Sensors for details.
ETHERNET Connector
---To be used when controlling the
instrument by the software. For details,
refer to the operation manual for the
software.
MEMORY CARD Insertion Slot
--- Insert the MMC card to store measurement
data.
To be used to transfer measurement data
and other files to be processed on PCs.
Upper: SERVICE PORT1 Connector
(Service only.)
Middle: SERVICE PORT2 Connector
(Service only.)
Lower: USB Connector
--- Insert a USB flash drive to store
measurement data.
