3. Display Description and Operation Procedure 49

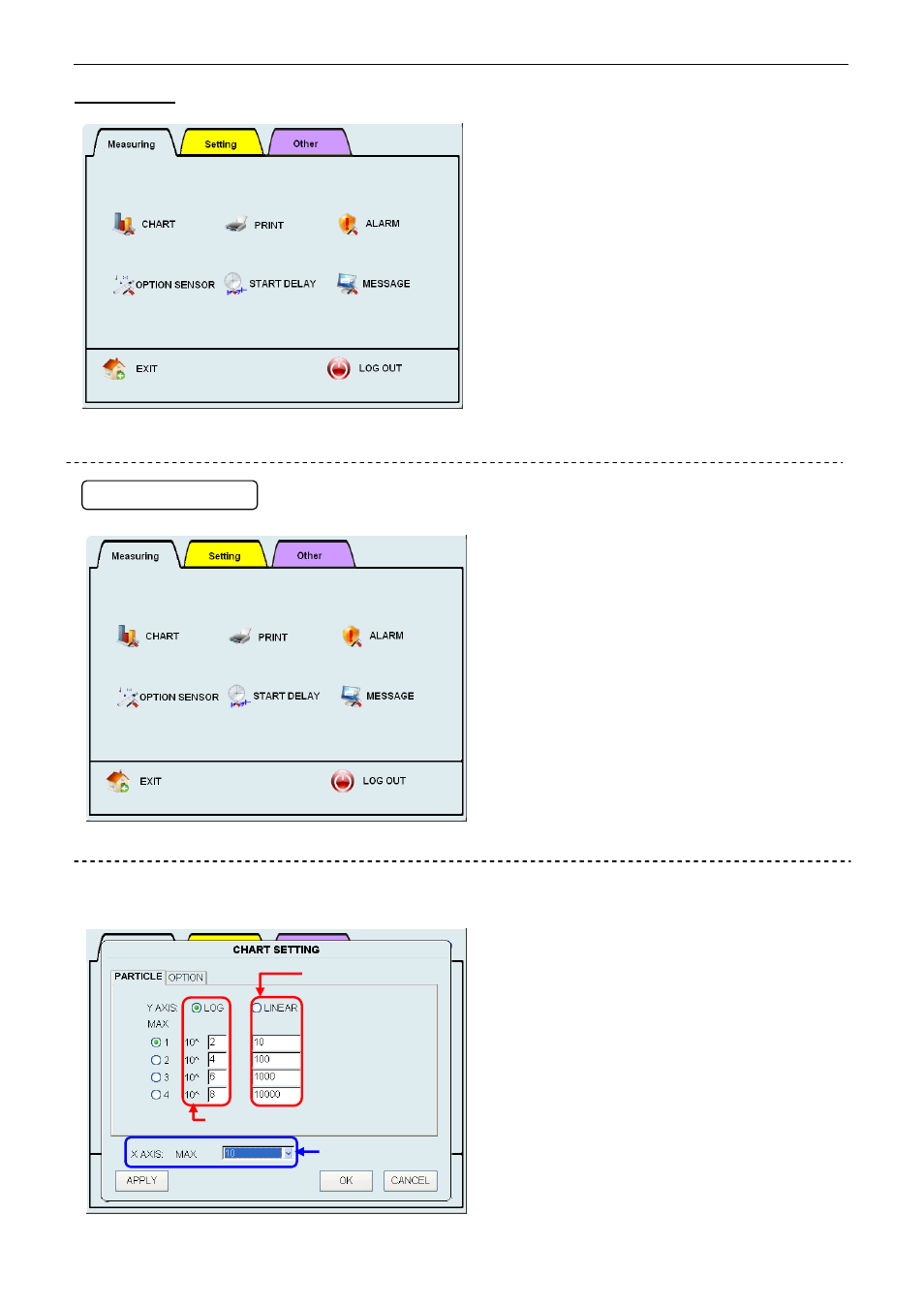

3.8 MENU
Select “MENU” on the initial screen to
display the window.
*User needs to have the
authorization (Access Control Panel)
to change the settings on the menu.
3.8.1 Measuring
In the Measuring window you can configure
the following settings;
- CHART
- PRINT
- ALARM
- OPTION SENSOR
- START DELAY
- MESSAGE
-
· CHART SETTING
Configure the axis of the chart and range
settings.
For X Axis select either “10”, “20”, “50”,
“100”, “150” or “300”.
For Y Axis in PARTICLE tab select either
“LOG” or “LINEAR”.
Select 1, 2, 3 or 4 to determine which of the
Y AXIS MAX values will be displayed on the
chart.
You can set 4 different max values each for
“LOG” and “LINEAR”.
Y-axis in LINEAR scale
X-axis
Y-axis in LOG scale
