2-64 IM WX11-01E

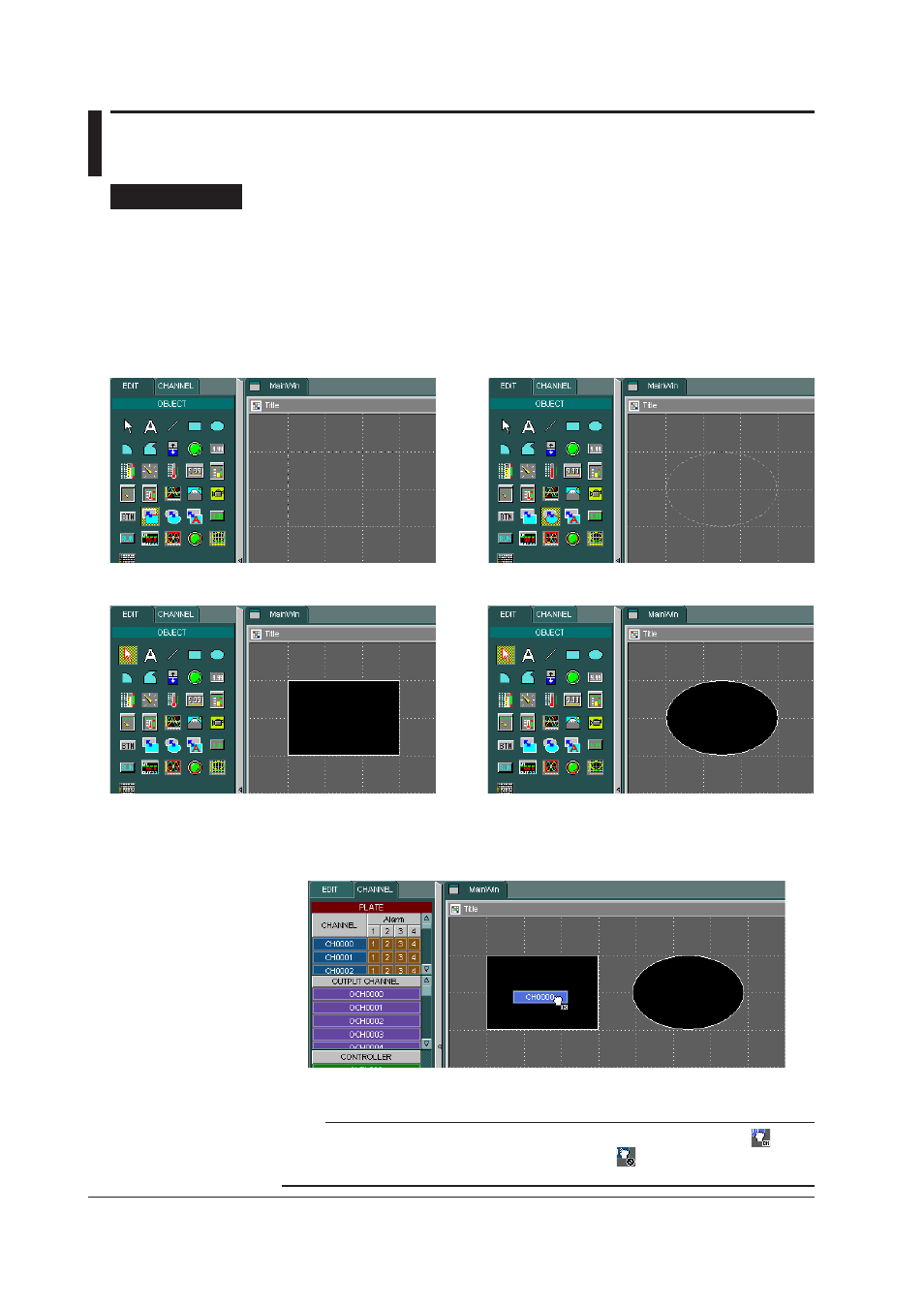

2.27 Creatng Color Change (Rectangle and Ellpse)
Objects
Procedure
Creatng a New Object
1. Click the Color Change Rectangle or Color Change Ellpse icon in the EDIT
page of the operation panel, or click the Color Change Rectangle or Color
Change Ellpse button in the object bar.
2. Move the mouse cursor to a location in the editing area where you want to place
one corner of the rectangle object or ellipse object.
3. Drag the cursor to the location of the opposite corner of the object.
A rectangle or ellipse is created in the two opposing corners defined in steps 2 and 3.
4. In the Setting Plate of the CHANNEL page in the operation panel, move the
cursor to the channel that you wish to assign to the rectangle or ellipse.
5. Drag the channel you wish to assign over the rectangle or ellipse created in step 3.
The specified channel is now assigned to the rectangle or ellipse.
Note
• When you move the channel over the rectangle or ellipse, the cursor changes to . Note
that the channel cannot be assigned when displayed as .
• To delete the channel assignment from the rectangle or ellipse, see section 2.30, “Editing Objects.”
