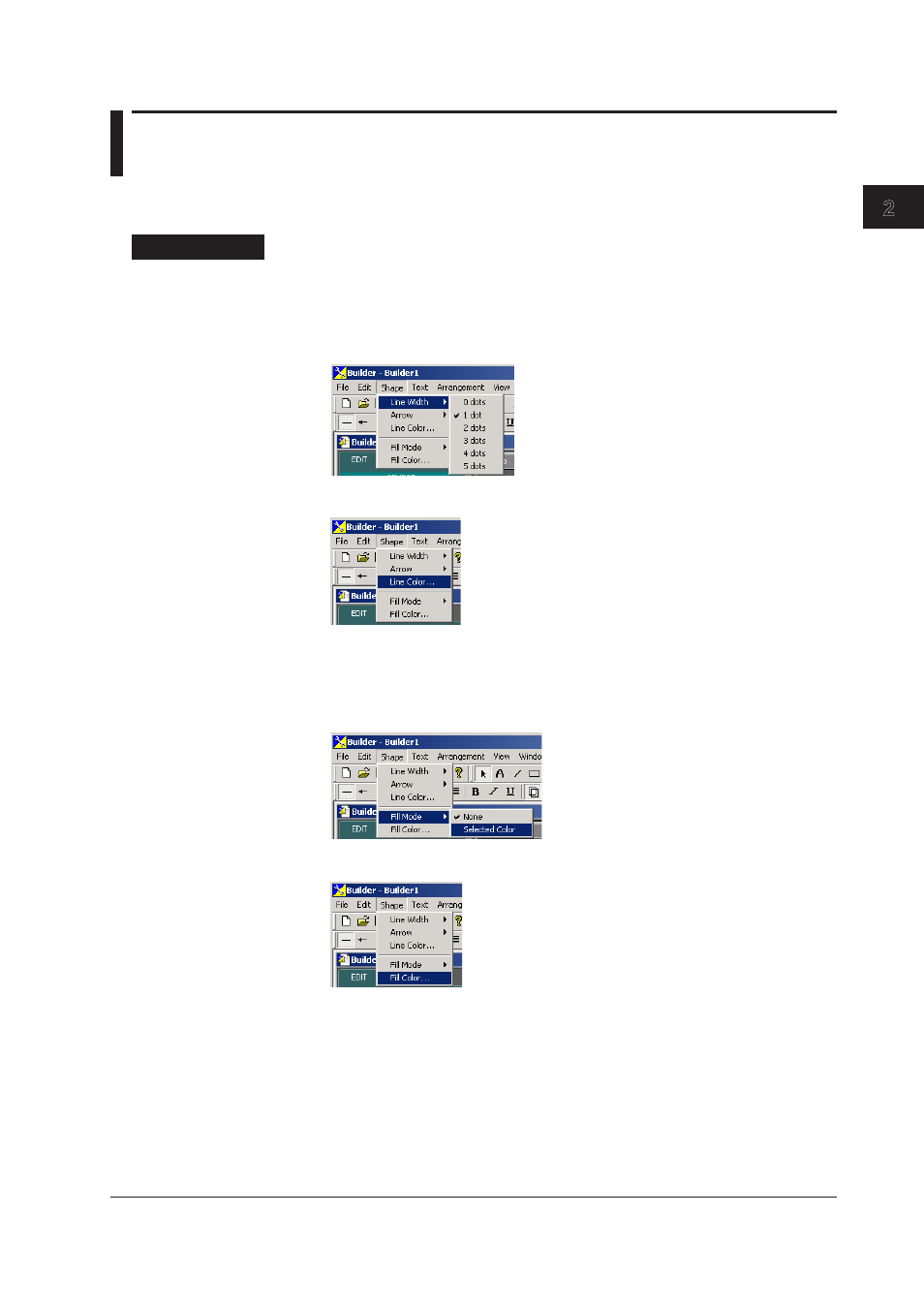

2.10 Creatng Arcs
You can create an arc of any shape or size. You can also specify the arc’s line width,
starting angle, ending angle, line color, and fill.
Procedure
Creatng a New Arc
1.
Click the Arc icon on the EDIT page of the operation panel, or click the Arc button
in the object bar.
2.
Choose Gadget > Lne Wdth, then select from 0 dots through 5 dots.
3.
Choose Gadget > Lne Color.
The color settings dialog box is displayed. For details on the color settings dialog
box, see “Choosing a Color from the Color Settings Dialog Box” in section 2.30.
4.
To apply the fill, choose Gadget > Fll Mode > Selected Color, or click the Fll
button on the attribute bar.
Choose Gadget > Fll Color.
The color settings dialog box is displayed. For details on the color settings dialog
box, see “Choosing a Color from the Color Settings Dialog Box” in section 2.30.
5.
Move the mouse to a location in the editing area where you want to place the arc.
