A meter is created using the two corner points specified in steps 3 and 4.

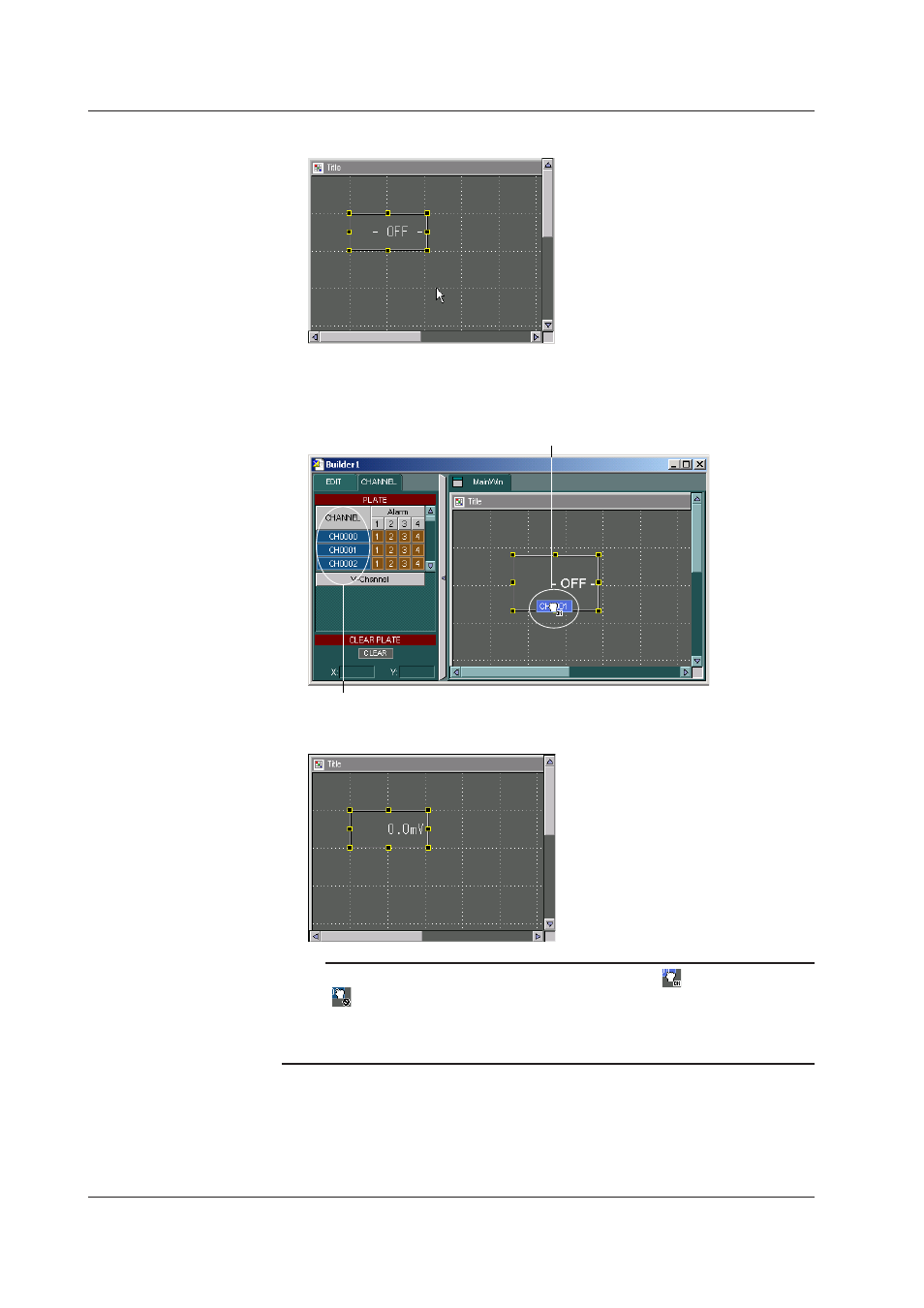

5. Move the cursor to the channel you wish to assign to the meter on the channel
page of the operation panel.
6. Drag the channel to the meter.
(1) Drag the channel you wish to assign.
(2) Drop the channel plate on the meter.
A meter is created with the desired channel assigned to it.
Note
• When you drag a channel over a meter, the cursor changes to a . If the cursor changes
to a , this indicates that the selected channel can not be assigned to the meter. Be sure
to confirm whether or not a channel may be assigned.
• To remove channel assignments from meters, see “Removing Channel or Alarm
Assignments from Objects” in section 2.30.
