2-4 IM WX11-01E

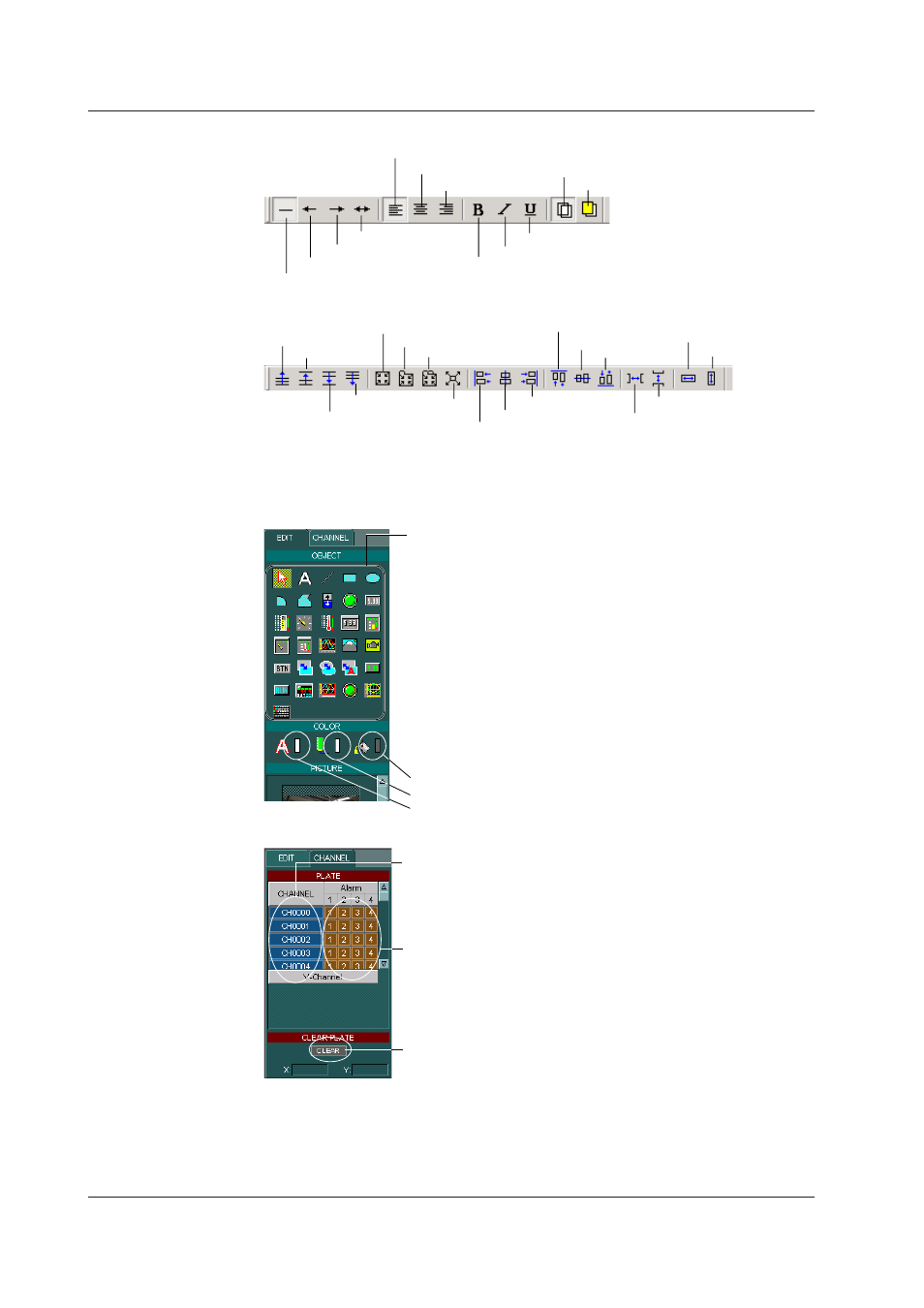

Attrbute Bar
Both Points Arrow
End Point Arrow
Start Point Arrow
No Arrow
Align Right
Align Center
Align Left
Underline
Italic
Bold
Fill
No Fill
Arrangement Bar
Move to Back
Move Backward
Move Forward
Move to Front
Ungroup
Group
Arrange Right
Center Horizontally
Arrange Left
Arrange Bottom
Center Vertically
Arrange Top
Unify Vertical Interval
Unify Horizontal Interval
Same Height
Same Width
Group Tab Pages
Tab Page
Operaton Panel
The operation panel has an Edit page containing tools for creating and editing objects
and changing their color, and a Channel page for assigning alarms.
• Edt Page
Fill Color
Line Color
Font Color
1 Channels can be assigned to this object.
(Channel alarm labels can be assigned to indicators.)
1st row starting from the left: Edit, Label, Line, Rectangle, Ellipse
2nd row starting from the left: Arc, Polygon, Value Rectangle 1
Indicator 1 , Digital 1
3rd row starting from the left: Bar Meter 1 , Analog Meter 1 ,
Thermometer 1 , Digital Meter Set 1 ,
Bar Meter Set 1
4th row starting from the left: Analog Meter Set 1 ,
Thermometer Set 1 , Trend Graph 1 ,
Picture, Monitor
5th row starting from the left: Button, Color Change Rectangle 1 ,
Color Change Elipse 1 , String Change
Rectangle 1 , Numeric Out
6th row starting from the left: Selectable Out,
Temperature Controller Parts,
Extended Trend Graph 1 ,
Extended Indicator 1 , X-Y Graph 1
7th: Alarm Summary
• Channel Page
To remove the channel or alarm label from an object,
drag the CLEAR button from the CLEAR PLATE to the object.
Drag an alarm label to each indicator you want to
assign the alarm to.
Drag a channel to each meter, trend graph, value,
or ellipse rectangle you want to assign the channel to.
Edtng Area
Objects can be created and edited (moved, resized) in the editing area. The monitor
screens you create will be displayed almost identically in AddObserver Panel as how
they appear in the editing area (there may be certain parts of trend graphs which do not
display exactly per the entered attributes).
2.2 The AddObserver Bulder Startup Screen
