2.18 Creatng Montor Wndows
You can arrange GateEye images.
Procedure
1.
Enter detailed channel settings (see section 2.4).
2.
Select the Edit tab in the operation panel. Click the Monitor icon under Objects, or
the Monitor button on the object bar.
3.

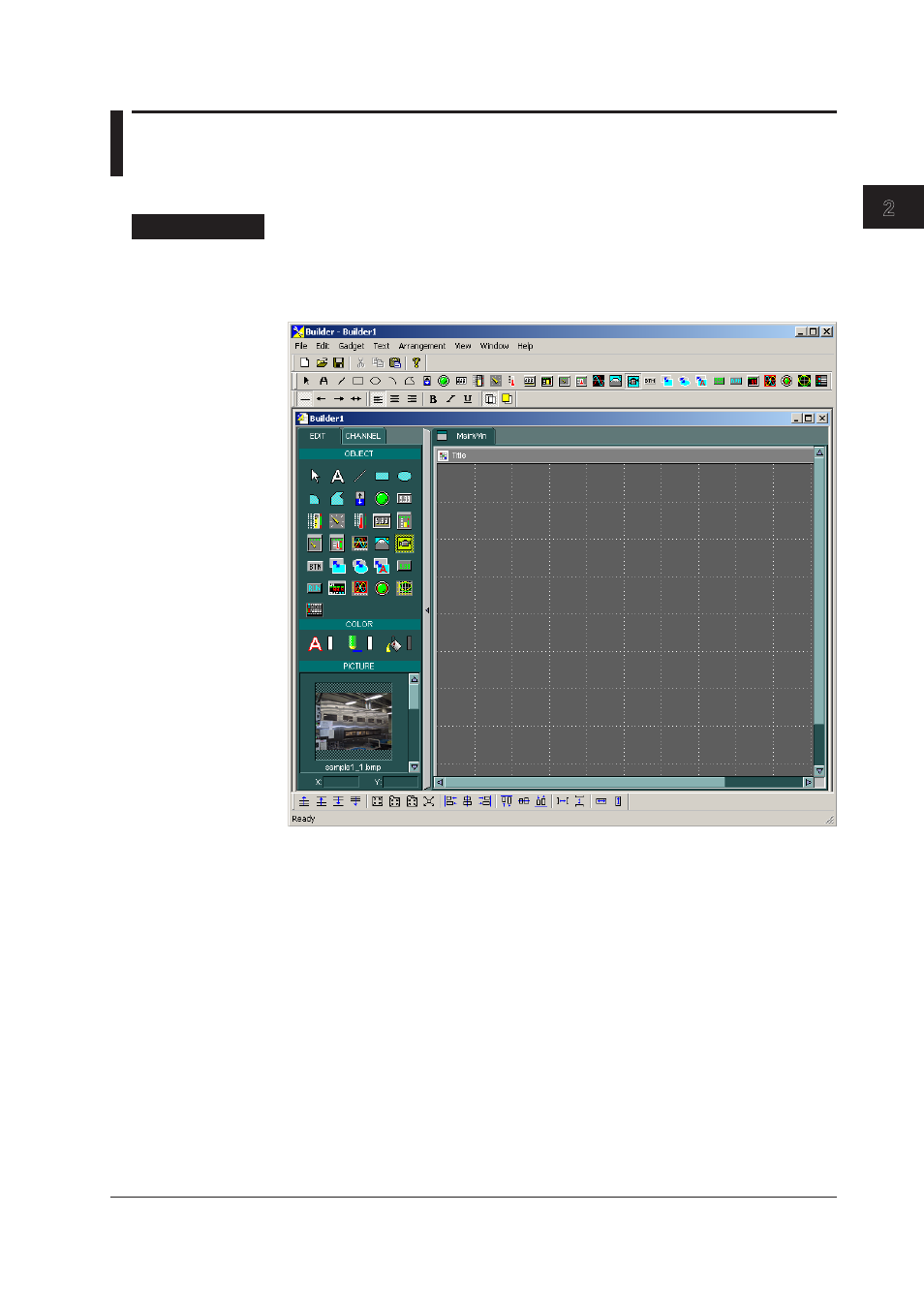

On the editing screen, move the mouse to one corner of the area where you want
to place the monitor.
4.
Drag the mouse to the corner opposite the point specified in step 3.
A rectangular monitor frame appears based on the 2 opposing points specified in
steps 3 and 4.
