2.22 Creatng Temperature Controller Parts
You can only assign controllers to temperature controller parts.
When assigning a controller, the controller’s channels and output channels are assigned
to each part of the temperature controller parts.
Procedure
Creatng a New Object

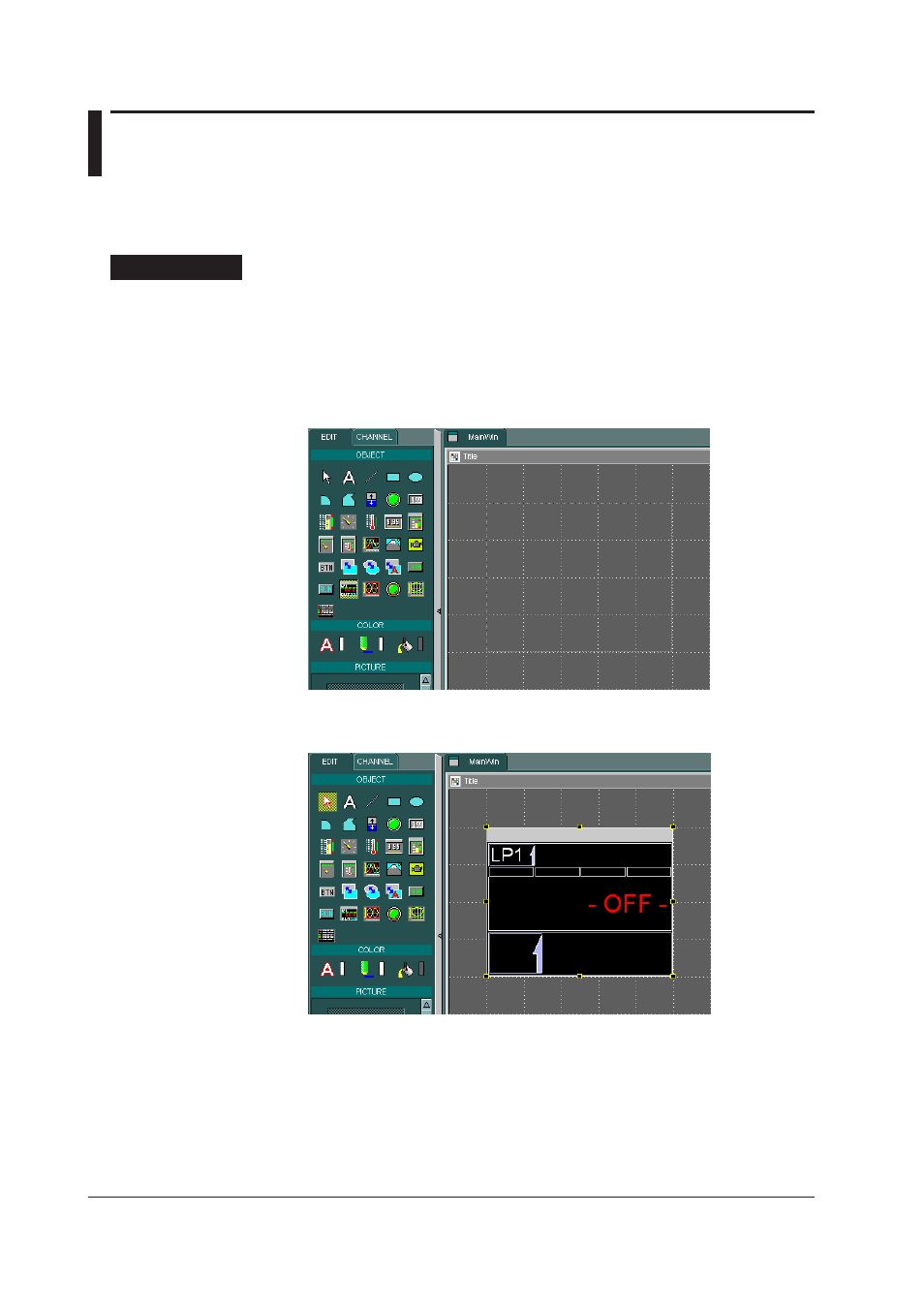

1. Click the Temperature Controller Parts icon in the EDIT page of the operation
panel, or click the Temperature Controller Parts button in the object bar.
2. Move the mouse cursor to a location in the editing area where you want to place
one corner of the temperature controller parts.
3. Drag the cursor to the location of the opposite corner of the object.
A temperature controller is created in the two opposing corners defined in steps 2
and 3.
4. In the Setting Plate of the CHANNNEL page in the operation panel, move the
cursor to the controller that you wish to assign to the temperature controller parts.
