2-41

IM WX11-01E

Creat

ng Mon

tor Screens w

th
AddObserver Bu

lder

Index

Note

• When you drag a channel over a trend graph, the cursor changes to a

. If the cursor

changes to a

, this indicates that the selected channel can not be assigned to the trend

graph. Be sure to confirm whether or not a channel may be assigned.

• To remove channel assignments from trend graphs, see “Removing Channel or Alarm

Assignments from Objects” in section 2.30.

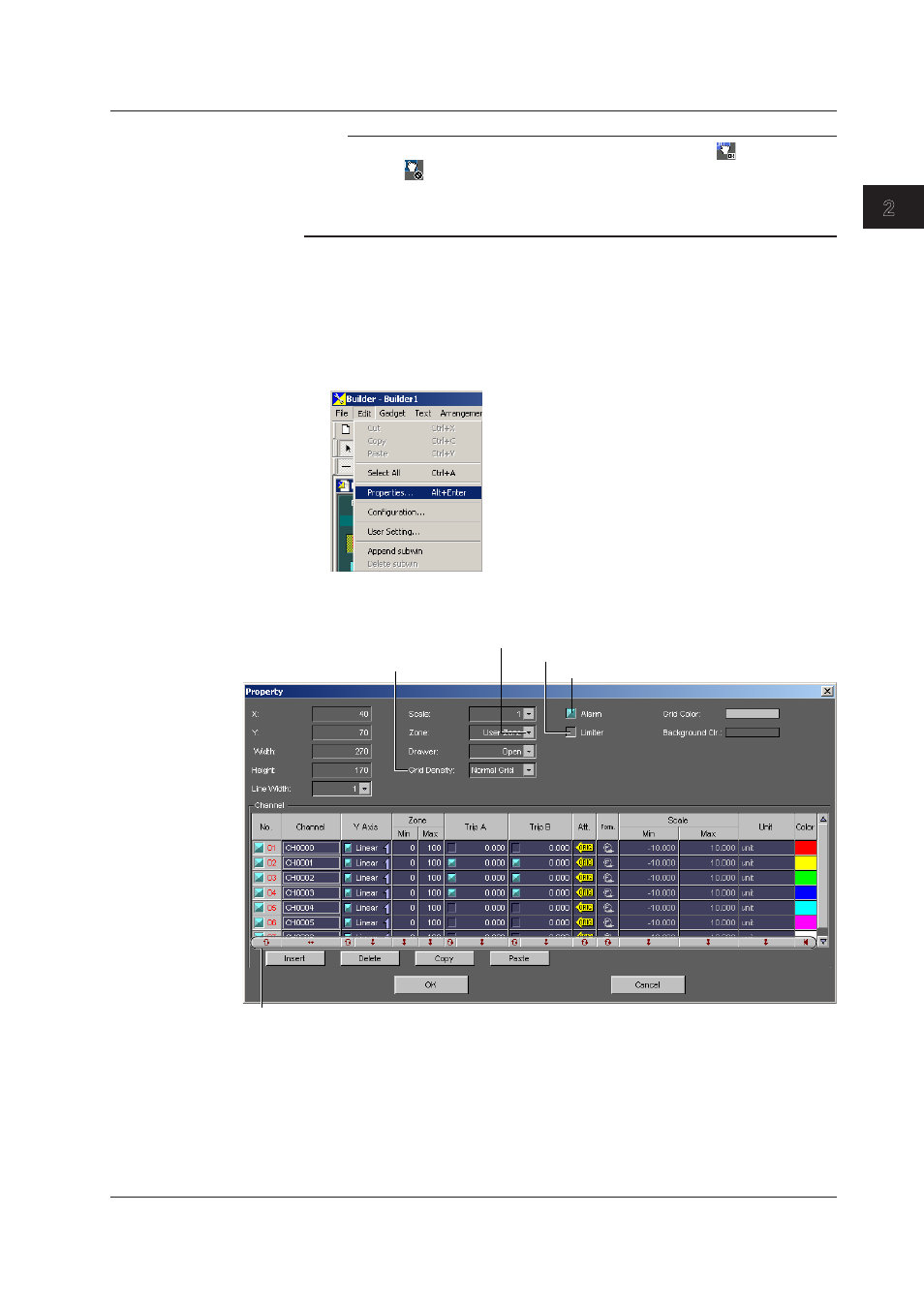

Edtng from the Propertes Dalog Box

Click the Edt icon in the OBJECT group of the EDIT page of the operation panel,

or click the Edt button in the object bar.

Select the trend graph you wish to edit in the editing area.

Choose Edt > Propertes or right-click and select Properties.

The meter set properties dialog box is displayed.

Click here to display alarms.

Click here to apply display limits.

Select one of the following zones for the y-axis: User Zone,

Full Zone, Slide Zone, Multi-Axes Zone, Edit Zone, or Auto Zone.

Each trend graph setting is the same as for the DAQ32 Plus, DAQEXPLORER, DAQLOGGER, or

MXLOGGER.

For details, see their respective user’s manuals.

Select a grid type.

Setting shortcut buttons (see page 2-10).

Move the cursor to the desired item and click to enter a new value.

Click OK.

2.16 Creatng Trend Graphs
