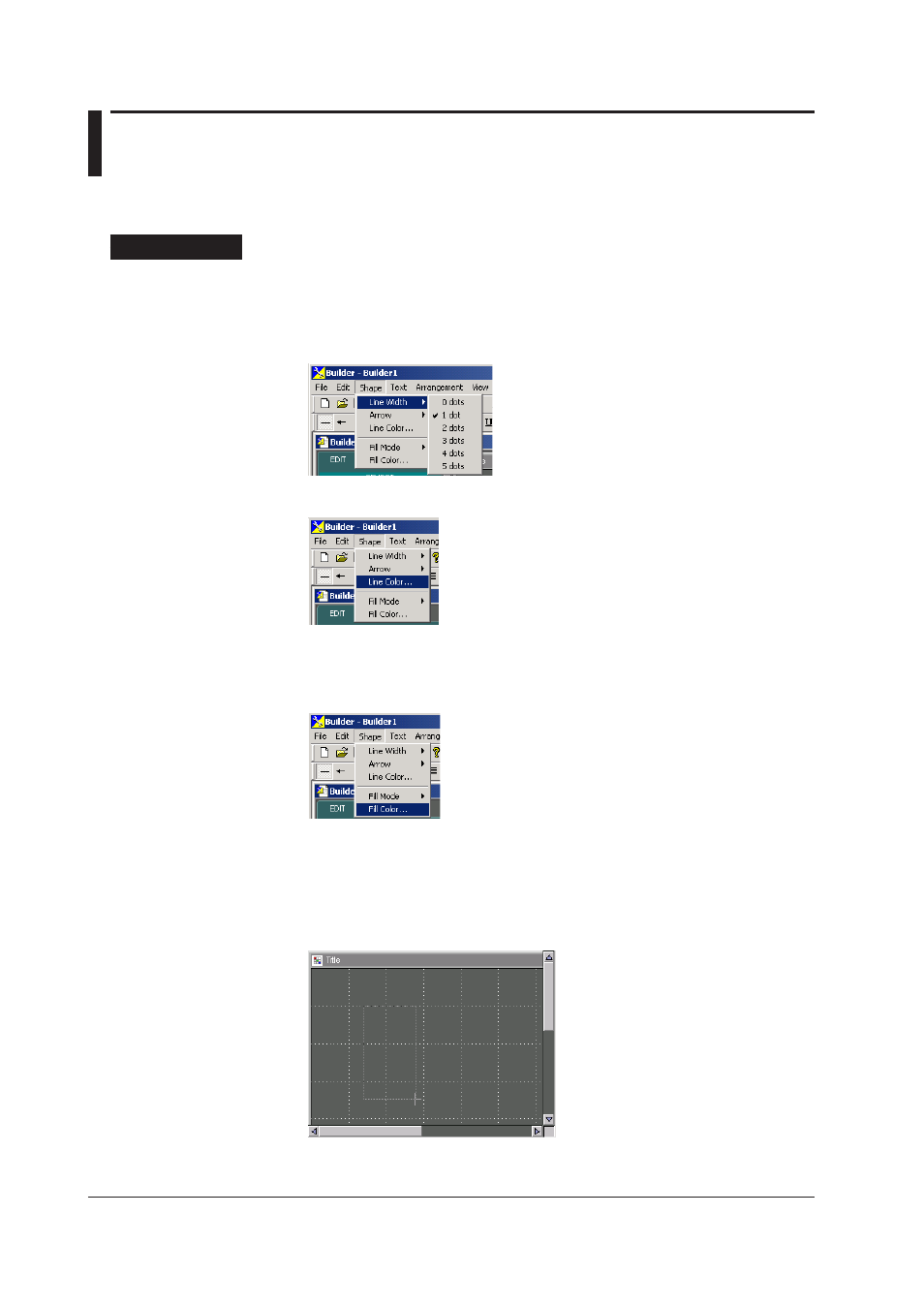

2.12 Creatng Value Rectangles
You can create a value rectangle for any channel. You can also specify the value
rectangle’s line width and line color.
Procedure
Creatng a New Value Rectangle
1. Click the Value Rectangle icon in the OBJECT group of the EDIT page of the
operation panel, or click the Value Rectangle button in the object bar.
2. Choose Gadget > Lne Wdth, then select from 0 dots through 5 dots.
3. Choose Gadget > Lne Color.
The color settings dialog box is displayed. For details on the color settings dialog
box, see “Choosing a Color from the Color Settings Dialog Box” in section 2.30.
4. Choose Gadget > Fll Color.
The color settings dialog box is displayed. For details on the color settings dialog
box, see “Choosing a Color from the Color Settings Dialog Box” in section 2.30.
5. Move the mouse to a location in the editing area where you want to place the
value rectangle.
6. Drag the cursor to the location of the opposite corner of the value rectangle.
