2-39 IM WX11-01E
Creat
ng Mon
tor Screens w
th
AddObserver Bu
lder
1
2
3
4
Index
2.16 Creatng Trend Graphs
You can create trend graphs and assign channels to them. You can also enter settings
for such things as the channel, units, grid color, and background color.
Procedure

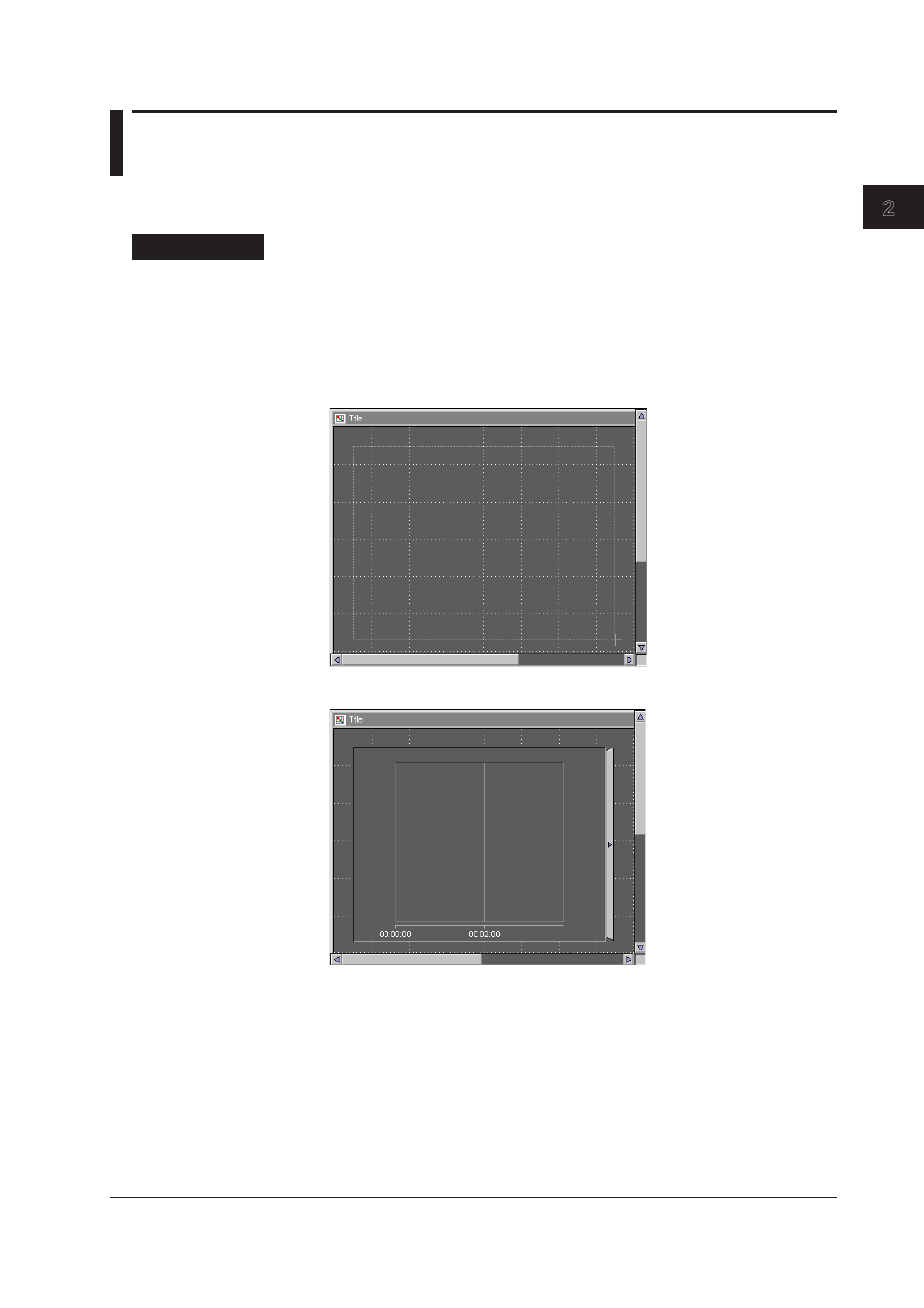

Creatng a New Trend Graph
1. Click the Trend Graph icon in the OBJECT group of the EDIT page of the
operation panel, or click the Trend Graph button in the object bar.
2. Move the mouse to a location in the editing area where you want to place the
trend graph.
3. Drag the cursor to the location of the opposite corner of the trend graph.
A trend graph is created using the two corner points specified in steps 2 and 3.
4. Move the cursor to the channel you wish to assign to the trend graph on the
channel page of the operation panel.
