2-15 IM WX11-01E
Creat
ng Mon
tor Screens w
th
AddObserver Bu
lder
1
2
3
4
Index

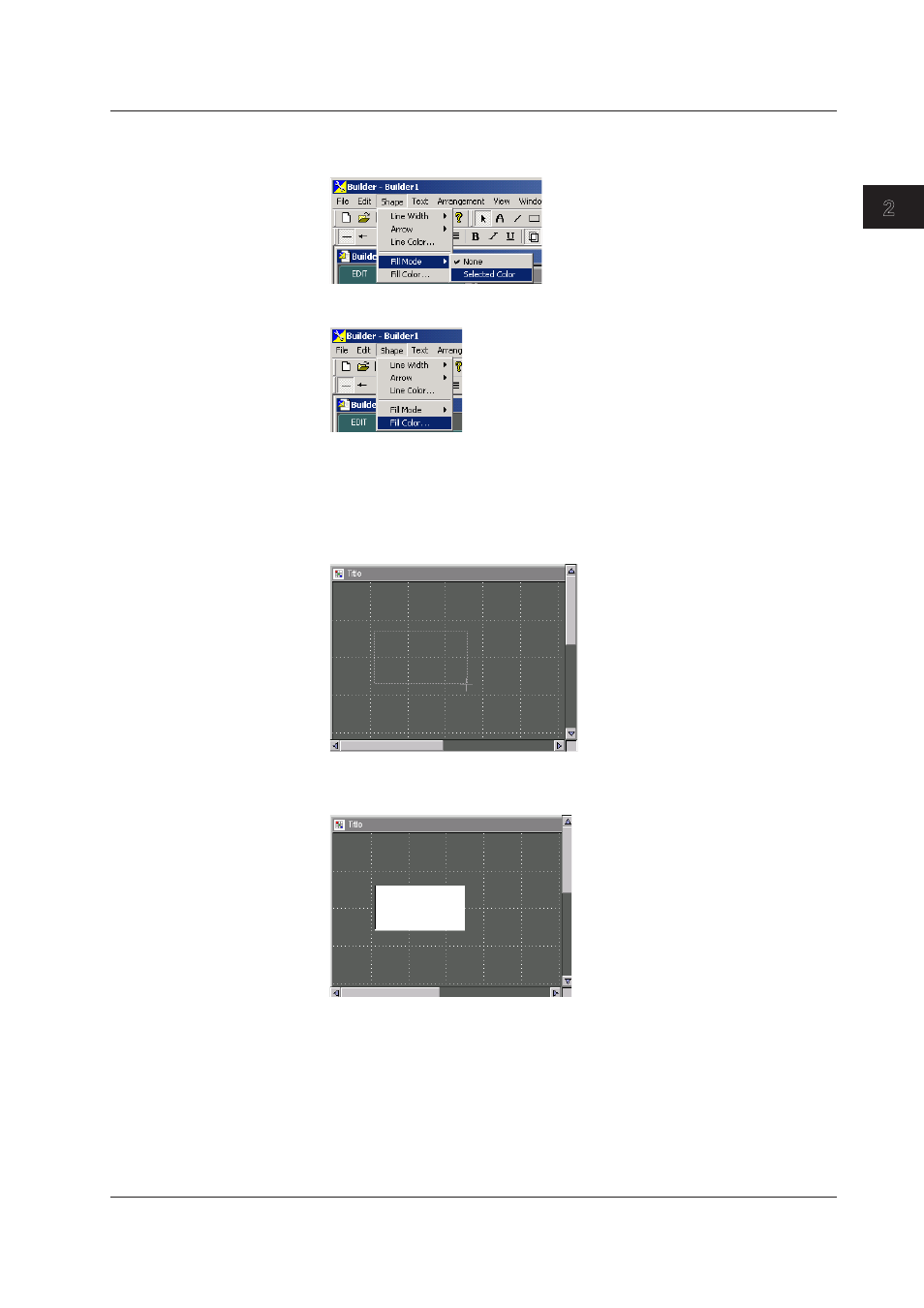

6. To apply the fill, choose Gadget > Fll Mode > Selected Color, or click the Fll
button on the attribute bar.
Choose Gadget > Fll Color.
The color settings dialog box is displayed. For details on the color settings dialog
box, see “Choosing a Color from the Color Settings Dialog Box” in section 2.30.
7. Move the mouse to a location in the editing area where you want to place the
upper-left corner of the label.
8. Drag the cursor to set the location of the opposite corner of the label.
9. The cursor blinks inside the new label, allowing you to enter a character string.
The character string you enter will appear within the frame of the label.
2.6 Creatng Labels
