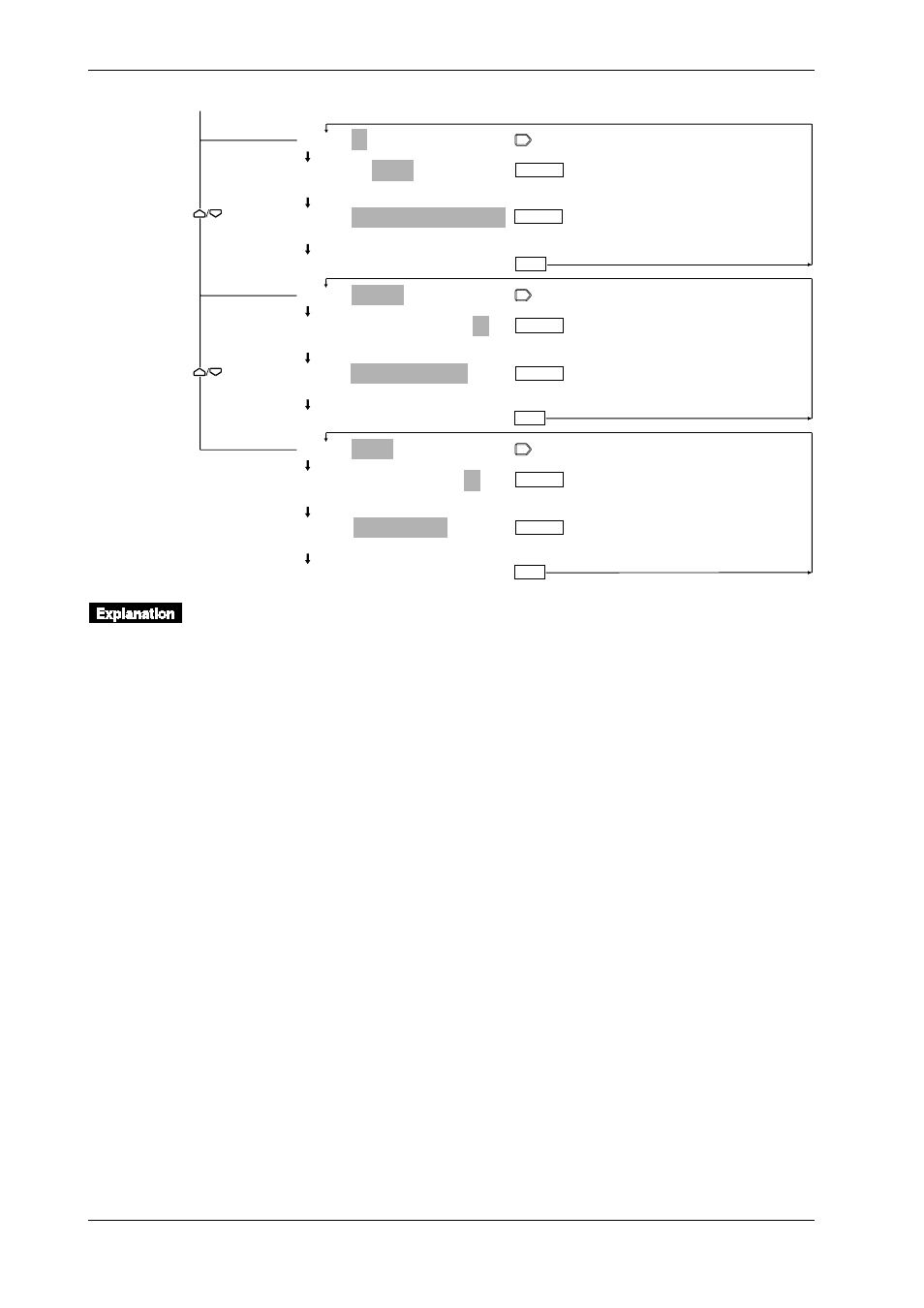

5.1 Setting the Type of Input and Recording Span
ENTER
ESC
ENTER
001-01:DI/LEVL
001-01:DI/LEVL
LEVL CONT
SPAN= _ _ _ _ _ _ 0/ _ _ _ _ _ _ 1
>Span limit(0~1)
***SET OK***
002-02:DELTA/REF Ch=01
002-02:DELTA/REF Ch=01
>Select Channel No.
SPAN=–2.0000/_2.0000V
>Span limit(–2.0000~2.0000V)
***SET OK***
002-02:RRJC/RJC Ch=01
002-02:RRJC/RJC Ch=01
>Select Channel No.
SPAN= 0.0/1760.0˚C
>Span limit(0.0~1760.0˚C)
***SET OK***
ENTER
ENTER
ENTER
ESC
ESC
From the previous page
ENTER
Setting the Channel No.
This setting specifies the channels to which the type of input and recording span applies. Set a
range of channels in the same unit, whether you specify from what channel (the first channel) to
what channel (the last channel).
First Channel No. (Begin)
The first three characters on the main display show the number of the first channel to which
settings apply.
• A numeral in the first character position shows a unit number. A numeral in the second
character position represents a module number (slot number).
• Setting range: Determined by the positions in which the input modules are connected. For
details, see page 3-8.
Last Channel No. (End)
The two characters following the first channel number show the number of the last channel to
which settings apply.
• Setting range: See description of the above “The first channel number.” The number of the last
channel cannot be smaller than the number of the first channel. When both channel numbers are
equal, settings will only apply to that particular channel. When you have set the first channel
number and you move the cursor to the last channel setting, the channel number of the first
channel setting will appear here.
