Page 60
48 MLS User’s Guide
Using the MLS
Front Panel
The MLS front panel provides a convenient interface with the
controller. You can use the front panel keys to program and operate the
MLS, or you can use ANASOFT, a program designed specifically for
ANAFAZE controllers. (See the ANASOFT User's Guide for more
information about ANASOFT, or contact ANAFAZE.)

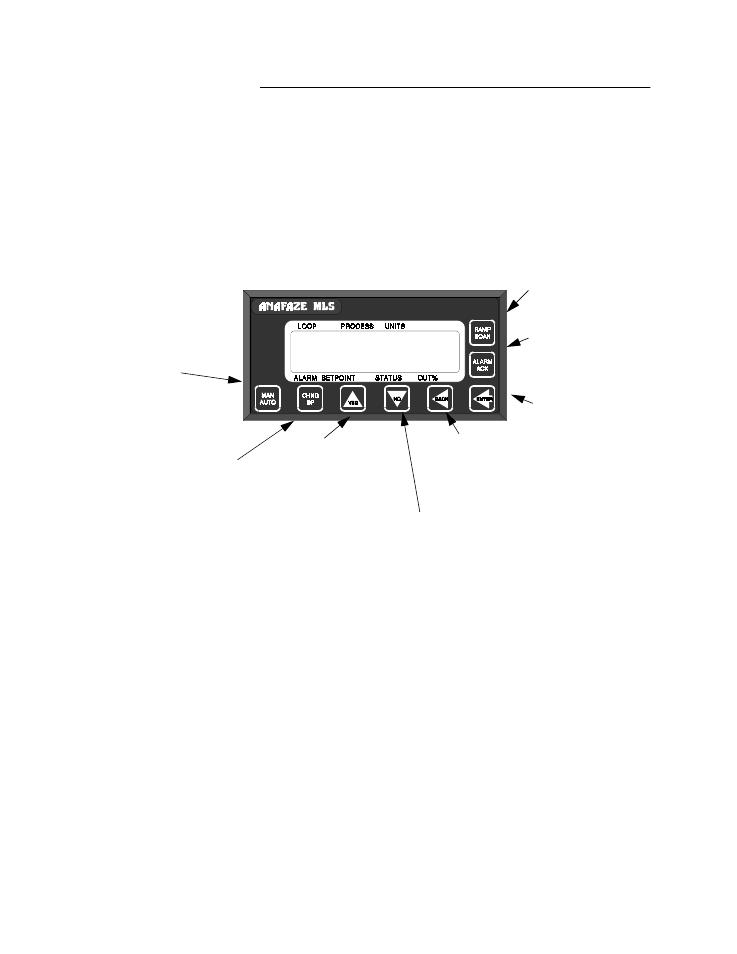

This figure shows the MLS' front panel.
Ramp/Soak
Not available
at this time
Alarm Ack
Acknowledges
Enter
Stores data or menu
choices & advances to
the next menu
Starts scanning mode
(if pressed twice)
Back
Aborts editing
and returns
to a previous
menu
No
Skips a menu
Answers No to Yes/No
prompts
Decreases a number or
choice you are editing
yes
Selects a menu
to Yes/No prompts
Increases a number
or choice
Answers Yes
Change Setpoint
Changes process
Setpoint
Man/Auto
Changes loop output
control from Automatic
to Manual or Tune
Assigns output power
level of manual loops
