MLS-PM Mounting Steps

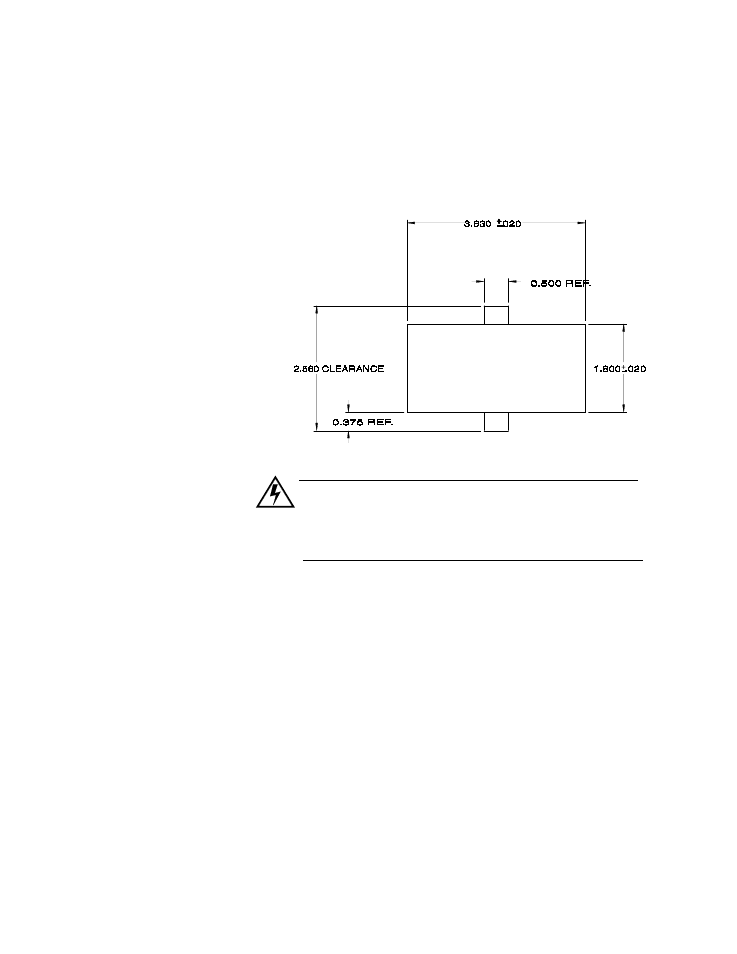

1. Use the template below to cut a hole in the panel. Be careful; the

0.02" (0.5 mm) tolerances don't allow much room for error. Use a
punch, nibbler, or jigsaw; file the edges of the hole.

WARNING

Make sure bits of wire and debris do not lodge in
the electronics, or else make sure you clean the
electronics before you connect power.

2. Insert the MLS-PM into the hole through the front of the panel.

3. Screw the top and bottom clips in place. If you expect much panel

vibration, use a rear support for the MLS and its interconnecting
cables.
