14 MLS User’s Guide

Introduction

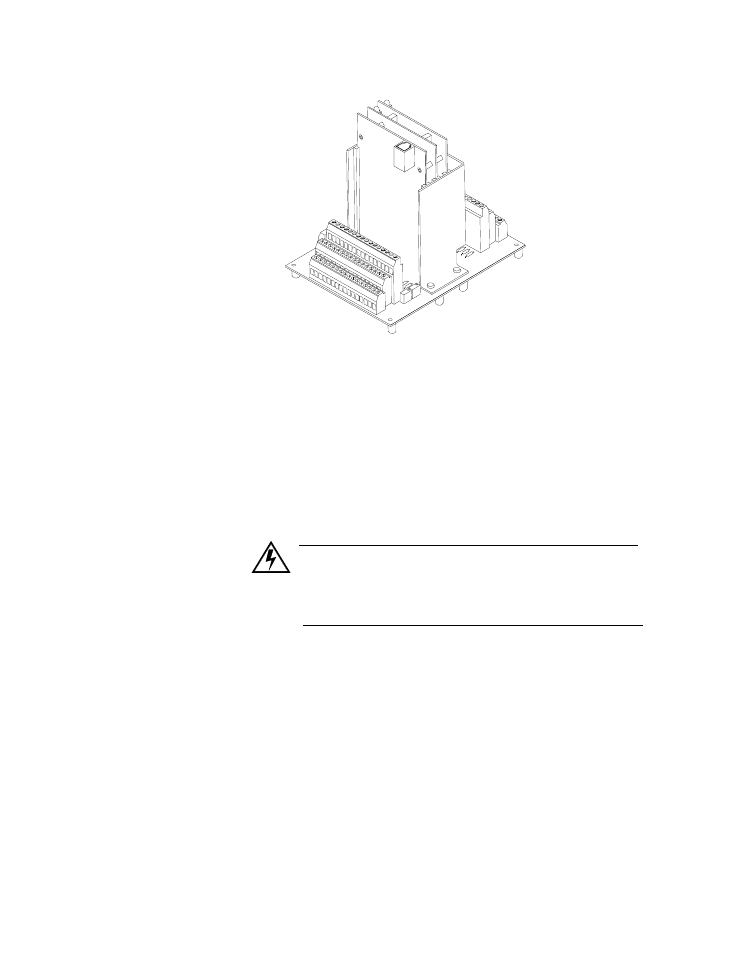

Here's a picture of the MLS-AIM-32 and terminal block:

MLS Cabling Technical Description

Watlow-Anafaze provides all the cables required to install your MLS.

The 50 pin ribbon cable which connects the RTB to the MLS-PM is an
0.05 space conductor-zoned 50 pin cable. Pin #1 is at the red edge of the
cable.

The cables which connect the MLS-PM to the AIM-TB, the optional
Smart I/O Module (SIOM) and the computer are 6-conductor shielded
cable. (These cables are also known as RJ12 cable; they are available
from Newark Electronics and other suppliers.)

WARNING

These cables are not standard phone cables; stan-
dard cables are not shielded. Watlow-Anafaze pin
numbering convention is also reversed.
