2. Remove liner assembly. (See Maintenance
Section)
3. Remove gun tube assembly. (See Maintenance
Section)
4. Remove wire drive assembly. (See Maintenance
Section)

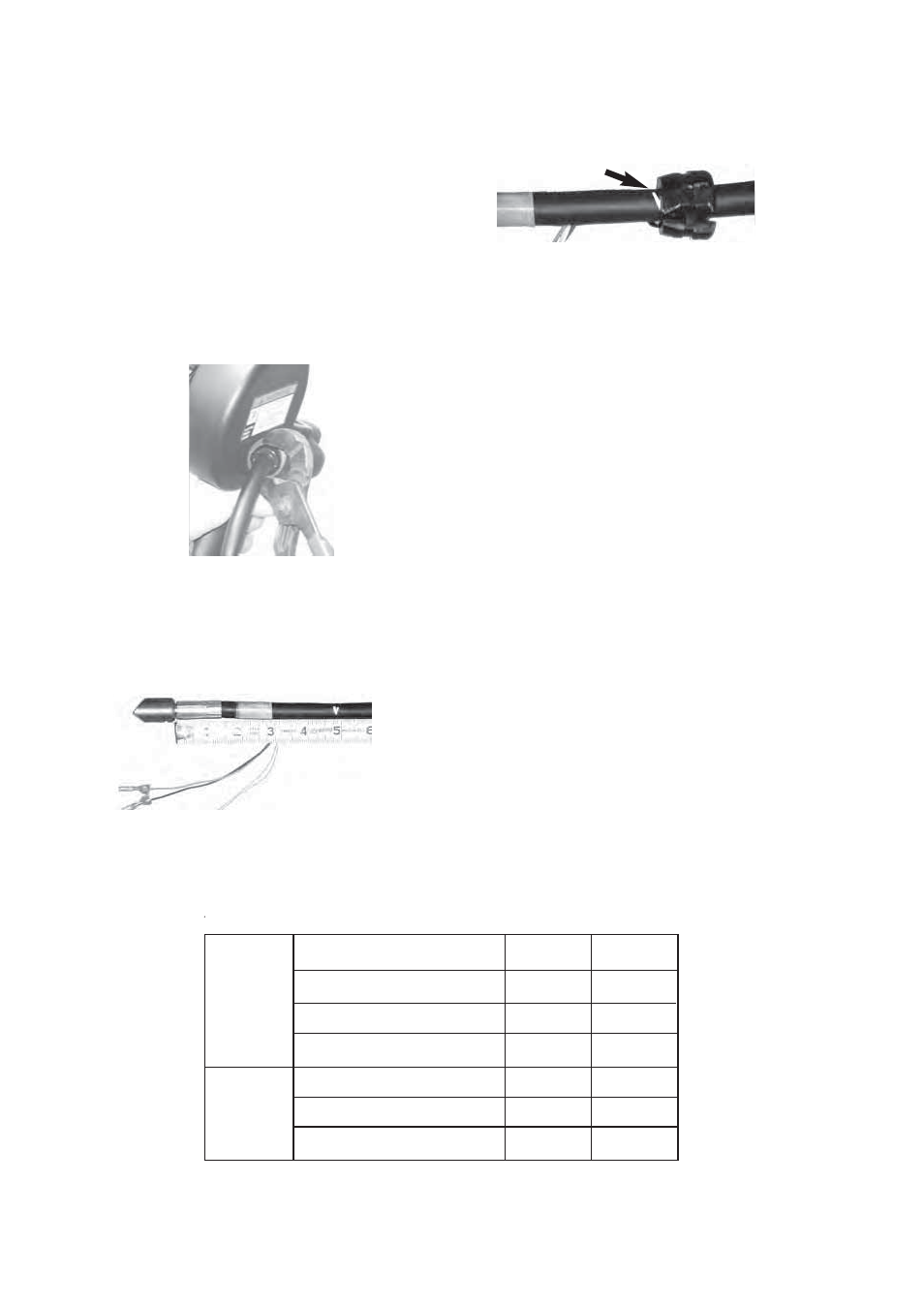

5. Disconnect trigger. Use adjustable pliers to
remove cable strain relief from right handle half.
(See figure D.13)
FIGURE D.13
6. Pull damaged cable out of the right handle half.
The cable connector will fit through the strain relief
opening. Mark the new cable at a point 4.750 to
4.813 inches from the end of the cable connector.
(See figure D.14)
FIGURE D.14
7. Place the strain relief onto the new cable at the
mark as shown in figure D.15.
MAINTENANCE
D-5
FIGURE D.15
8. Install the new gun cable. Pass the cable connec-
tor through the opening in the right handle, seat
the strain relief in place, and then check to insure
the cable is not kinked between strain relief and
connector. Reassemble gun by reversing steps 2
through 5.
CORRECTING WIRE SHAVING ISSUES
1. If the inlet of the liner assembly is shaving the alu-
minum wire (the wire is usually peeled off in curled
chips) during feeding, the wire feed centerlines of
the wire drive and the liner itself may be mis-
aligned.
• This misalignment may occur whenever the gun
tube, wire drive, or welding cable assemblies are
replaced.
• A limited amount of adjustment is available at the
gun tube mounting to possibly eliminate the shav-
ing problem.
2. Visually check if wire is centered in the linerʼs inlet
opening. Feed wire through the spool gun and note
which side the shaving seems to occur.
3. Remove left side of handle. See Figure D.10 Gun
Tube Replacement. Slightly loosen gun tubeʼs nut
as shown.
4. Slide the gun tube in the mounting plateʼs hole to
realign the wire and then retighten the nut as
shown. Reassemble the gun.
5. Repeat steps 2 thru 4 until shaving is eliminated. A
light accumulation of fine dust is also permissible
after feeding 1/4 of a spool during welding use.
Consumable parts Periodic replacement parts Contact tip, 0.030 wire (S19726-2) Contact tip, 0.035 wire (S19726-3) Gas diffuser (S19728) Gas cone assembly (M16294) Gun tube assembly (S19703-1) Drive roll assembly (S26236-2) Liner assembly (S26612) KP2039-2B1 KP2039-3B1 KP2040-1 KP1938-1 KP2631-1 KP2529-2 KP2632-1 10-pack 10-pack 1-piece 1-piece 1-piece 1-piece 1-piece TABLE D.2
Consumable
parts
Periodic
replacement
parts
Contact tip, 0.030 wire (S19726-2)
Contact tip, 0.035 wire (S19726-3)
Gas diffuser (S19728)
Gas cone assembly (M16294)
Gun tube assembly (S19703-1)
Drive roll assembly (S26236-2)
Liner assembly (S26612)
KP2039-2B1
KP2039-3B1
KP2040-1
KP1938-1
KP2631-1
KP2529-2
KP2632-1
10-pack
10-pack
1-piece
1-piece
1-piece
1-piece
1-piece
TABLE D.2
Mark for strain relief
