INSTALLATION
A-9

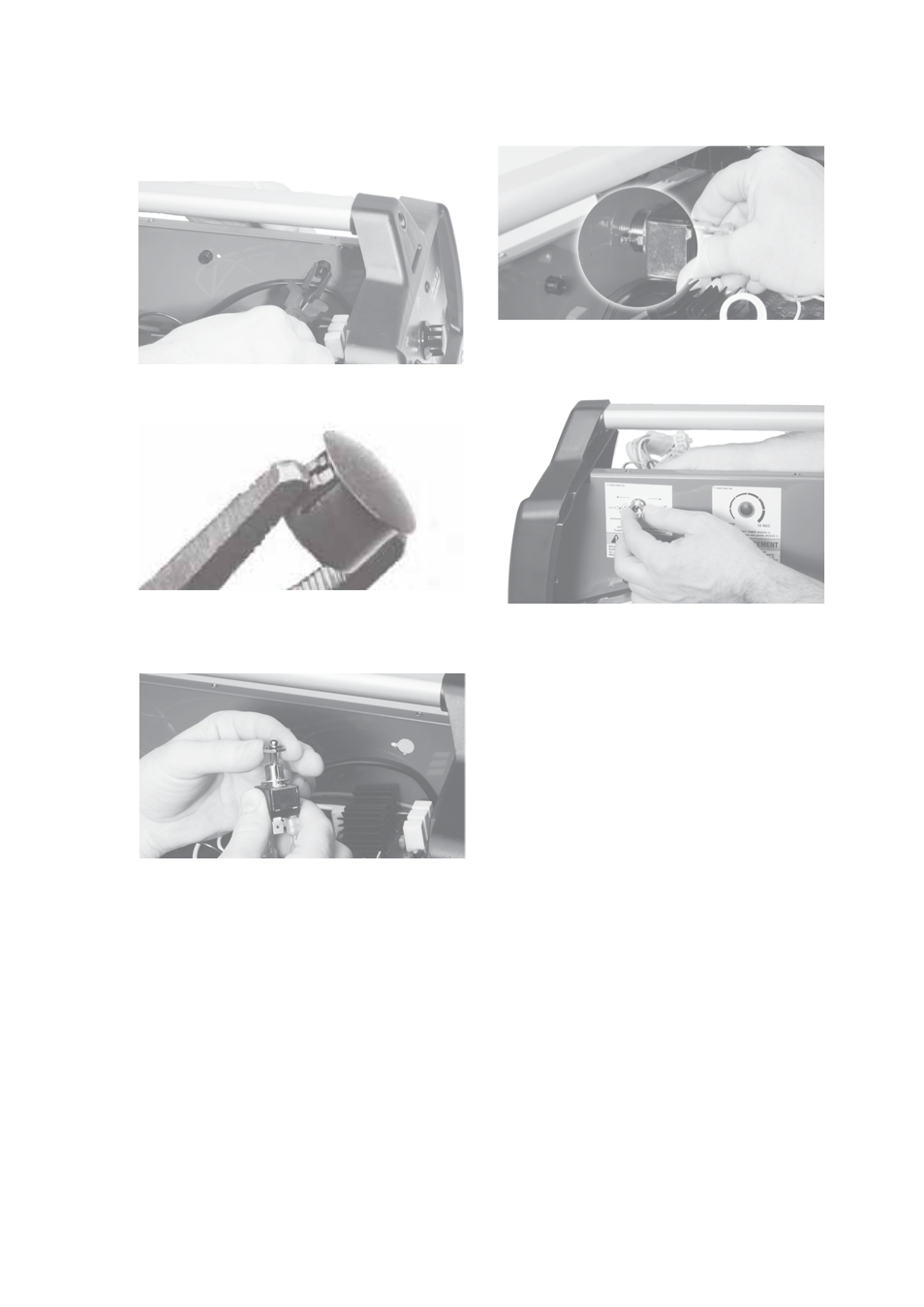

MOUNTING THE SWITCH
15. Remove the plug button from the
panel hole.
16. Plug button is no longer needed.
Discard.
17. Remove mounting nut from switch.
Keep mounting nut for installation.
18. Install switch into panel hole.
Ensure washer tab is fully seated
into smaller hole.
19. Reinstall mounting nut onto switch.
Wrench tighten.
RE-ASSEMBLE MACHINE AS
FOLLOWS:
20. Reinstall screw into plastic handle (if
so equipped).
21. Reinstall cover.
22. Reinstall door.
23. Reconnect input power to the
machine.
