INSTALLATION
A-11

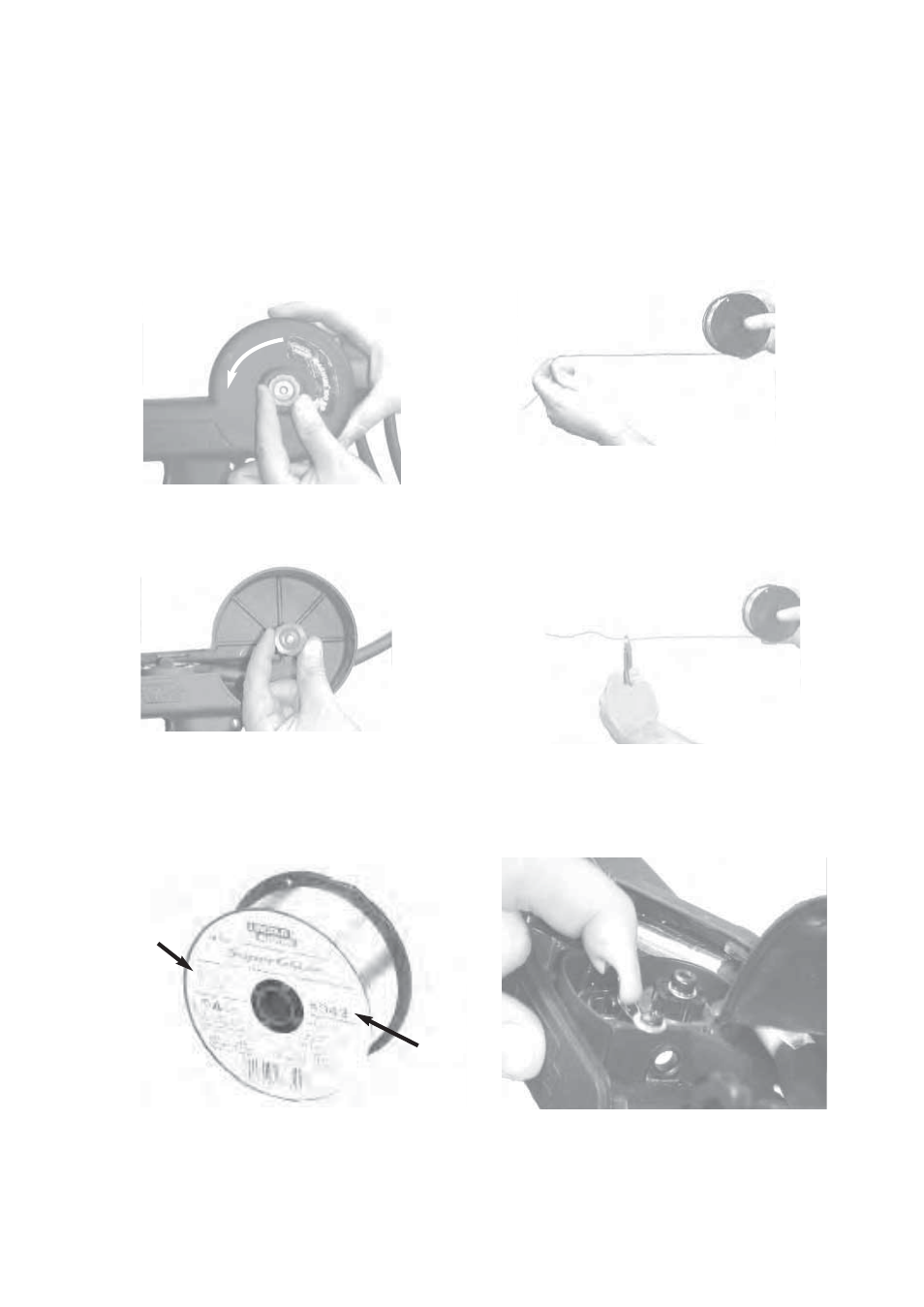

LOADING ALUMINUM WIRE
1. Remove gas cone and contact tip.
Remove spool cover by unscrewing
captive locking knob.
FIGURE A.5
2. Remove locking knob from spindle
bolt by unscrewing it.
FIGURE A.6
3. Select wire alloy and diameter need-
ed. Alloy 4043 and 0.035 wire size
shown. Remove packaging and data
sheet from wire spool.
FIGURE A.7
4. Extend approximately 12 inches
of wire from spool. Straighten it
out by back-bending it. Use care
to prevent the wire from dereeling.
FIGURE A.8
5. Cut off bent end of wire, leaving
straight section.
FIGURE A.9
6. Gently pull open the idle roll
assembly to expose the drive roll
groove.
FIGURE A.10
Alloy
Size
