A-13
INSTALLATION

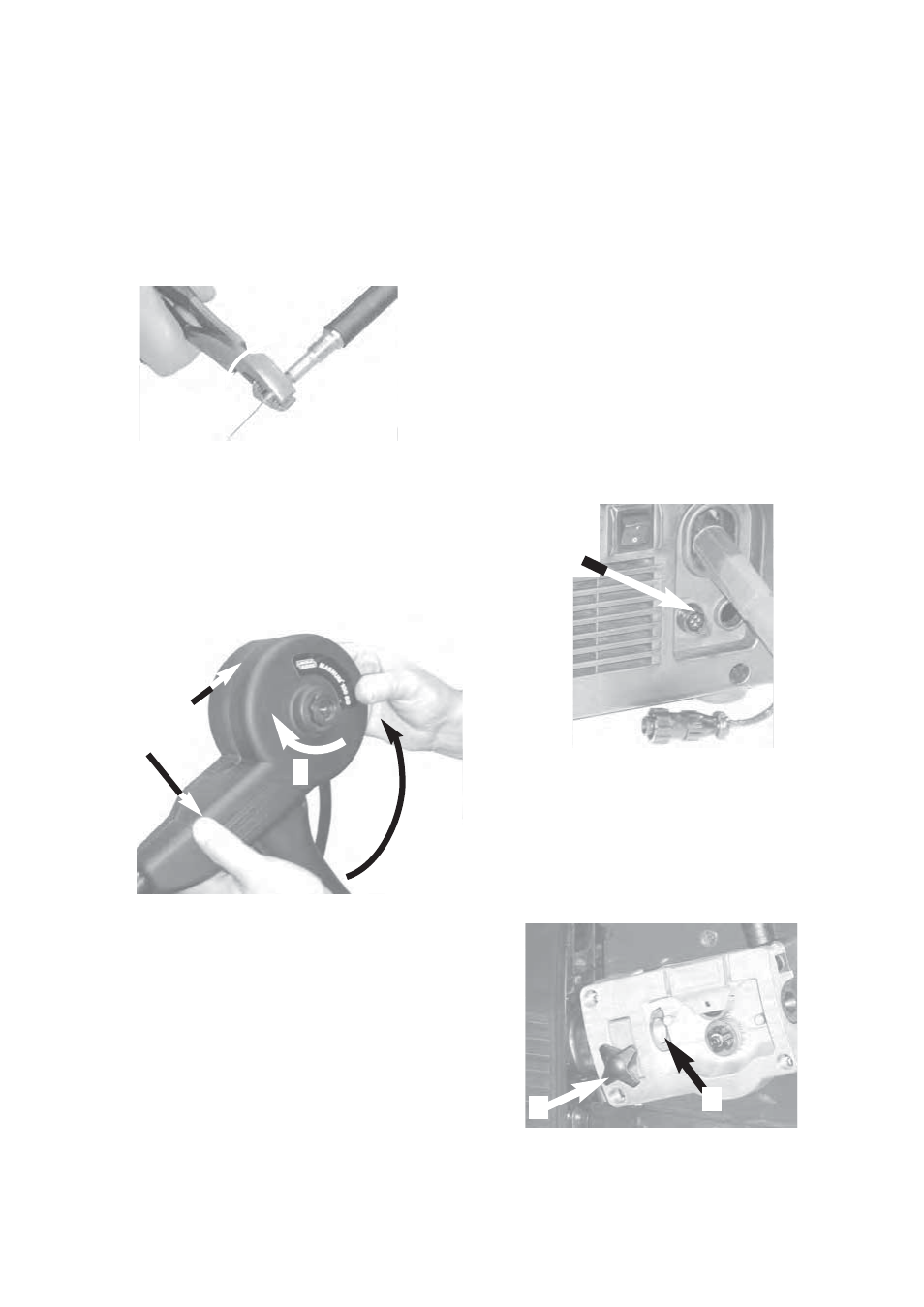

12. Cut off excess wire 1 to 2 inches
from gas diffuser. Install properly-
sized contact tip slightly past hand-
tight. Install gas cone and hand-
tighten.
FIGURE A.17
13. Reinstall spool cover. 1: tuck
coverʼs tab in place at arrow and
hold with thumb. 2: swing cover
closed. 3: finger-tighten locking
knob. 4: check for uniform fit all
around cover.
FIGURE A.18
CONNECTING THE GUN TO THE
WELDING MACHINE
1. Disconnect input power to the
machine.
2. Make sure that the gun locking knob
is loosened. (See Figure 20).
3. Fully insert gun cable connection
(welding power and gas supply) into
machine. Note that the master Key
way for P6 connector is located at
the arrow.
FIGURE A.19
4. Check that the cable connectorʼs
end is flush with insulator at A.
Tighten gun locking knob (B) onto
cable connector.
FIGURE A.20
1
2
3
4
P6
Connector
Key way
B
A
