Warning – Lincoln Electric IMt913 MAGNUM 100SG SPOOL GUN User Manual
Page 14
NOTE:
Installation of the M21182 harness and spool gun selector switch is
not required for all machines. If a spool gun switch is pre-installed in the
machineʼs wire drive compartment, then the SPOOL GUN / WIRE DRIVE
SLECTOR SWITCH INSTALLATION SECTION can be disregarded.

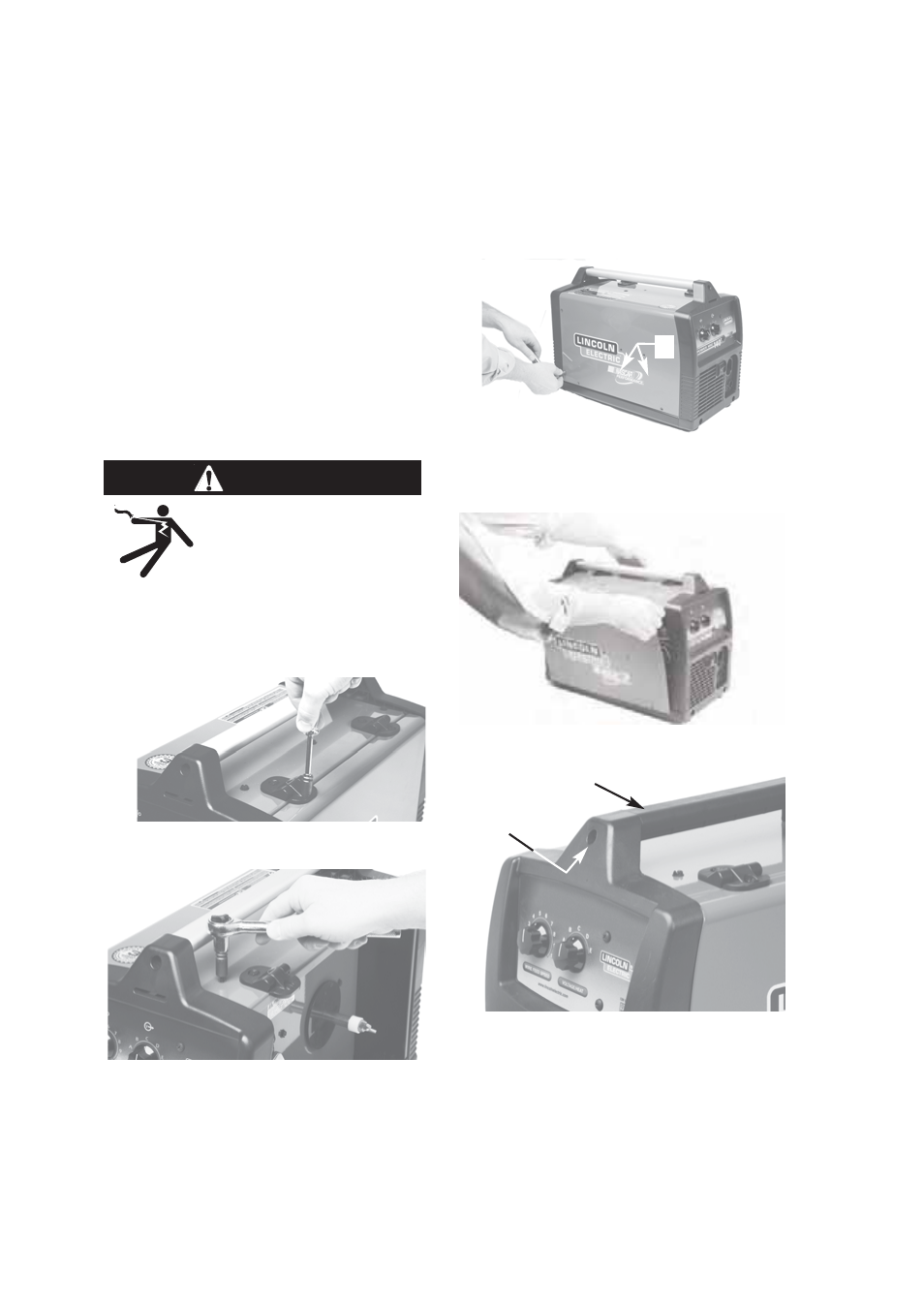

INSTALLATION
SPOOL GUN / WIRE DRIVE
SELECTOR SWITCH
INSTALLATION
1
. Install the M21182 electrical adapter
harness that came with the spool gun
per the following instructions.
ELECTRIC SHOCK CAN KILL.
2. Disconnect
input
power from the
machine.
------------------------------------------------
OPEN THE MACHINE
3. Remove two 5/16“ hex hinge screws
from door.
4. Remove ten 5/16“ hex screws from
cover.
5. Remove screws from cover.
(A) is the location of two 3/4” long
screws.
6. Remove cover.
7. If machine has a plastic handle (A),
then remove screw (B).
WARNING
A
A
B
A-6
