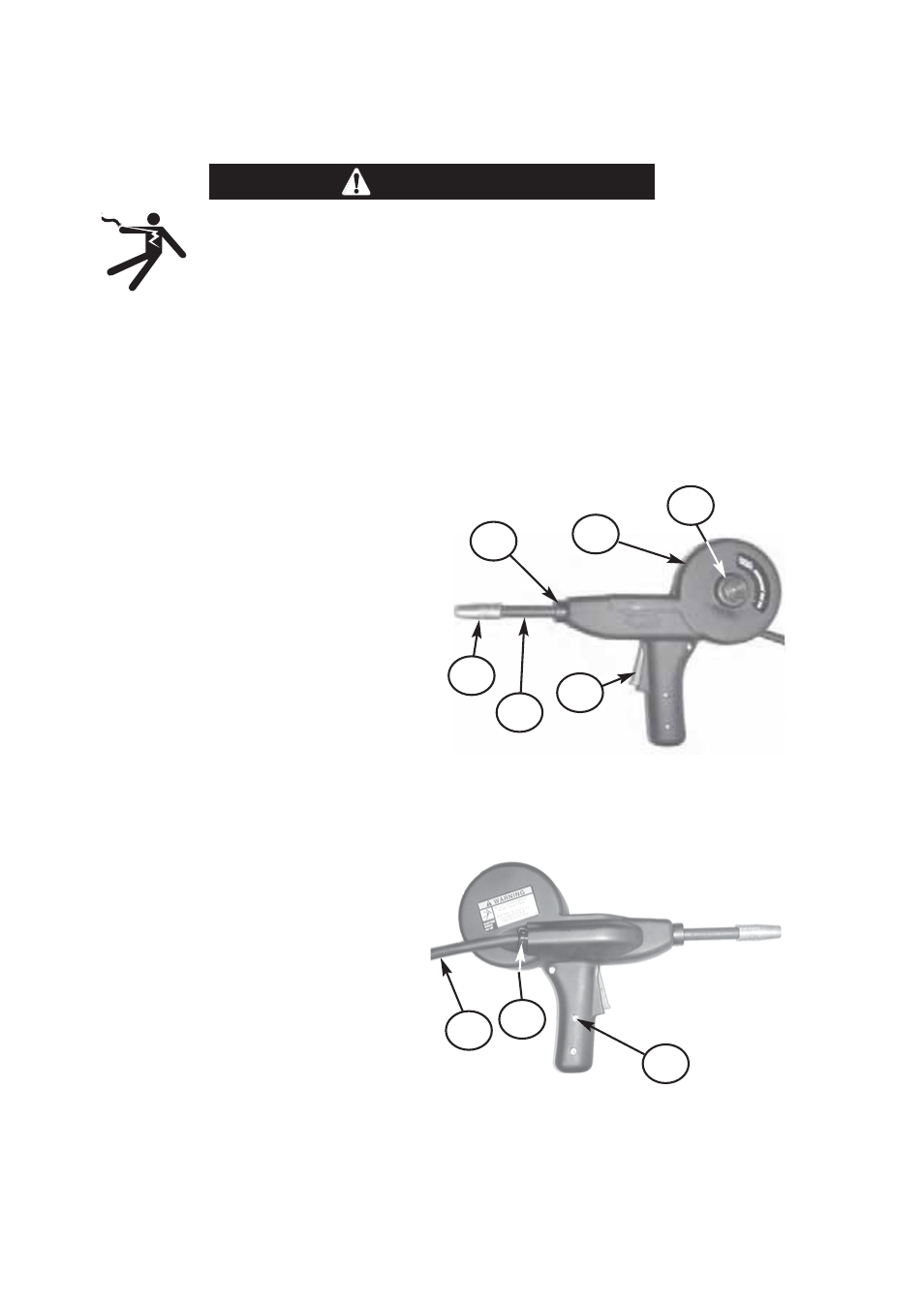

LOCATING SPOOL GUN COMPONENTS AND FEATURES
(See Figure 1.A for Items 1 thru 6)
1. Gas Cone Assembly and Contact Tip.
2. Straightened Gun Tube Assembly.
3. 1/4-Turn Locking Collar.
4. Trigger Assembly.
5. Spool Cover: Provides easy, wide-
open access to spool and wire
drive.
6. Locking Knob: Captive in spool
cover.
(See Figure A.2 for these following items)
7. Integrated Single-Piece Cable:
The Magnum ® design provides
neat and clean appearance; sim-
plifies cable management and
reduces entanglements.
8. Standard Durable Strain Relief
Clamp.
9. Three Captive Hex Nuts.
FIGURE A.1
Left Side View
1
4
3
5
5
2
FIGURE A.2
Right Side View
7
8
9
A-2
INSTALLATION
SAFETY PRECAUTIONS
ELECTRIC SHOCK CAN KILL.
• Turn the input power OFF at the welding power source before
installation or changing drive rolls and/or guides.
• Do not touch electrically live parts.
• When inching with the gun trigger, electrode and drive mechanism
are "hot" to work and ground and could remain energized several
seconds after the gun trigger is released.
-----------------------------------------------------------------------------------------------------
WARNING
