WAFER-LX User Manual
Advanced Chipset Features
The Advanced Chipset Features menu (BIOS Menu 7) allows you to change the configuration
for the chipset configuration options.

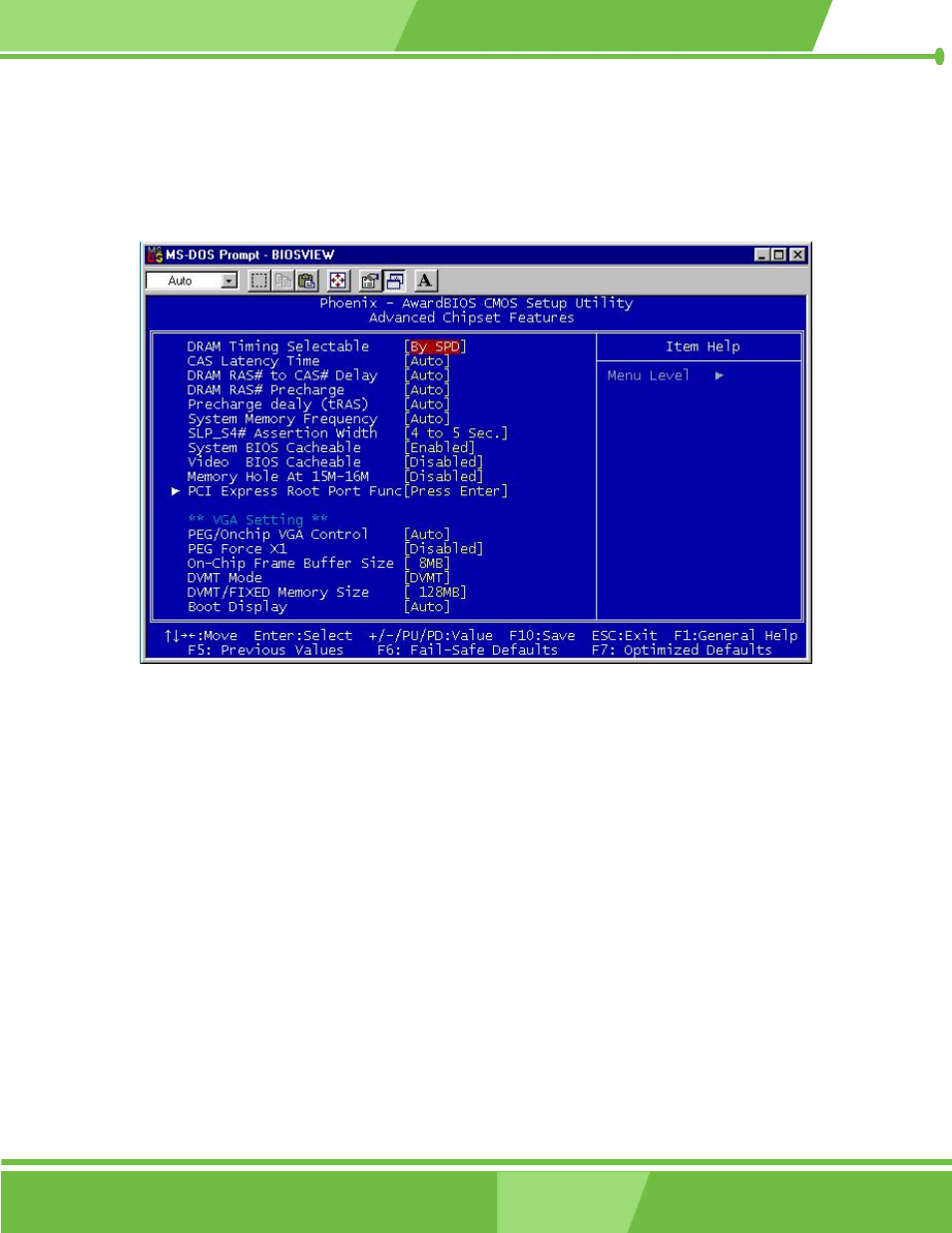

BIOS Menu 7: Advanced Chipset Features
DRAM Latency Timing [By SPD]
The DRAM Latency Timing configuration option allows you to select whether the manufacturer
recommended settings for the following DRAM configuration options are automatically detected by
the BIOS or if you manually select the DRAM settings. The DRAM configuration options are:
1. CAS Latency Time [4]
2. DRAM RAS# to CAS# Delay [4]
3. DRAM RAS# Precharge [4]
4. Precharge Delay (tRAS) [12]
5. System Memory Frequency [533MHz]
