WAFER-LX

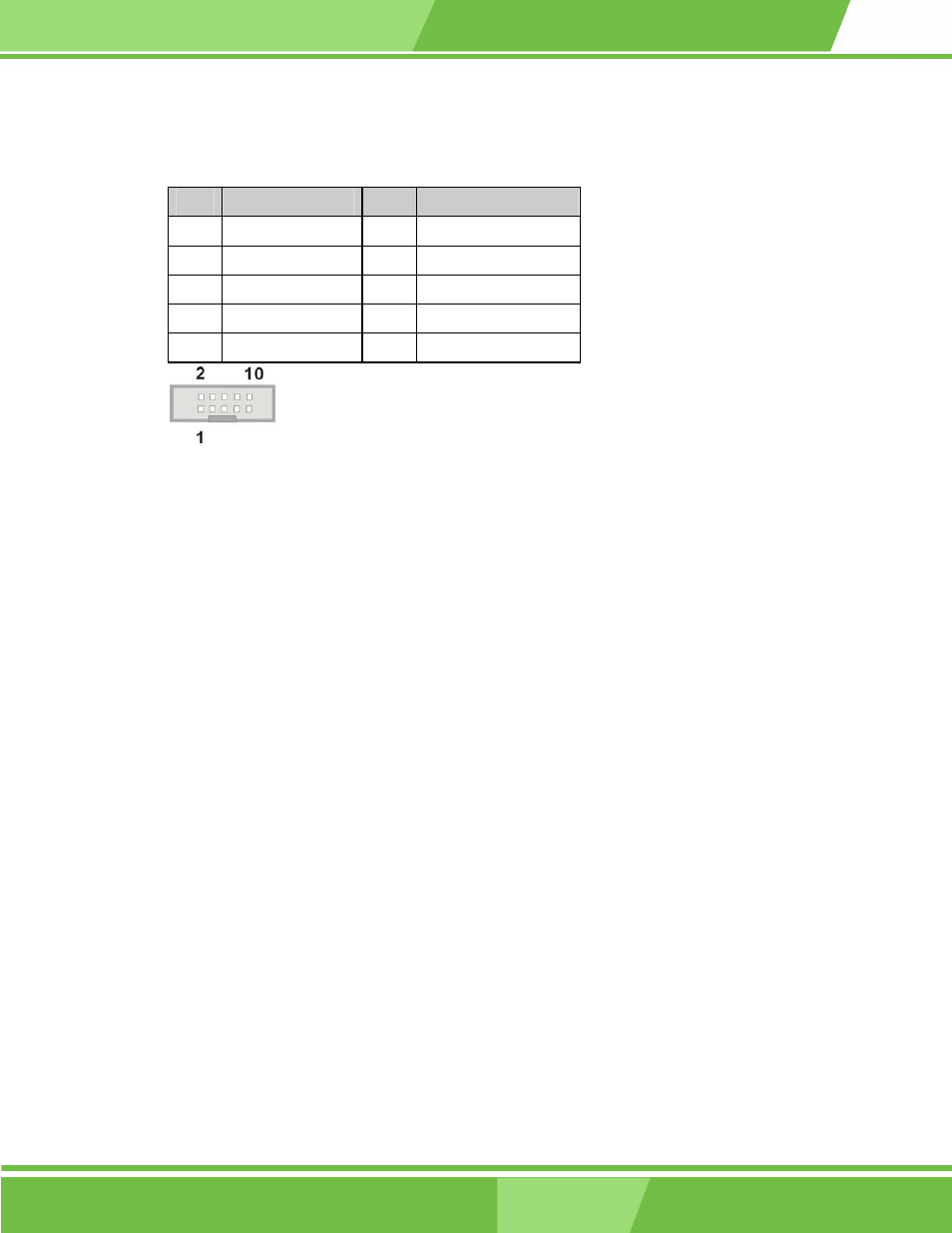

Table 2-8 CN8 Audio Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 LINE OUT R 2 LINE IN R
3 GROUND 4 GROUND
5 LINE OUT L 6 LINE IN L
7 GROUND 8 GROUND
9 MIC IN 10 N/C
Figure 2-10 CN8 Audio Port
9. CN9: - functionality not implemented
