WAFER-LX
NOTE:
1. If you want to use the RS485 mode, just connect to TX2-, TX2+. If
you want to use the RS422, please connect to TX2-, TX2+, RX2+,
and RX2-.
2. Please refer to Chapter 3 for details on serial port operation modes.
17. CN17: Keyboard/Mouse Pin Header
This port connects to a PS/2 keyboard or mouse using a 6-pin-to-PS/2 adapter cable. An
adapter cable, 6-pin-to-two PS/2, is required (IEI part no.: 32200-000052)
Table 2-18 CN17 Keyboard/Mouse Header Pinouts
PIN DESCRIPTION
1 +5V
2 MS_DATA
3 MS_CLK
4 KB_DATA
5 KB_CLK
6 GND

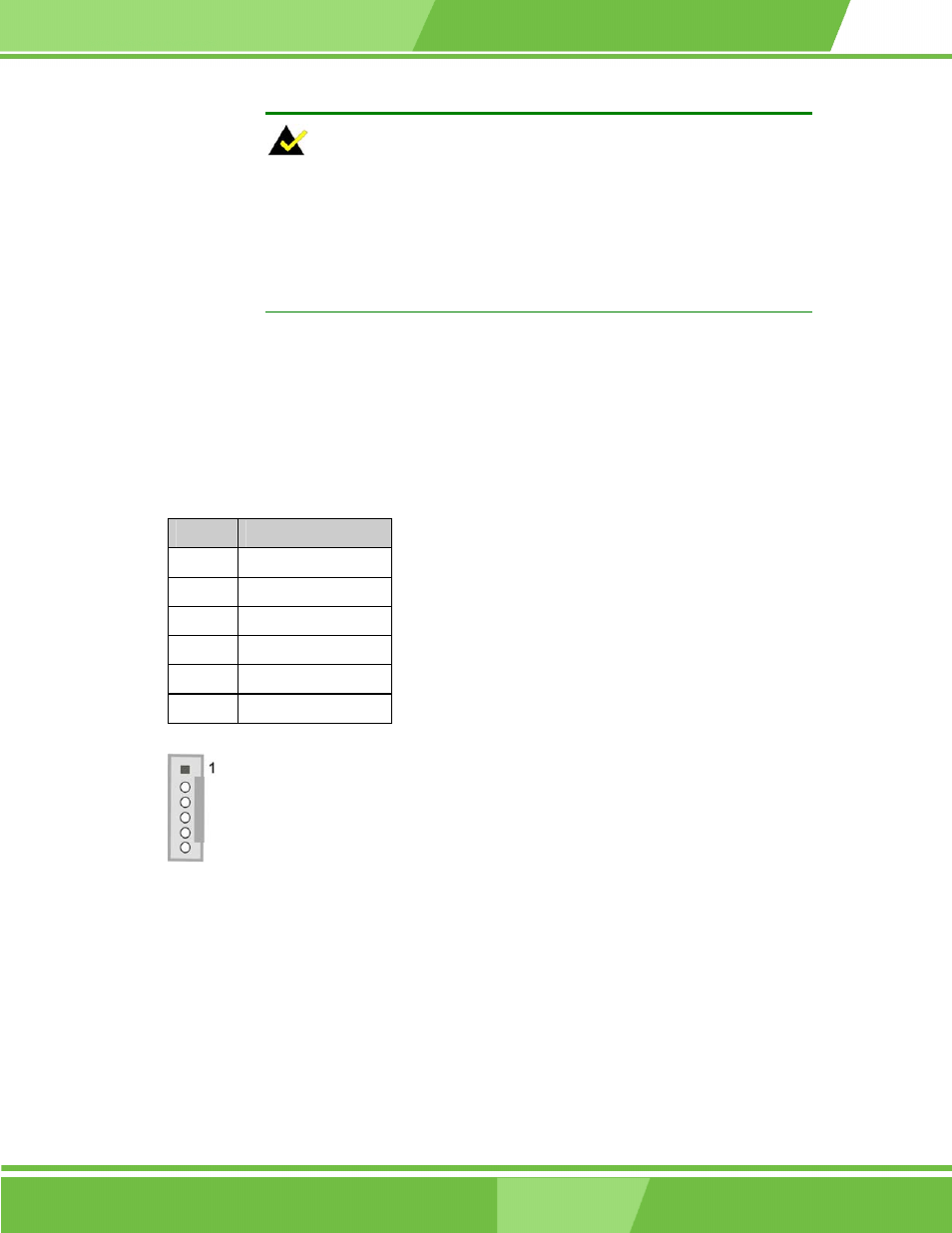

Figure 2-17 CN17 Keyboard/Mouse Pin Header
18. CN18:
This functionality is not implemented.
