2.2.1 Internal
Connectors
1. CN1: Power 4P Connector
The WAFER-LX-R10 is equipped with an onboard external power connector, CN1. You can
connect power directly to CN1 or mount a PC/104 compact-size power supply module on top
of the board through the PC/104 interface.
Table 2-3 CN1: Power 4P Connector
PIN DESCRIPTION
1 +5V
2 GND
3 GND
4 +12V

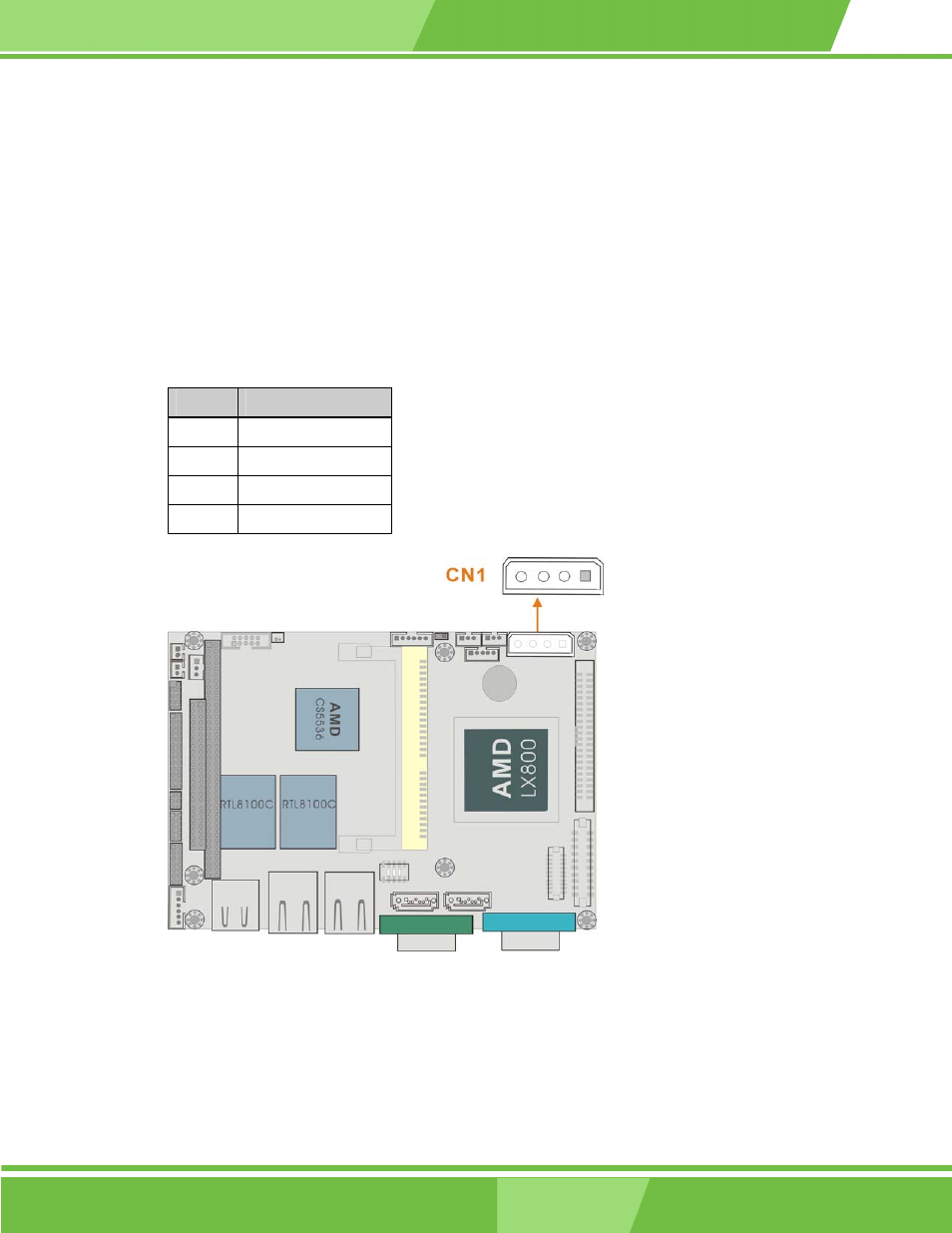

Figure 2-5 Power 4P Connector
2. CN2: SBVCC ATX Power Feature Connector
