WAFER-LX
24. CN29: LVDS Panel Display Connector
LVDS LCD (18-bit) 2x15 pin header 1.25mm (DF13-20DP-1.25V)
Table 2-23 CN29 LVDS Connector Pinouts
PIN DESCRIPTION PIN DESCRIPTION
2 GND 1 GND
4 LVD0- 3 LVD0+
6 LVD1- 5 LVD1+
8 LVD2- 7 LVD2+
10 LVDCK- 9 LVDCK+
12 N/C 11 N/C
14 GROUND 13 GROUND
16 N/C 15 N/C
18 LVD_VCC5 17 LVD_VCC5
20 LVD_VCC3 19 LVD_VCC3

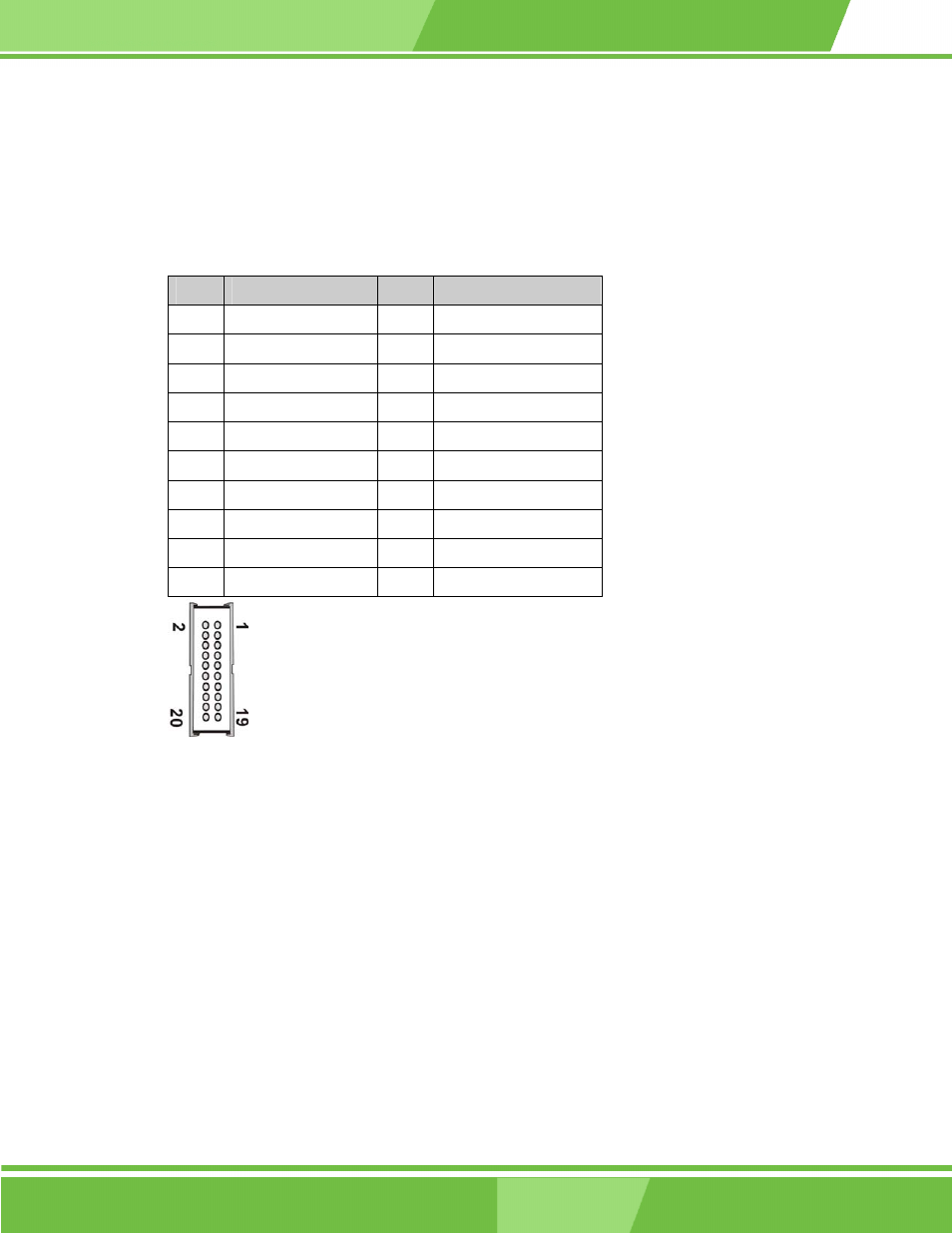

Figure 2-22 CN29 LVDS Panel Display Connector
25. CN30: IDE Connector
One IDE connector can connect to one (1) IDE cable, and the single IDE cable can then
connect to two IDE devices. An optional IDE adapter cable from IEI is available; the part
number is 32200-008800.
