WAFER-LX
2.2.2 Front Panel Connectors

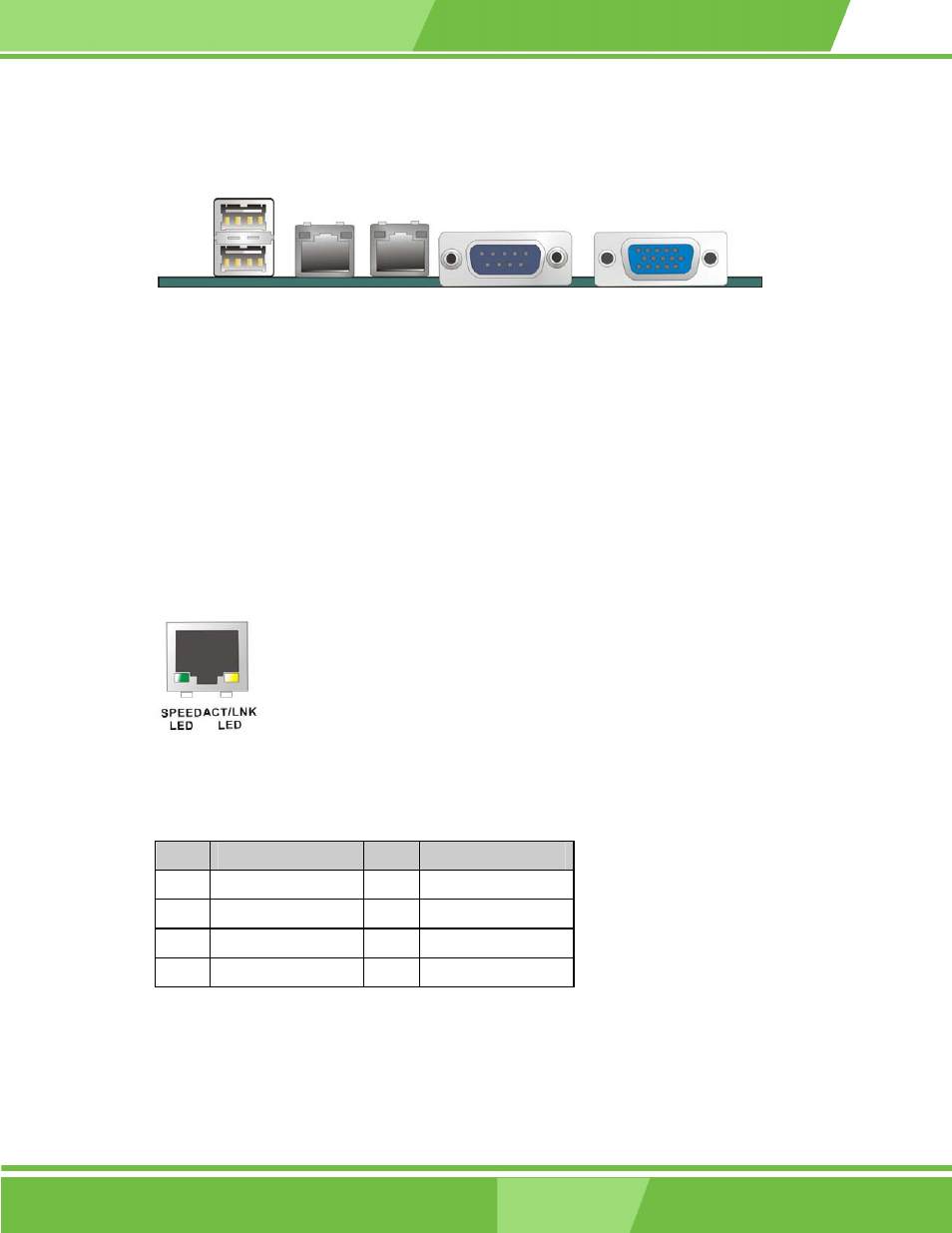

Figure 2-25 Front Panel Connectors
CN19: USB Combo Connector (2 Ports)
The combo connector provides two USB ports. These two USB ports connect to USB1.1
devices.
CN20 & CN21: 10/100BaseT Ethernet (RJ-45) Ports
These RJ-45 connectors provide 10/100BaseT Ethernet connection to a local or internet
network. Refer to the table below for the Ethernet port LED indication.
Figure 2-26 10/100BaseT Ethernet (RJ-45) Port
Table 2-27 Ethernet Port Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 TX- 5 N/C
2 N/C 6 RX-
3 TX- 7 N/C
4 RX+ 8 N/C
