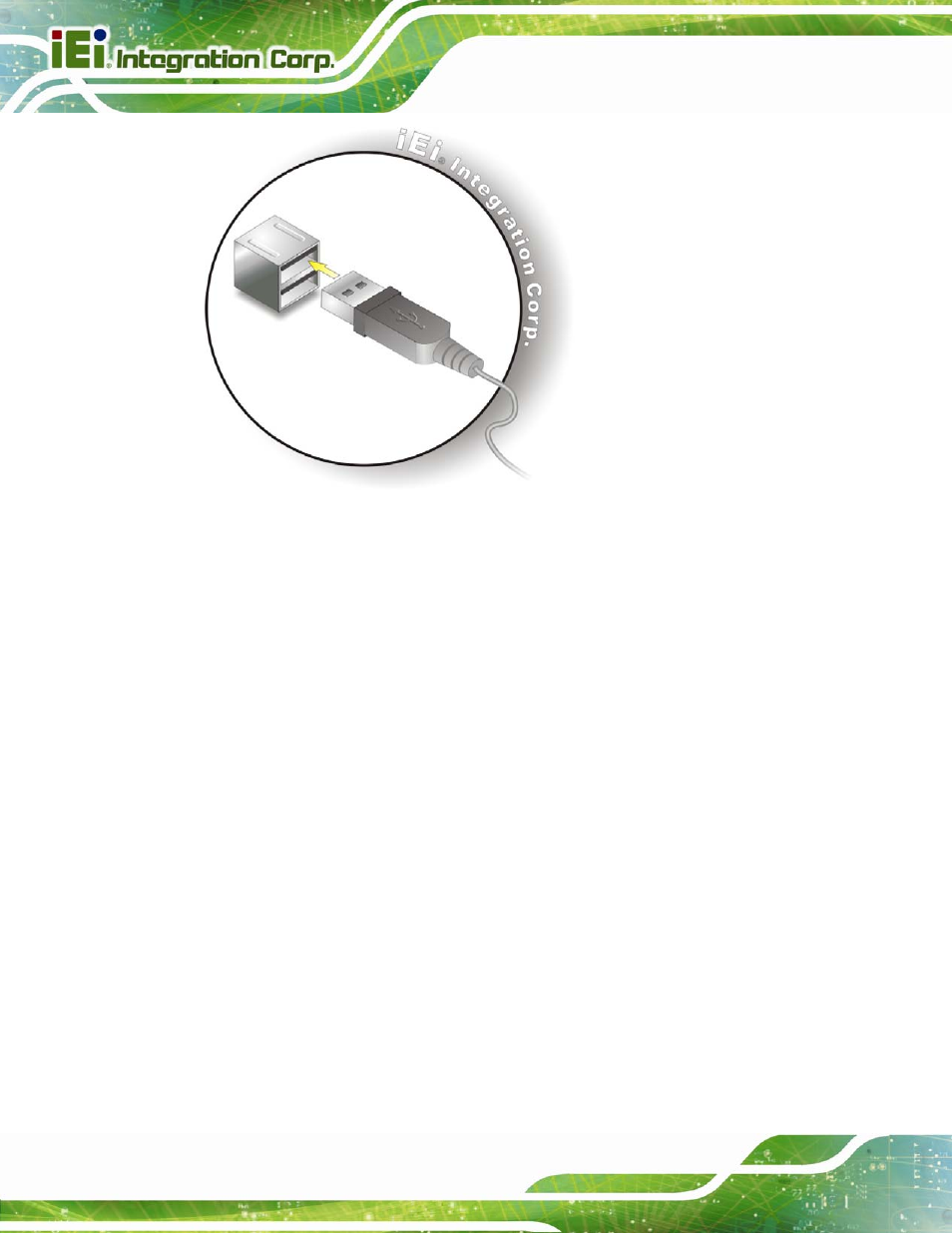

Figure 4-16: USB Connector

4.8.6 VGA Monitor Connection

The KINO-CV-D25501/N26001 has a single female D-sub 15 connector on the external

peripheral interface panel. The D-sub 15 connector is connected to a CRT or VGA monitor.

To connect a monitor to the KINO-CV-D25501/N26001, please follow the instructions

below.

Step 1:

Locate the female D-sub 15 connector. The location of the female D-sub 15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male D-sub 15 connector on the VGA

screen cable with the female D-sub 15 connector on the external peripheral

interface.

Step 3:

Insert the VGA connector

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

KINO-CV-D25501/N26001. See Figure 4-17.
