KINO-CV-D25501/N26001 SBC

Page 36

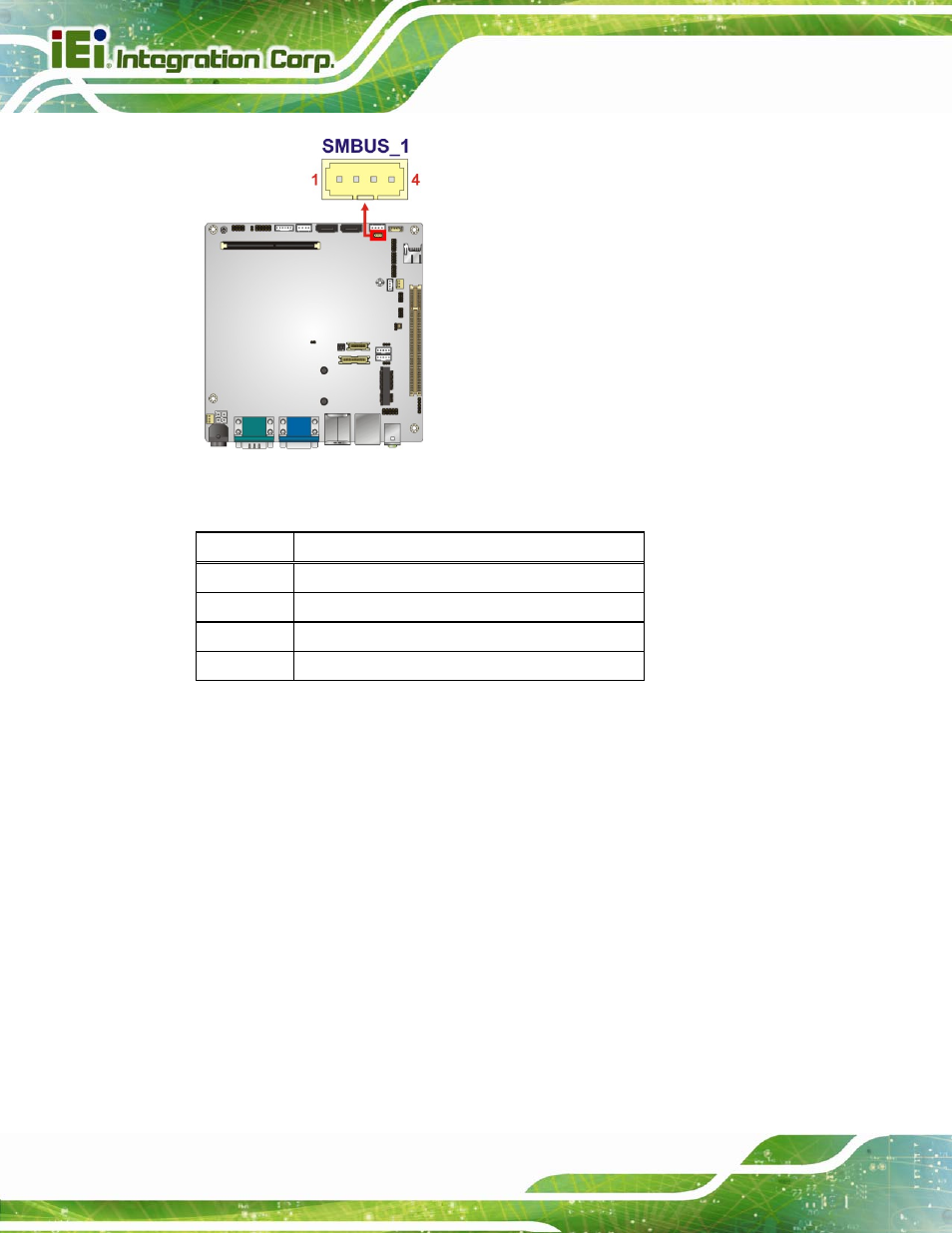

Figure 3-19: SMBus Connector Location

Pin Description

1 GND

2 SMBDATA

3 SMBCLK

4 +5V

Table 3-20: SMBus Connector Pinouts

3.2.19 SO-DIMM Connector

CN Label:

DIMM1

CN Type:

204-pin DDR3 SO-DIMM connector

CN Location:

See Figure 3-20

The SO-DIMM connector is for installing memory on the system.
