KINO-CV-D25501/N26001 SBC
Page 34

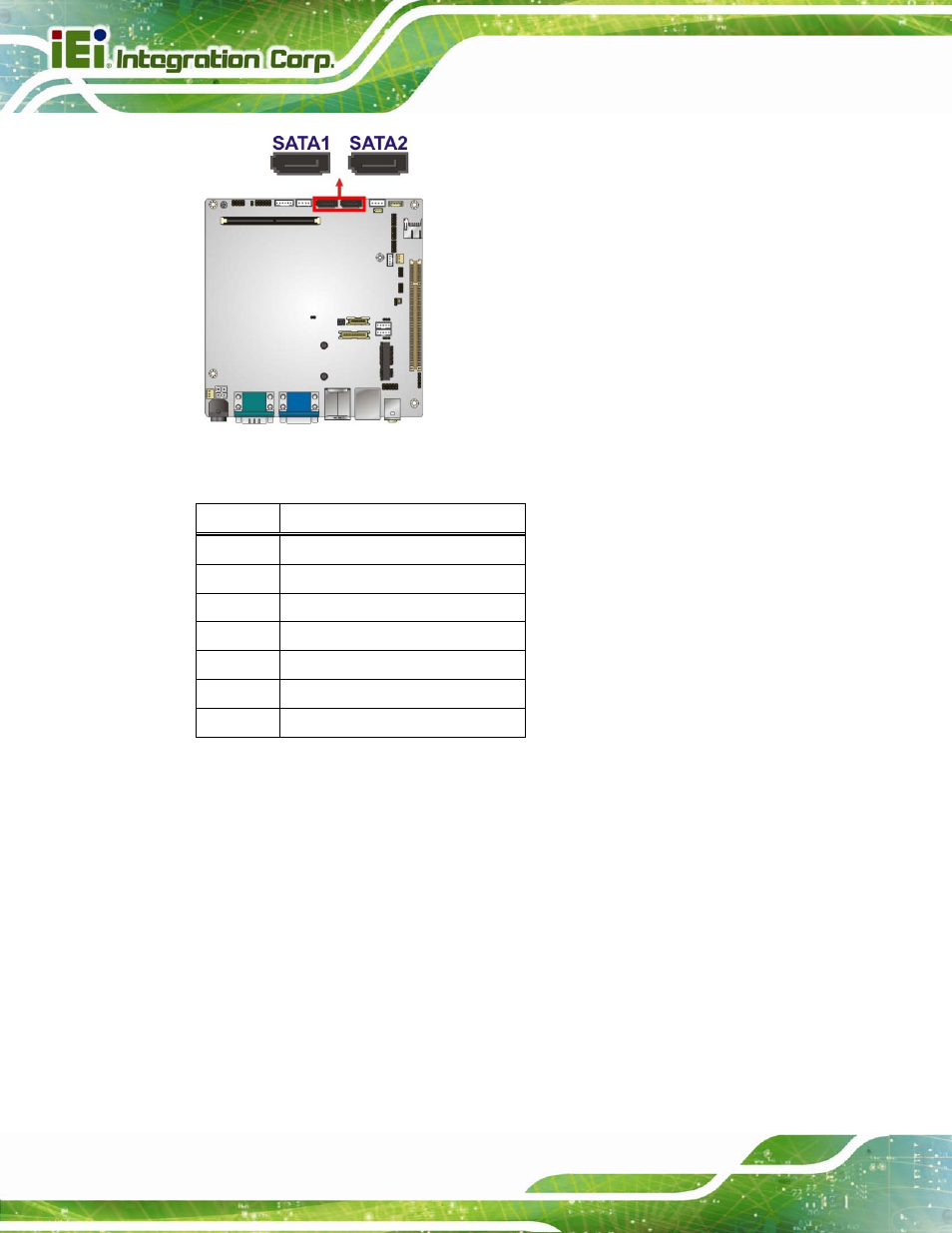

Figure 3-17: SATA Drive Connector Location
Pin Description
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-18: SATA Drive Connector Pinouts
3.2.17 SATA Power Connectors
CN Label: SATA_PWR1, SATA_PWR2
CN Type: 4-pin wafer
CN Location: See Figure 3-18
CN Pinouts: See Table 3-19
Use the SATA Power Connector to connect to SATA device power connections.
