KINO-CV-D25501/N26001 SBC

Page 39

3.2.22 USB 2.0 Connectors

CN Label:

USB2, USB3

CN Type:

8-pin header

CN Location:

See Figure 3-23

CN Pinouts:

See Table 3-23

The USB header can connect to two USB devices.

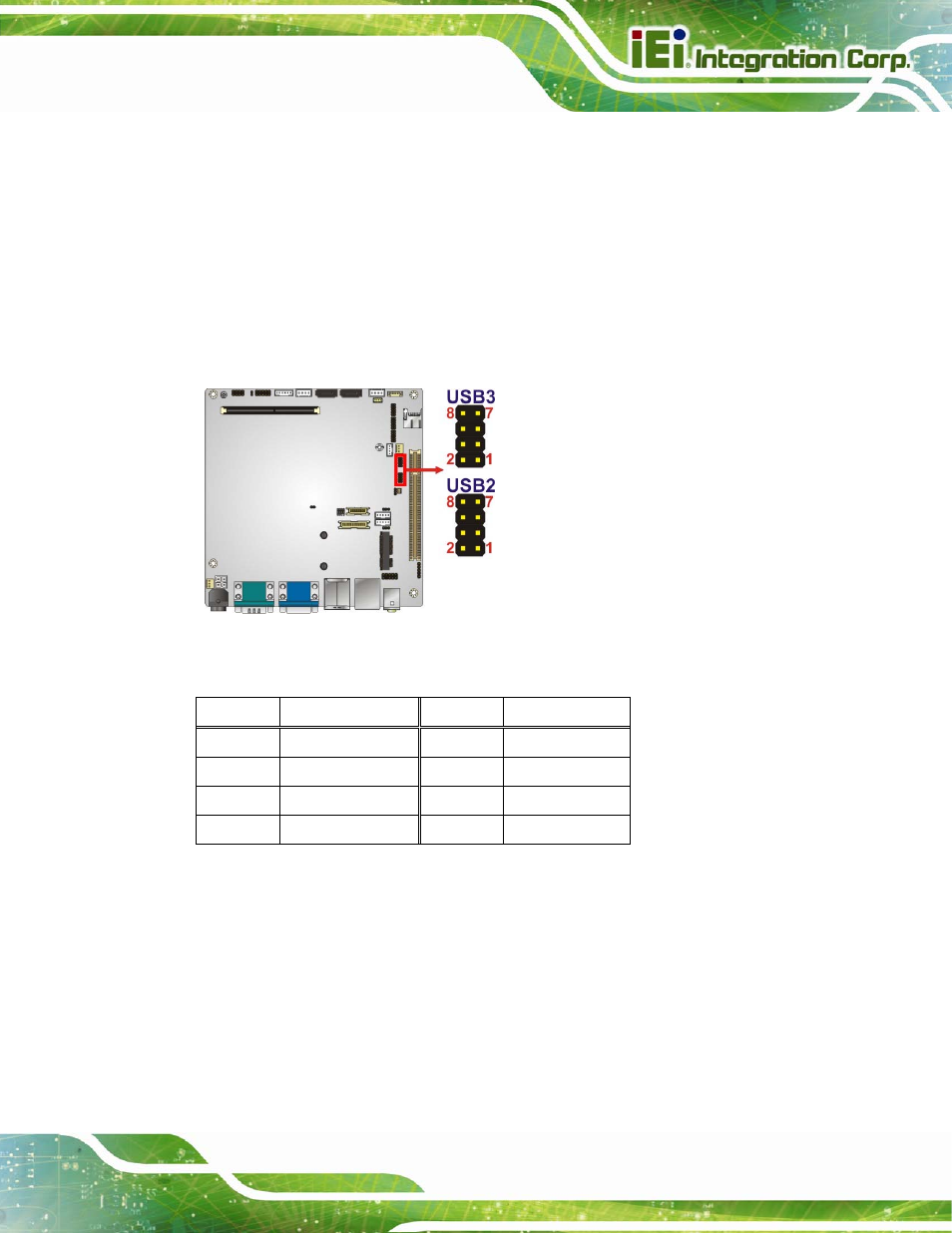

Figure 3-23: USB Connector Locations

Pin Description Pin Description

1 VCC

2 GND

3 DATA-

4 DATA+

5 DATA+

6 DATA-

7 GND

8 VCC

Table 3-23: USB Port Connector Pinouts
