KINO-CV-D25501/N26001 SBC
Page 27
CN Pinouts: See Table 3-12
A microSD card can be installed in the microSD card slot.

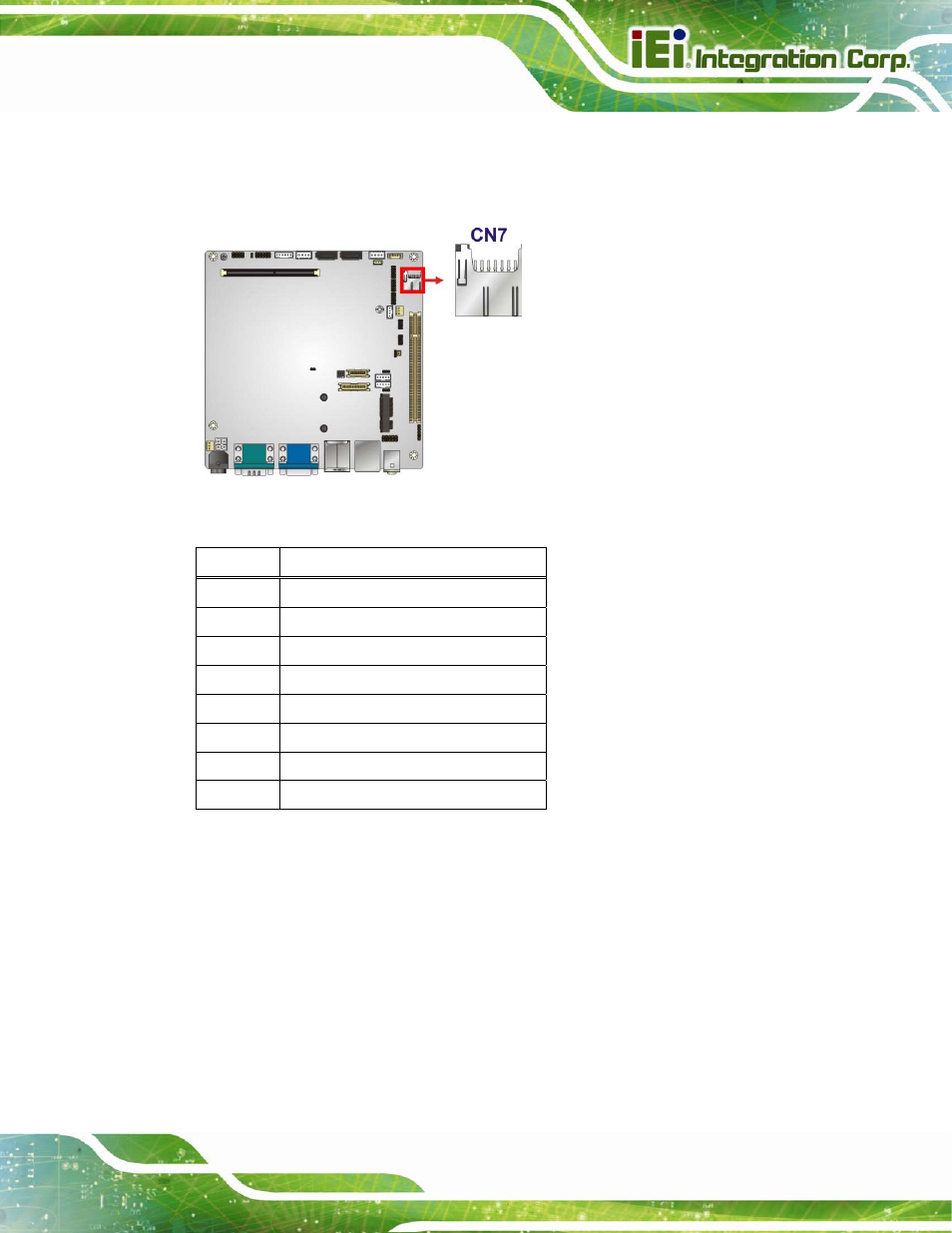

Figure 3-11: microSD Slot Location
Pin Description
1 DAT2
2 DAT3
3 CMD
4
VDD
5
CLK
6 VSS1
7 DAT0
8 DAT1
Table 3-12: microSD Slot Connector Pinouts
3.2.11 PCIe Mini Card Slot
CN Label: M_PCIE1
CN Type: PCIe Mini card slot
CN Location: See Figure 3-12
CN Pinouts: See Table 3-13
