KINO-CV-D25501/N26001 SBC
Page 42
PIN DESCRIPTION
3 Data+
4 GND
Table 3-26: USB Port Pinouts

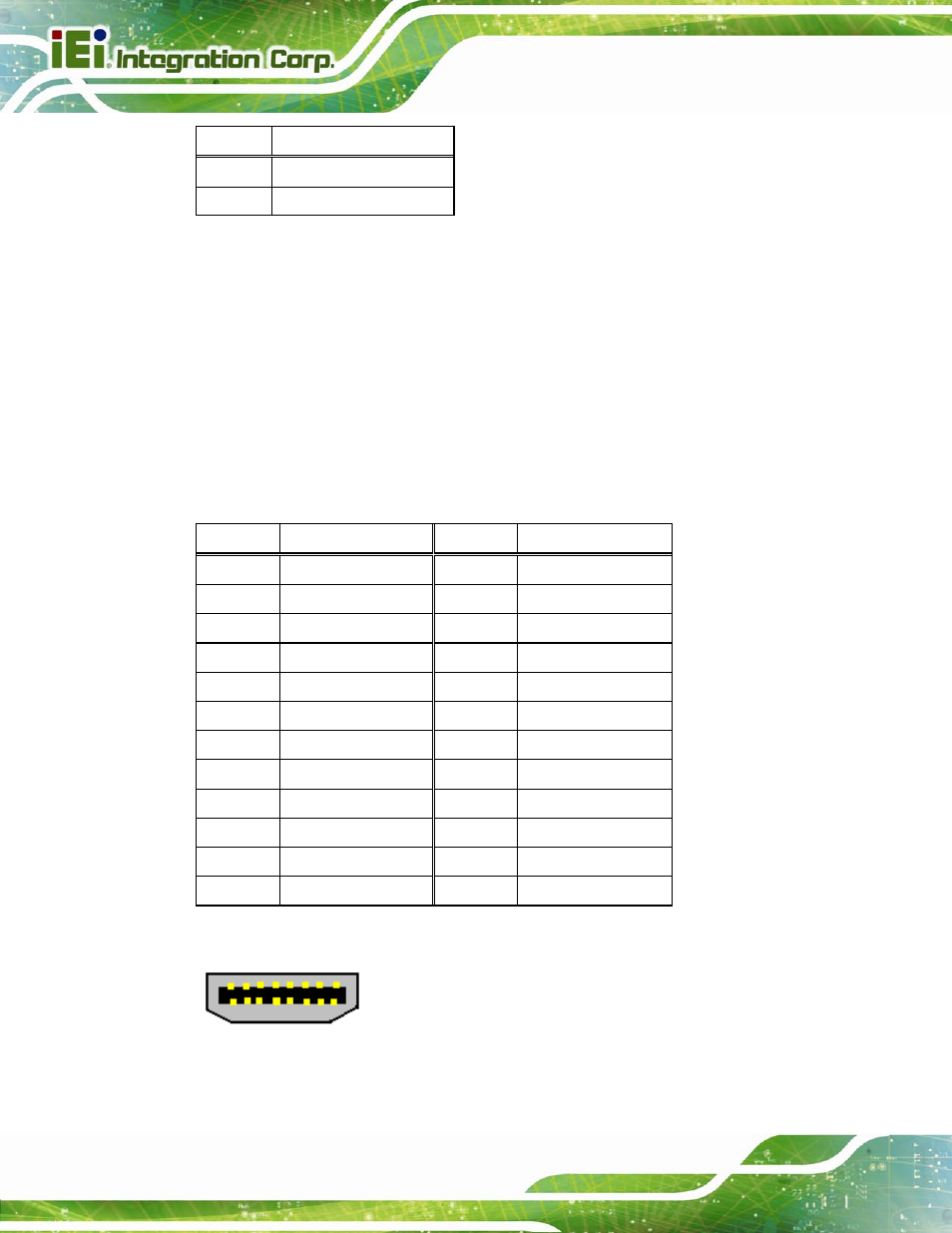

3.3.3 HDMI Connector
CN Label: HDMI1
CN Type: HDMI connector
CN Location: See Figure 3-24
CN Pinouts: See Table 3-27 and Figure 3-27
The HDMI connector connects to a display device with HDMI interface.
Pin Description Pin Description
1 HDMI_DATA2 13 N/C
2 GND 14 N/C
3 HDMI_DATA2# 15 HDMI_SCL
4 HDMI_DATA1 16 HDMI_SDA
5 GND 17 GND
6 HDMI_DATA1# 18 +5V
7 HDMI_DATA0 19 HDMI_HPD
8 GND 20 HDMI_GND
9 HDMI_DATA0# 21 HDMI_GND
10 HDMI_CLK 22 HDMI_GND
11 GND 23 HDMI_GND
12 HDMI_CLK#
Table 3-27: HDMI Connector Pinouts
Figure 3-27: HDMI Connector
