KINO-CV-D25501/N26001 SBC

Page 43

3.3.4 Power Connector (9 V–28 V, Power Adapter)

CN Label:

PWR1

CN Type:

4-pin DIN

CN Location:

See Figure 3-24

CN Pinouts:

See Figure 3-28

The connector supports the 9 V–28 V power adapter.

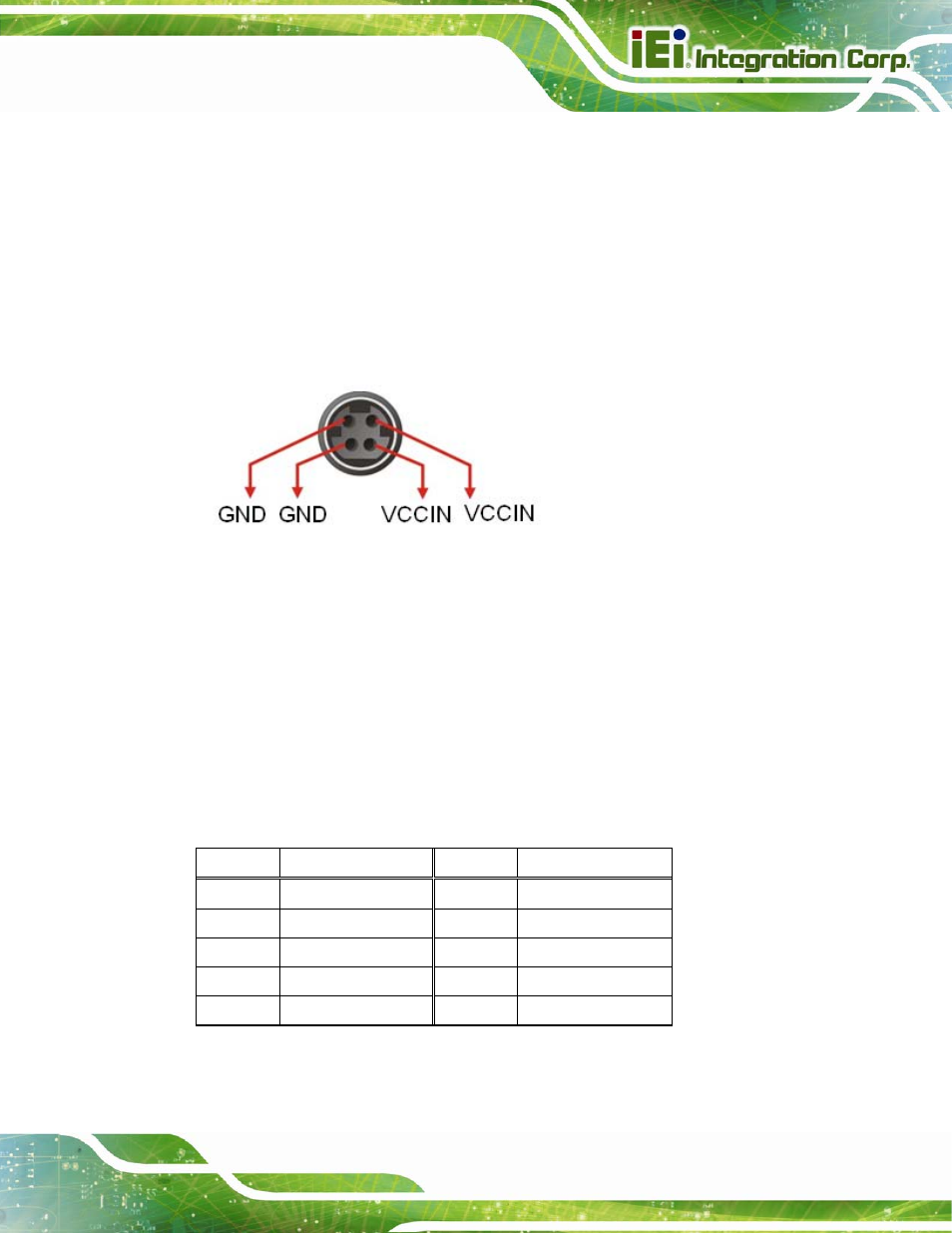

Figure 3-28: 4-pin Power DIN Connection

3.3.5 Serial Port Connectors (COM1, COM2)

CN Label:

COM1

CN Type:

D-sub 9 Male connector

CN Location:

See Figure 3-24

CN Pinouts:

See Table 3-28 and Figure 3-29

The RS-232 serial connector provides serial connection in the RS-232 mode.

Pin Description Pin Description

1 DCD

6 DSR

2 RXD

7 RTS

3 TXD

8 CTS

4 DTR

9 RI

5 GND

Table 3-28: Serial Port Pinouts
