KINO-CV-D25501/N26001 SBC

Page 50

Step 4:

Removing a SO-DIMM. To remove a SO-DIMM, push both handles outward.

The memory module is ejected by a mechanism in the socket.

Step 0:

4.4 PCIe Mini Card Installation

To install the PCIe Mini card, please refer to the diagram and instructions below.

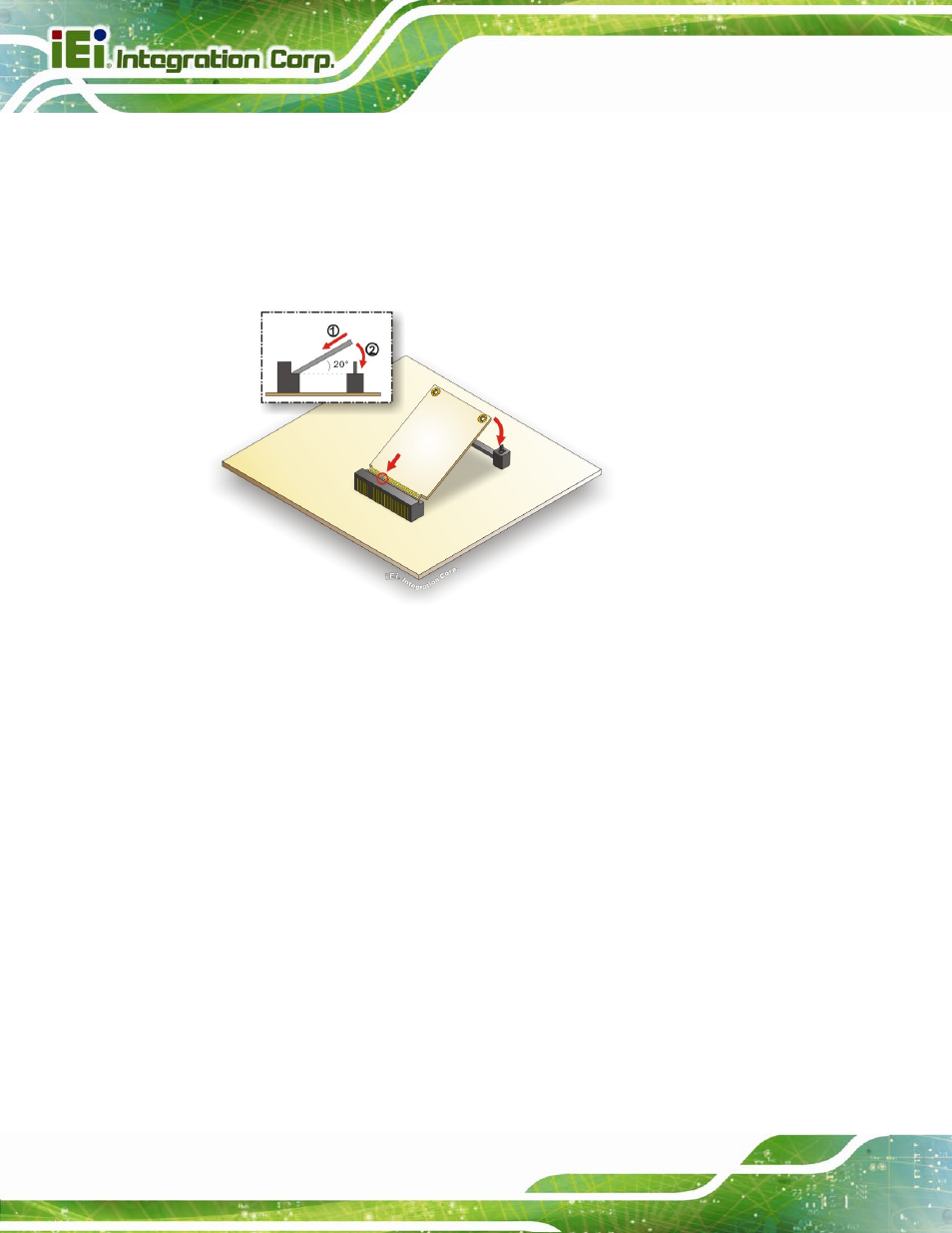

Figure 4-2: PCIe Mini Card Installation

Step 1:

Insert into the socket at an angle. Line up the notch on the card with the notch

on the connector. Slide the PCIe Mini card into the socket at an angle of about

20º.

Step 2:

Push down until the card clips into place. Push the other end of the card

down until it clips into place on the plastic connector.

Step 0:
