KINO-CV-D25501/N26001 SBC

Page 18

3.2.1 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

CN Label:

CN1

CN Type:

2-pin wafer

CN Location:

See Figure 3-2

CN Pinouts:

See Table 3-3

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

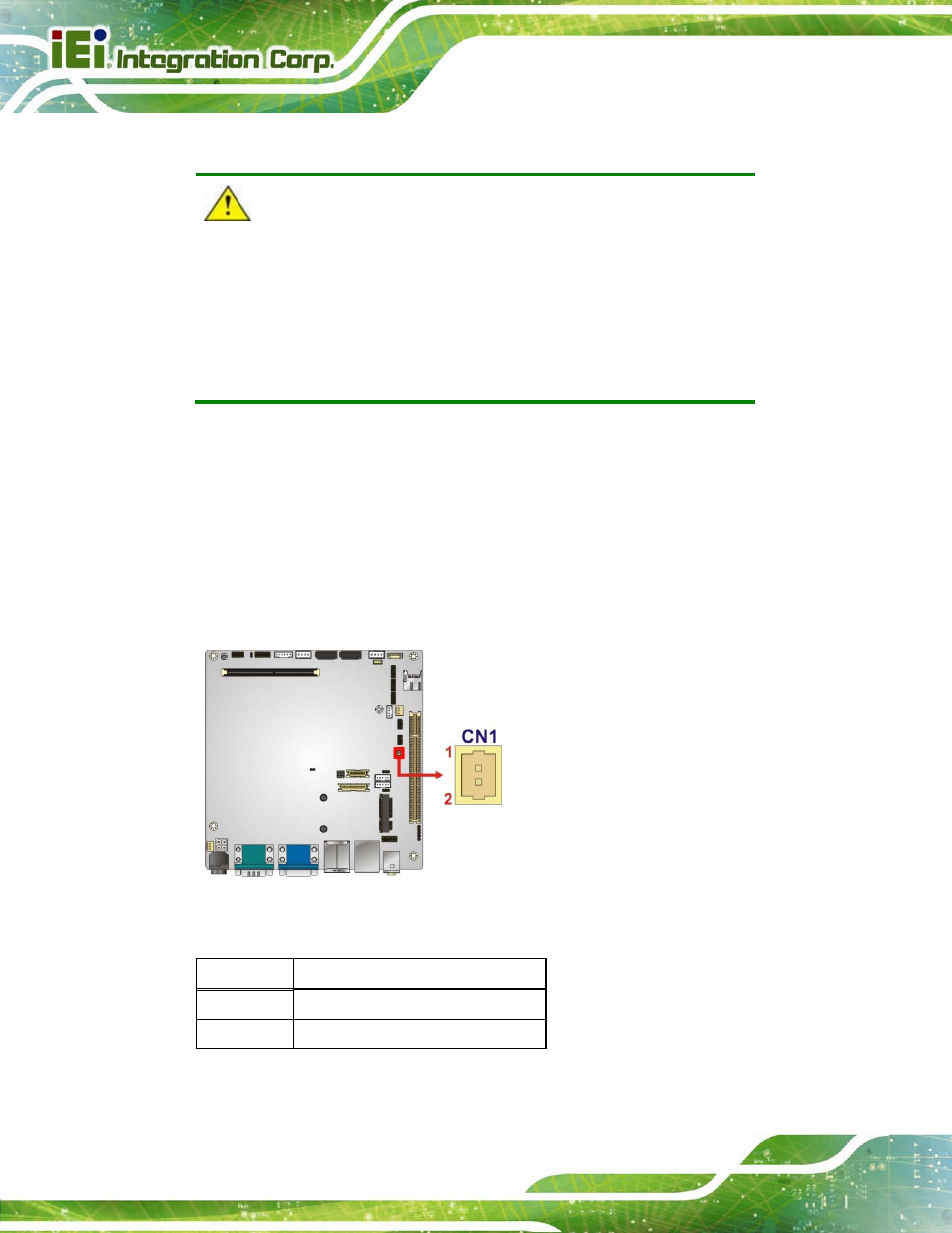

Figure 3-2: Battery Connector Location

Pin Description

1 Battery+

2 Ground

Table 3-3: Battery Connector Pinouts
