KINO-CV-D25501/N26001 SBC

Page 41

3.3.2 Ethernet and USB Connector

CN Label:

LAN1_USB1, LAN2_USB2

CN Type:

RJ-45, USB 2.0 and USB 3.0 connectors

CN Location:

See Figure 3-24

CN Pinouts:

See Table 3-24

The LAN connector connects to a local network.

PIN

DESCRIPTION

PIN

DESCRIPTION

1

MDIA3-

5

MDIA2+

2

MDIA3+

6

MDIA1+

3

MDIA1-

7

MDIA0-

4

MDIA2-

8

MDIA0+

Table 3-24: LAN Pinouts

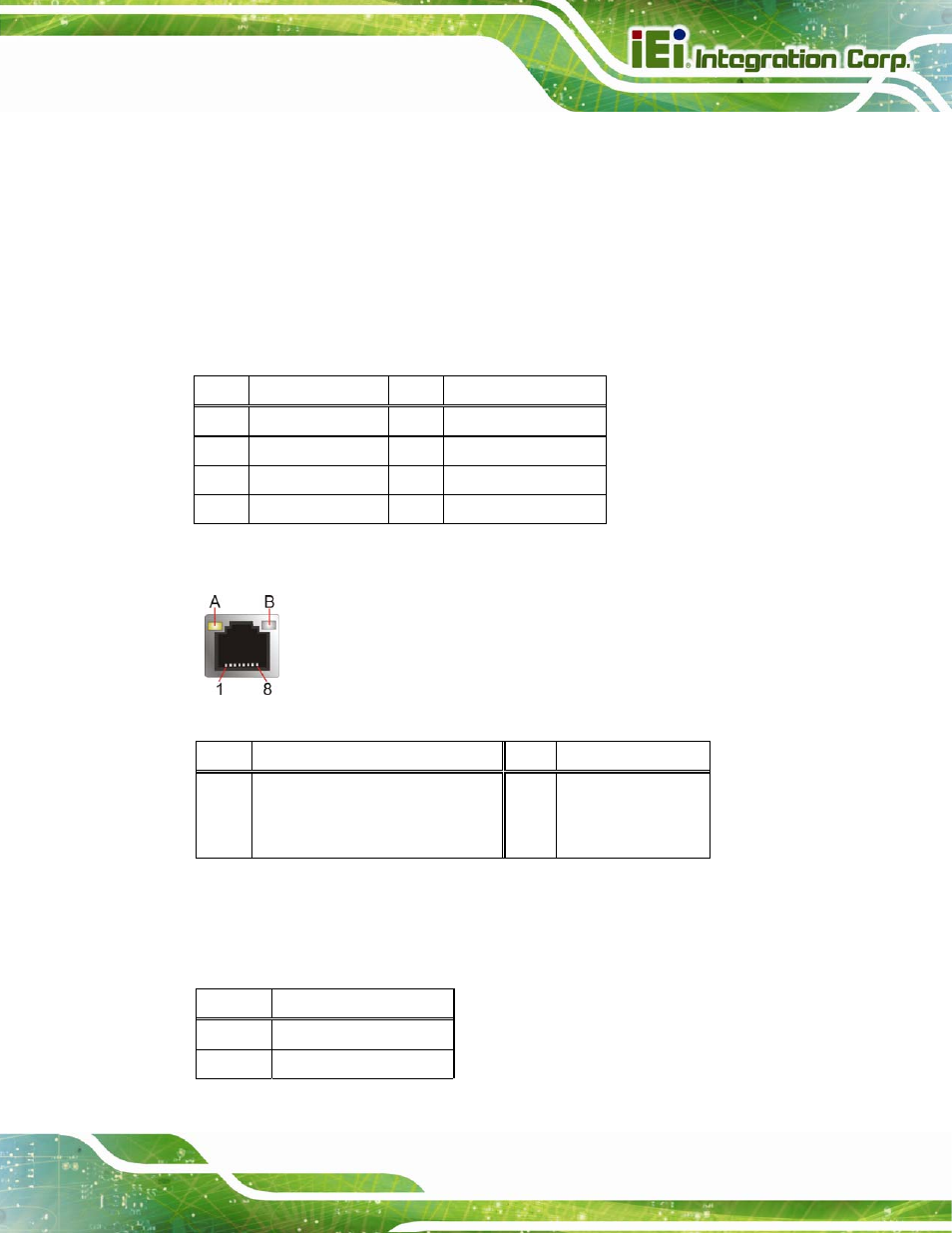

Figure 3-26: Ethernet Connector

LED Description

LED Description

A on:

linked

blinking: data is being sent/received

B

off: 10 Mb/s

green: 100 Mb/s

orange: 1000 Mb/s

Table 3-25: Connector LEDs

The USB connector can be connected to a USB device. The USB 3.0 ports are labeled as

USB1 and the USB 2.0 ports are labels as USB2. Please refer to Figure 1-2.

PIN

DESCRIPTION

1

5 V

2

Data-
