KINO-CV-D25501/N26001 SBC
Page 52
Jumper Location: See Figure 4-3
Set both of the jumpers select AT or ATX power mode for the KINO-CV-D25501/N26001.
AT power mode limits the system to on/off. ATX allows the system to use various power
saving states and enter a standby state, so the system can be turned on remotely over a
network. The settings on both jumpers should be the same.
Pin Description
Closed ATX mode (Default)
Open AT mode
Table 4-2: AT/ATX Mode Selection

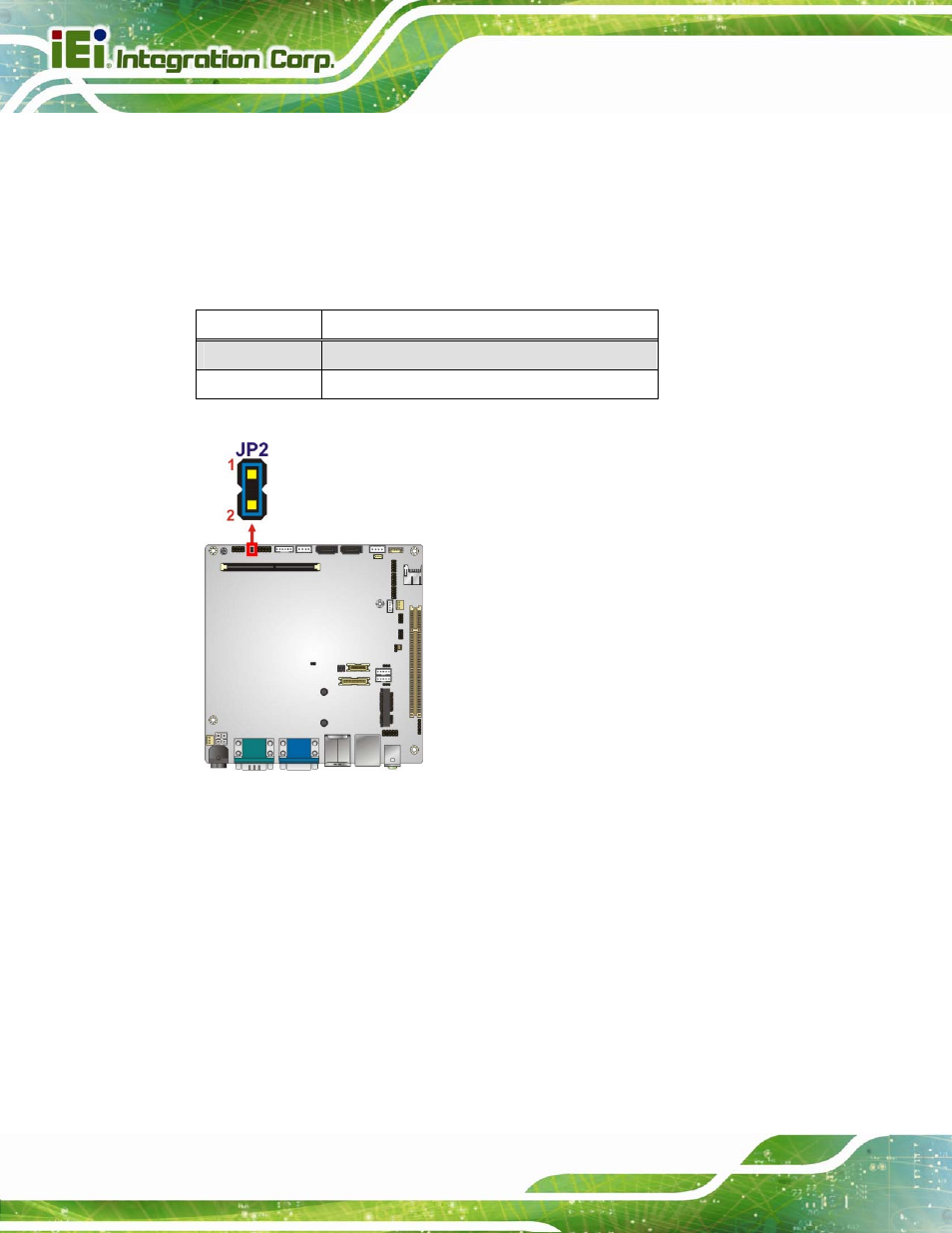

Figure 4-3: AT/ATX Mode Selection Jumper Location
4.5.2 Clear CMOS Jumper
Jumper Label: JP3
Jumper Type: 3-pin header
Jumper Settings: See Table 4-3
Jumper Location: See Figure 4-4
If the KINO-CV-D25501/N26001 fails to boot due to improper BIOS settings, the clear
CMOS jumper clears the CMOS data and resets the system BIOS information. To do this,
