1.1 Introduction

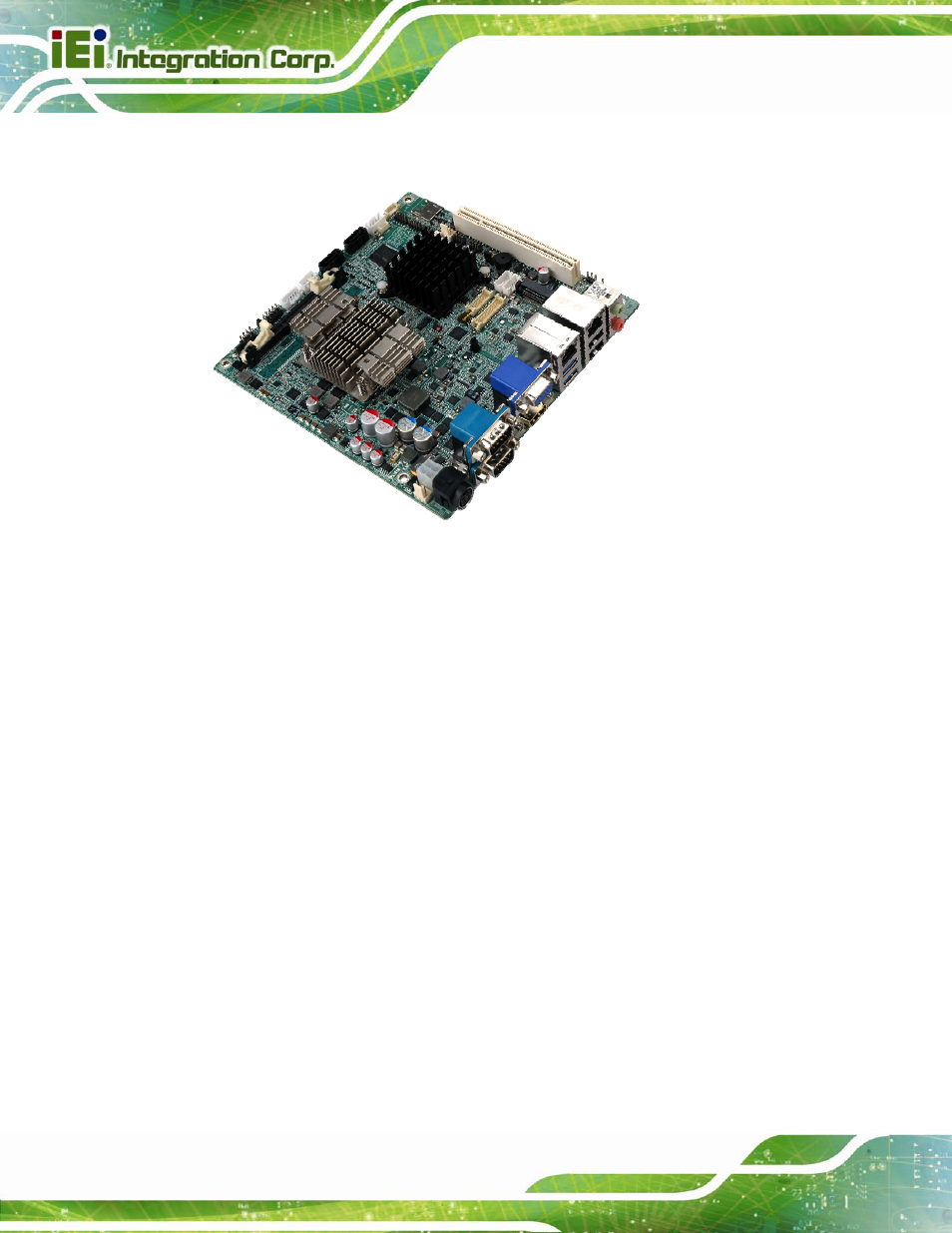

Figure 1-1: KINO-CV-D25501/N26001
The KINO-CV-D25501/N26001 is a Mini-ITX SBC with a Intel® Atom™ processor D2550
or N2600. The KINO-CV-D25501/N26001 is designed for fanless operation. The low
power CPUs don't require active cooling and stay within specified heat range using the
included heatsink.
Storage on the board is handled by a SATA 3Gb/s port for connecting a hard drive, optical
drive or SSD. The PCIe Mini slot allows an mSATA card to be installed. A bootable
microSD card can be installed into the on-board microSD slot.
The board has three types of graphics output. A VGA output connects to a traditional VGA
monitor, one HDMI connector supports HDMI display and two LVDS connectors support
18-bit/24-bit displays.
Other slots and connectors include a PCIe Mini cards slot, PCI slot, RS-232, RS-422/485,
Gigabit Ethernet, USB 3.0 ports, USB 2.0 ports and digital I/O.
