KINO-CV-D25501/N26001 SBC
Page 23

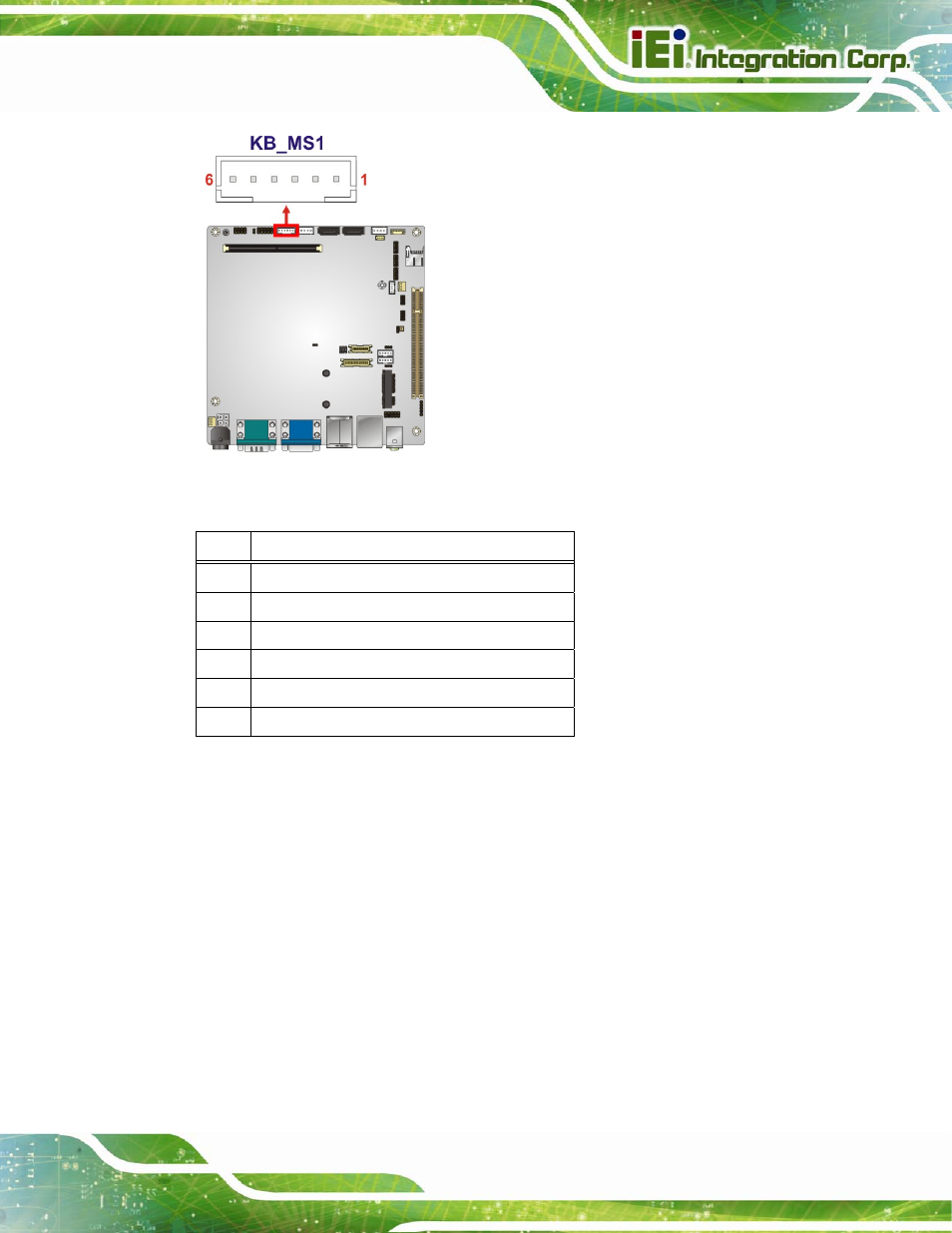

Figure 3-7: Keyboard/Mouse Connector Location
Pin Description
1 VCC
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 GND
Table 3-8: Keyboard/Mouse Connector Pinouts
3.2.7 LVDS Connector (LVDS1)
CN Label: LVDS1
CN Type: 20-pin crimp
CN Location: See Figure 3-8
CN Pinouts: See Table 3-9
The LVDS connector is for an LCD panel connected to the board.
