KINO-CV-D25501/N26001 SBC

Page 38

Pin Description

1 VCC

AUDIO

2 NC

3 SPDIF

OUT

4 GND

5 SPDIF

IN

Table 3-21: SPDIF Connector Pinouts

3.2.21 SPI Flash Connector

CN Label:

JSPI1

CN Type:

6-pin header

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-22

The 6-pin SPI Flash connector is used to flash the BIOS.

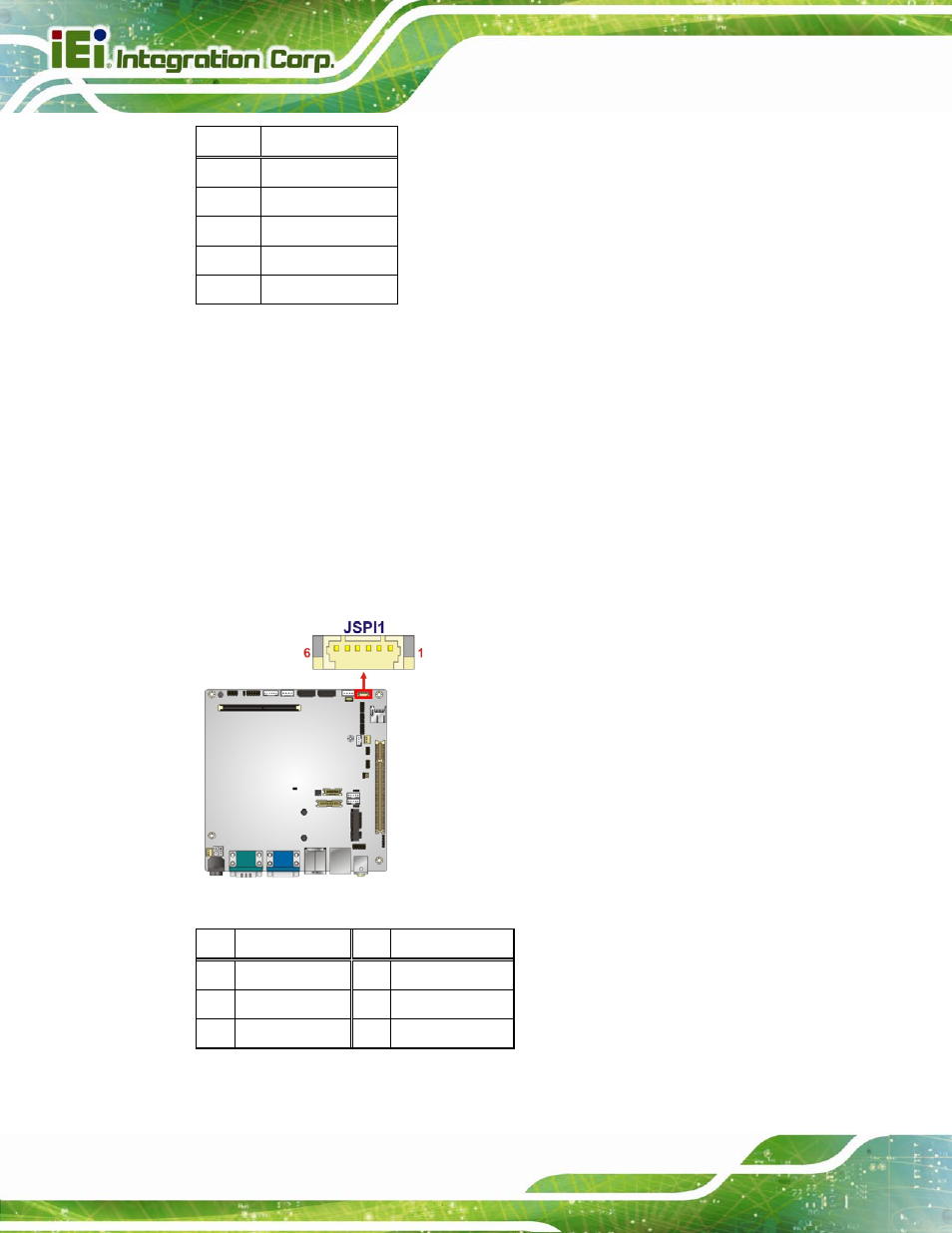

Figure 3-22: SPI Flash Connector Location

Pin Description

Pin Description

1 SPI_VCC

2 SPI_CS

3 SPI_SO

4 SPI_CLK

5 SPI_SI

6 GND

Table 3-22: SPI Flash Connector Pinouts
