KINO-CV-D25501/N26001 SBC

Page 44

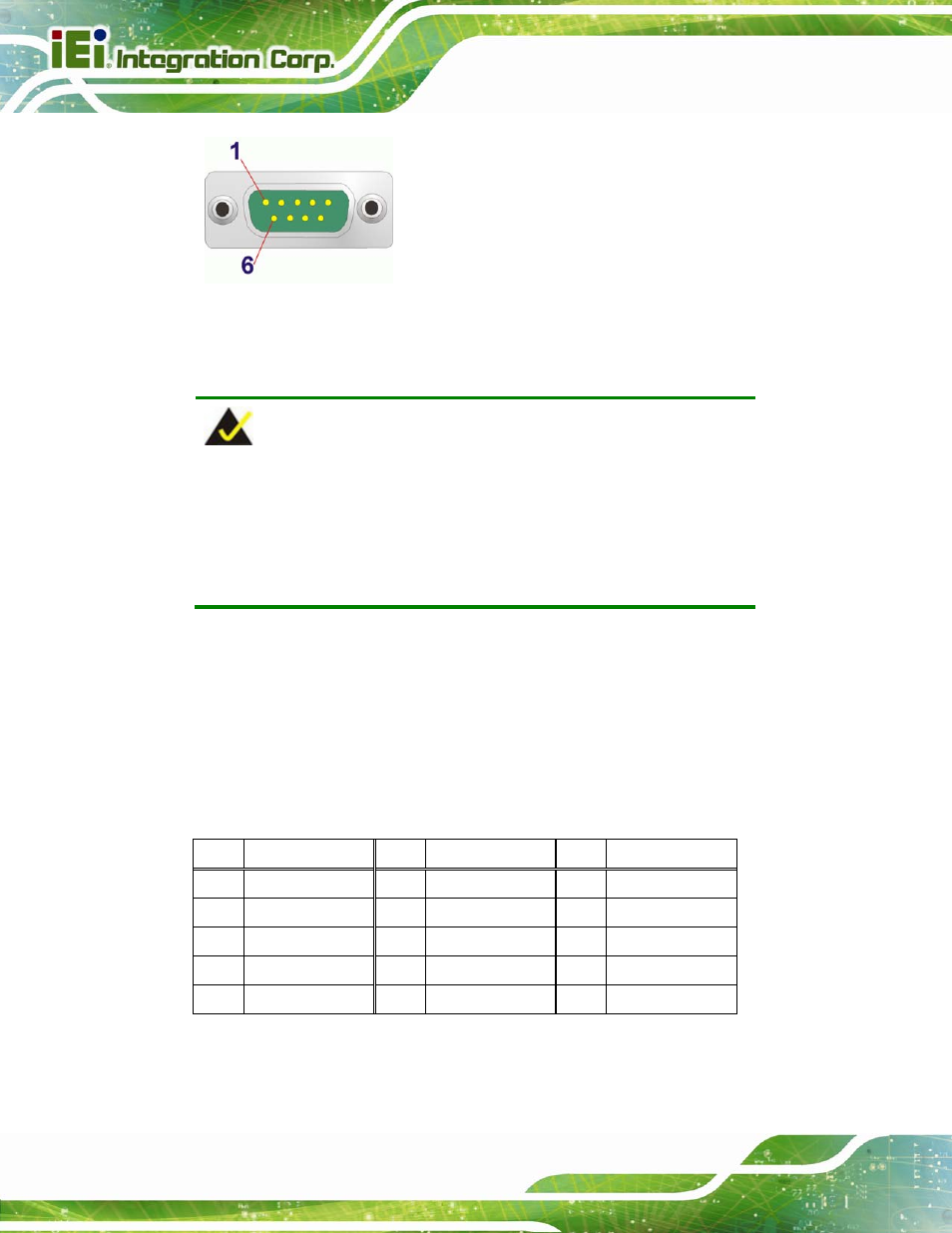

Figure 3-29: Serial Port Pinout Locations

3.3.6 VGA Connector

NOTE:

Due to Intel® GMA driver limitation, the monitor connected to the VGA

connector may not have signal to it after restarting from the graphics

driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey

to switch the screen to CRT mode.

CN Label:

CRT1

CN Type:

D-sub 15-pin female connector

CN Location:

See Figure 3-24

CN Pinouts:

See Figure 3-30 an Table 3-29

The standard 15-pin female VGA connector connects to a CRT or LCD monitor.

Pin Description

Pin Description Pin

Description

1 RED

6 GROUND

11

NC

2 GREEN

7 GROUND

12

SDA

3 BLUE

8 GROUND

13

HSYNC

4 +5V

9 NC

14

VSYNC

5 GROUND

10 GROUND

15 SCL

Table 3-29: VGA Connector Pinouts
