KINO-CV-D25501/N26001 SBC

Page 26

3.2.9 LVDS Backlight Connectors

CN Label:

INV1, INV2

CN Type:

5-pin wafer

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The backlight inverter connectors provide power to LCD panels.

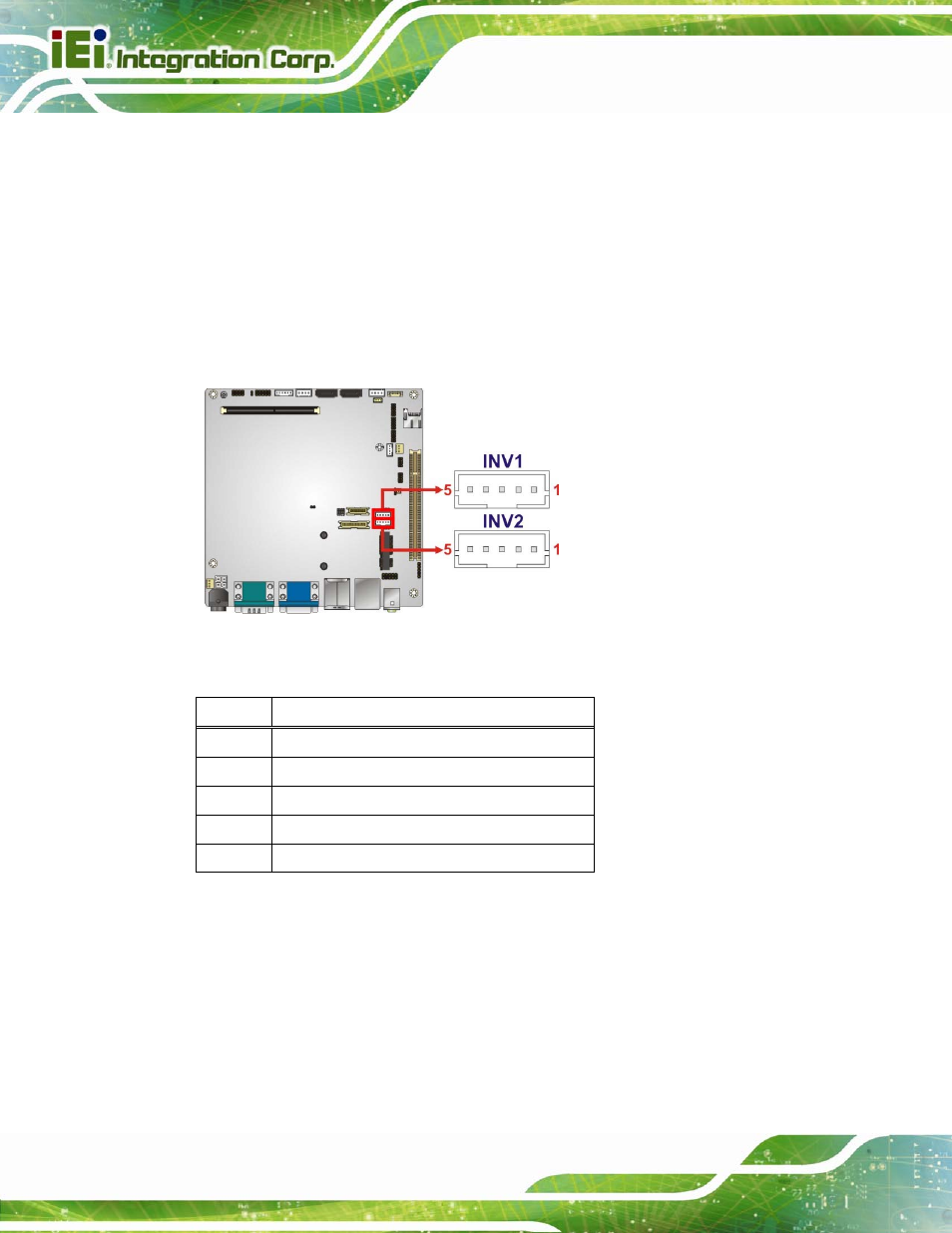

Figure 3-10: LVDS Backlight Inverter Connectors

Pin Description

1

LCD_BKLTCTL

2

GROUND

3

+12V

4

GROUND

5

BACKLIGHT ENABLE

Table 3-11: Backlight Inverter Connector Pinouts

3.2.10 microSD Card Slot

CN Label:

CN7

CN Type:

8-pin microSD slot

CN Location:

See Figure 3-11
