KINO-CV-D25501/N26001 SBC
Page 59
4.7.2 USB Cable Connection
The KINO-CV-D25501/N26001 is shipped with a dual port USB 2.0 cable. To connect the
USB cable connector, please follow the steps below.
Step 1: Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
Step 2: Align the connectors. The cable has two connectors. Correctly align the
ground wire (black) on each cable connector with the ground pin on the
KINO-CV-D25501/N26001 USB connector. See Table 3-23 for the USB
connector pinouts.
Step 3: Insert the cable connectors . Once the cable connectors are properly aligned
with the USB connectors on the KINO-CV-D25501/N26001, connect the cable
connectors to the on-board connectors. See Figure 4-10.

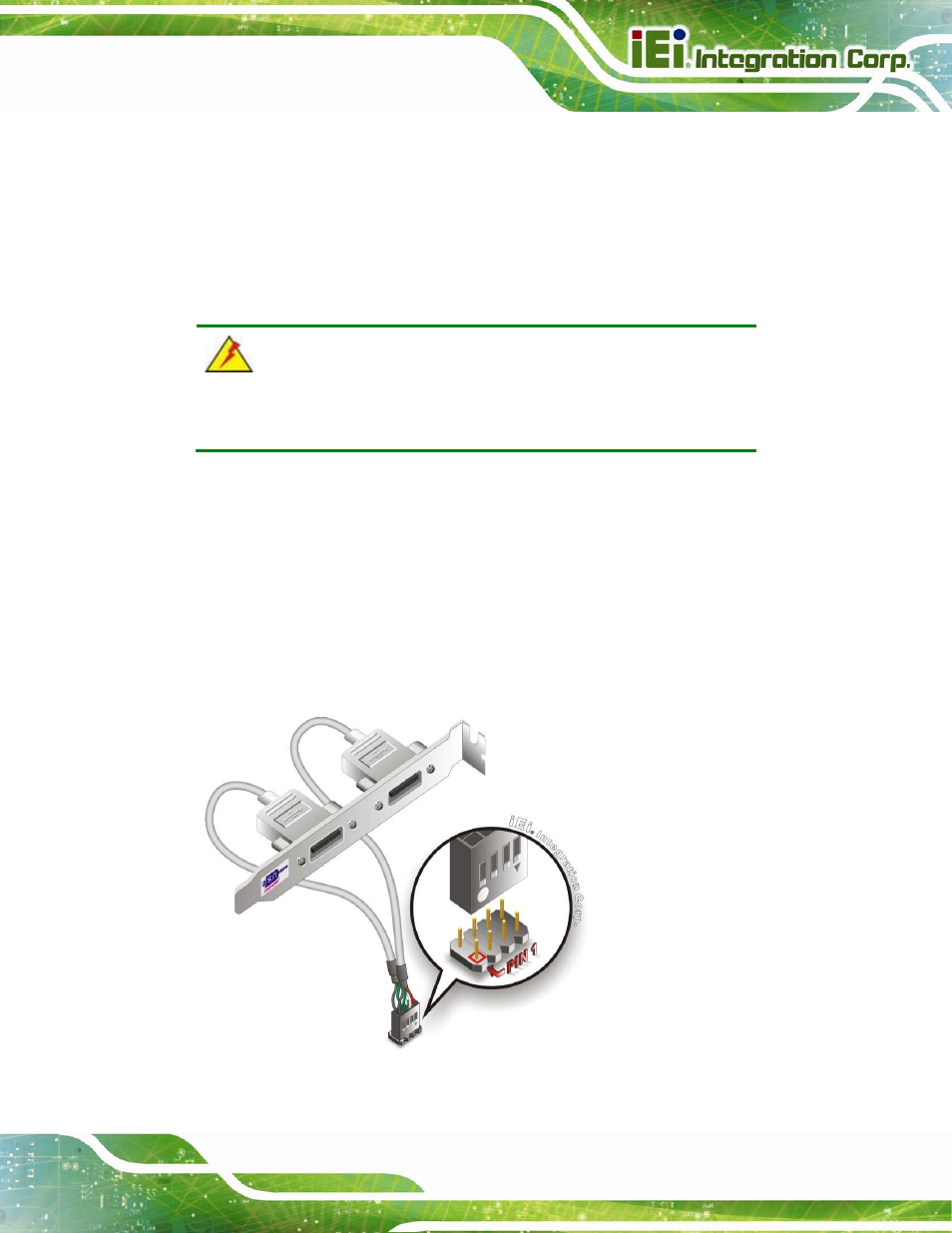

Figure 4-10: Dual USB Cable Connection
