KINO-CV-D25501/N26001 SBC

Page 15

3.1 Peripheral Interface Connectors

Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the

peripheral interface connectors seen in Section 3.1.1.

3.1.1 Layout

The figure below shows the on-board peripheral connectors, rear panel peripheral

connectors and on-board jumpers.

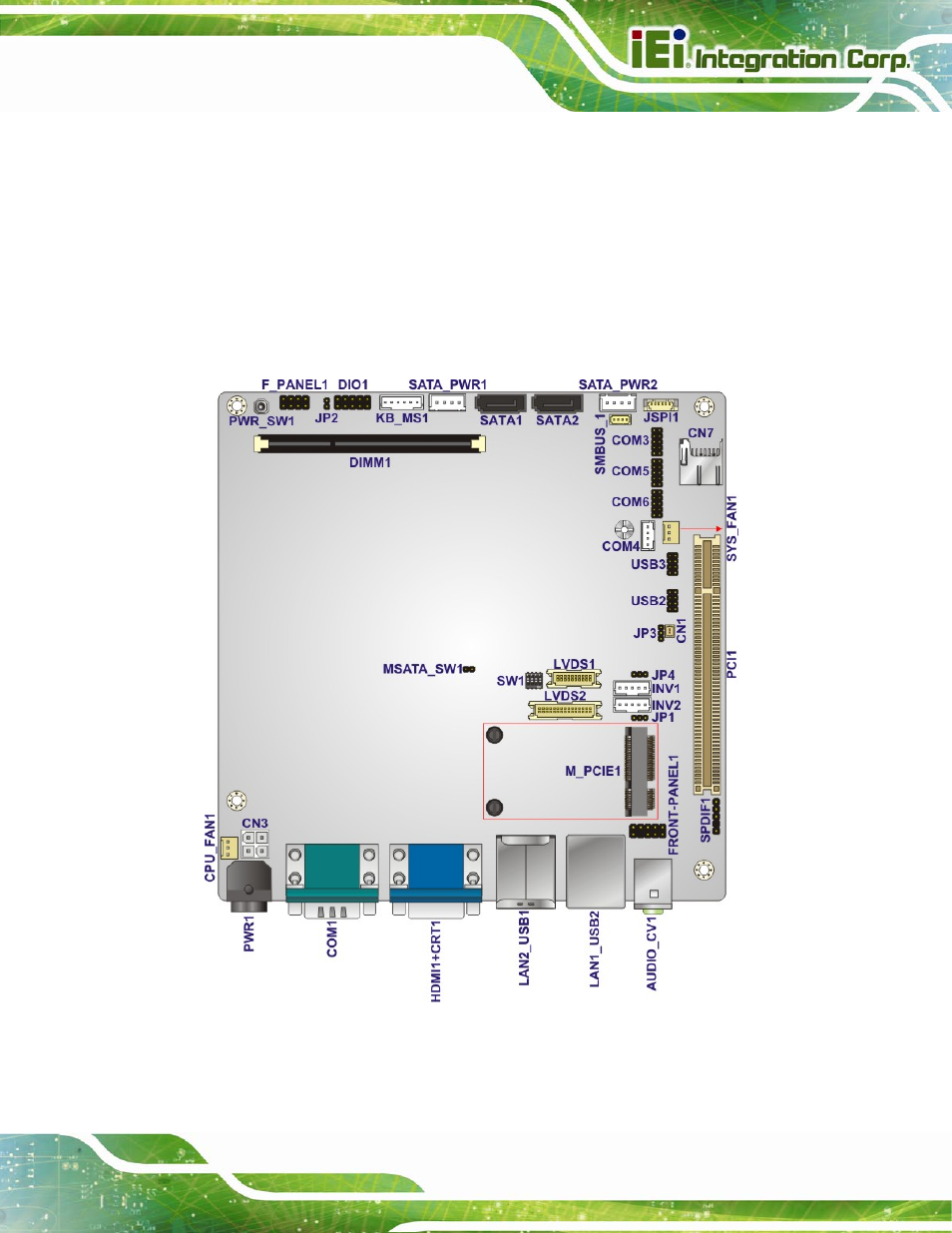

Figure 3-1: Connector and Jumper Locations
