KINO-CV-D25501/N26001 SBC
Page 51
4.5 Jumper Settings

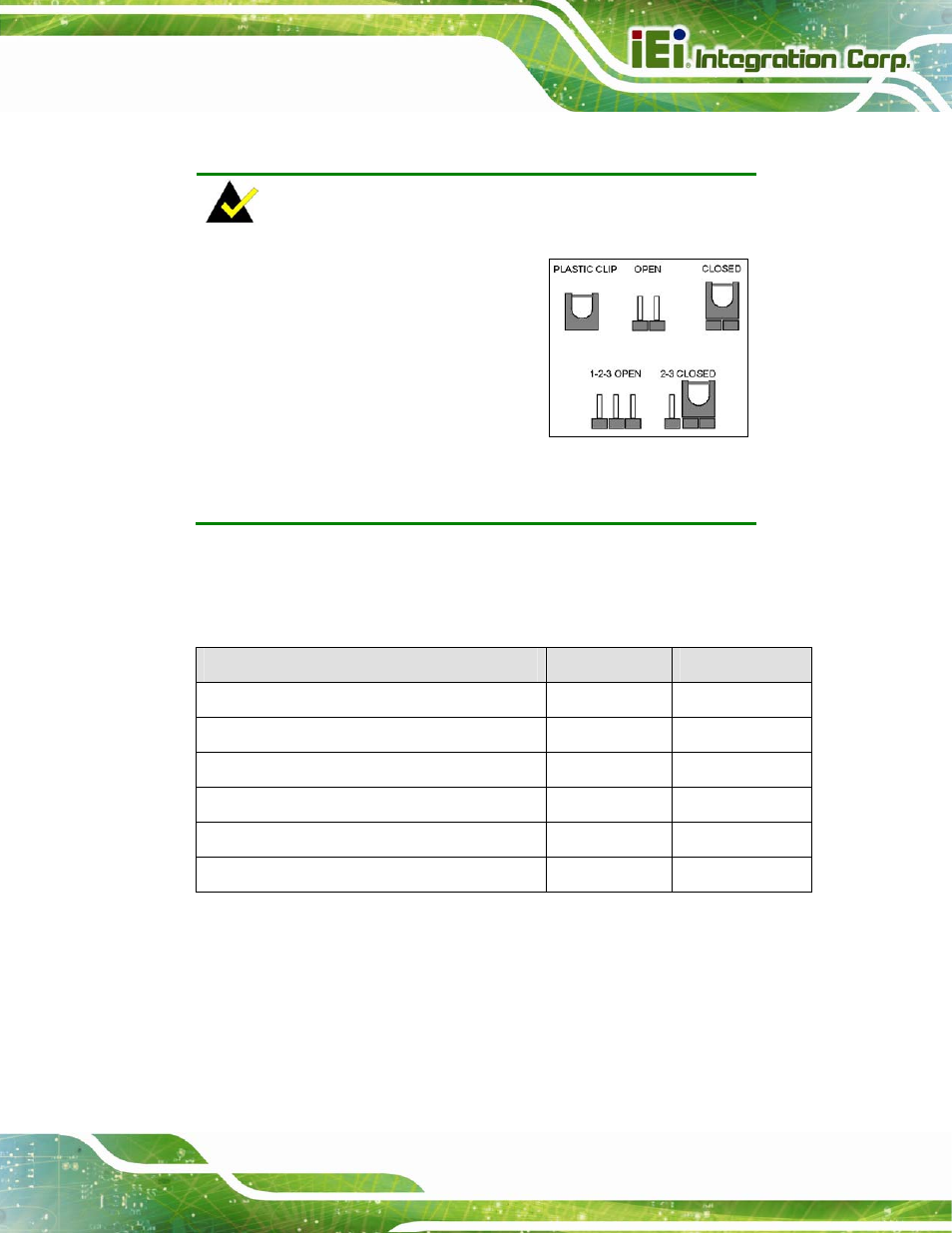

NOTE:
A jumper is a metal bridge that is used
to close an electrical circuit. It consists
of two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
Before the KINO-CV-D25501/N26001 is installed in the system, the jumpers must be set
in accordance with the desired configuration. The jumpers on the
KINO-CV-D25501/N26001 are listed in Table 4-1.
Description Label Type
AT/ATX mode selection JP2 2-pin header
Clear CMOS JP3 3-pin header
LVDS1 voltage selection JP4 3-pin header
LVDS2 voltage selection JP1 3-pin header
LVDS2 resolution selection SW1 DIP switch
PCIe Mini/mSATA mode selection MSATA_SW1 2-pin header
Table 4-1: Jumpers
4.5.1 AT/ATX Mode Selection
Jumper Label: JP2
Jumper Type: 2-pin header
Jumper Settings: See Table 4-2
